INVT iMars MG series grid-tied solar inverters Installation
3.4.2 AC connection of single-phase inverter
OPEN
CLOSE
OPEN
CLOSE
OPEN
CLOSE
OPEN
CLOSE
L
PE
N
L
N
PE

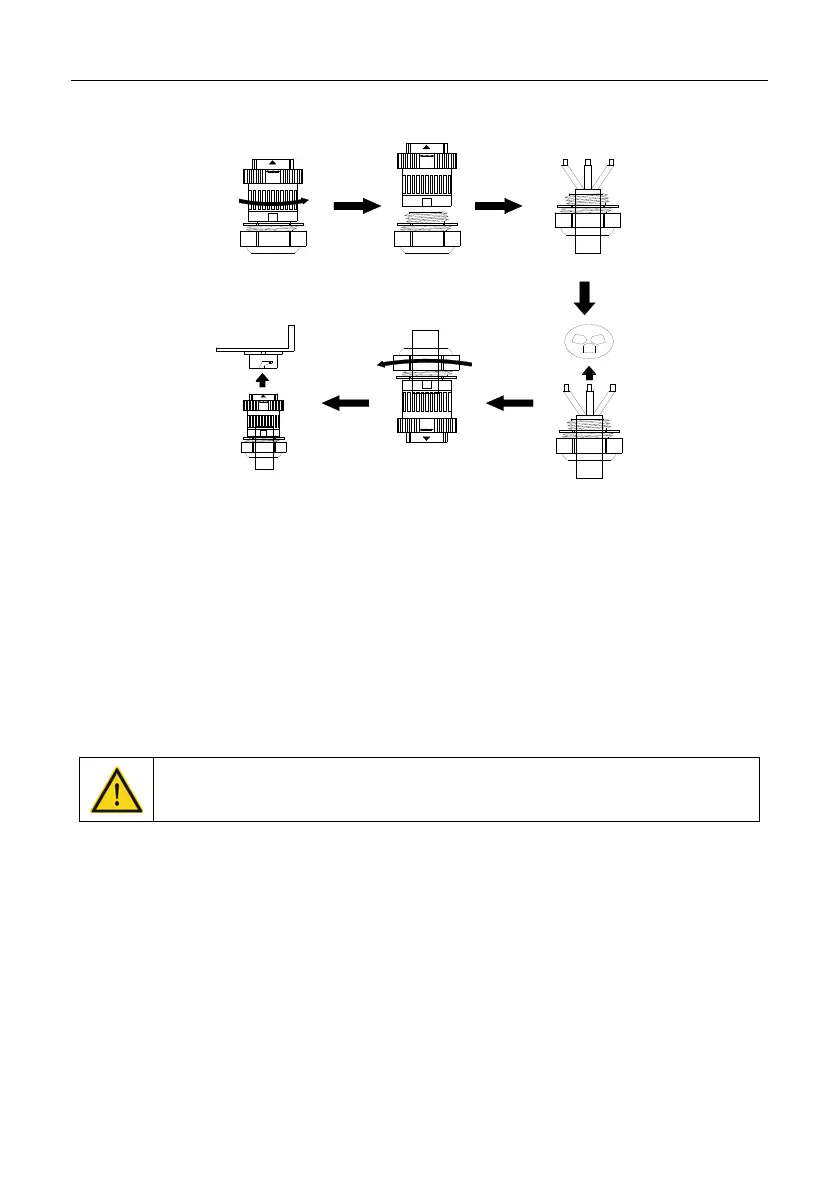

Figure 3.9 AC connection of single-phase inverter
Connection steps of single-phase inverter:
(1) Before connecting the single-phase AC grid cable to the inverter, take lightning and short circuit
protection measures in accordance with the local electrical safety codes;
(2) As shown in Figure 3.9, connect and fasten L, N and PE conductors of the single-phase
common grid to AC terminal, and then connect the terminal to the AC port of the inverter;
(3) Fix and connect the DC output cables of PV board with the matched DC connectors, and then
connect the connectors to the DC port of the inverter.
 Only qualified cables under the local electrical safety laws and regulations are
allowed to connect.
