6A1 – 106 4JB1/4JB1T/4JB1TC/4JG2 - ENGINE
4. Heater Hose
• Connect the heater hose then tighten clip securely.
3. Intake Air Duct
• Connect the air duct then tighten clip securely.
2. Radiator Assembly
1) Install the cushion rubber on both sides.
2) Install the radiator stay
3) Connect the radiator hose upper and lower.
4) Connect the reservoir tank hose.
1. Transmission and Clutch Assembly
2) Clutch
"
Driven Plate Assembly
• Apply multi-purpose with MOS2 type grease to the
driven plate hub spline.
• Use the pilot aligner to install the driven plate
assembly.
Pilot Aligner: 5-5825-3001-0
!
Pressure Plate Assembly
• Tighten pressure plate assembly fixing bolts in
numerical order.
Pressure Plate Fixing Bolt Torque N∙m (kg∙m/lb∙ft)
18 (1.8/13)
• Remove the pilot aligner.
NOTE:
In case a new pressure plate assembly is mounted,
after tightening a pressure plate at the specified
torque, be sure to remove the wiring for protection of
a diaphragm spring.

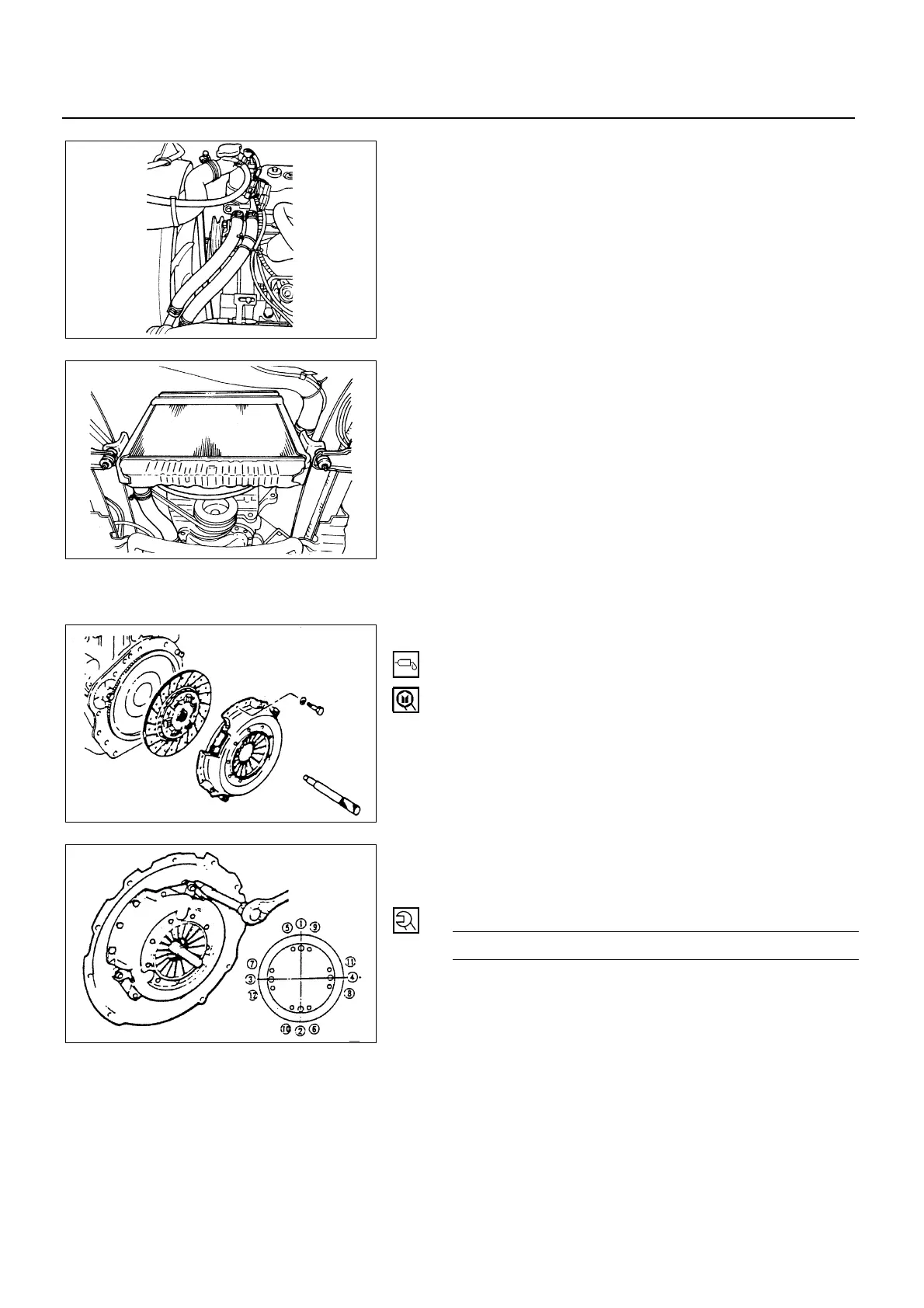

6A1-106-1.tif
6A1-106-2.tif
6A1-106-3.tif
6A1-106-4.tif
