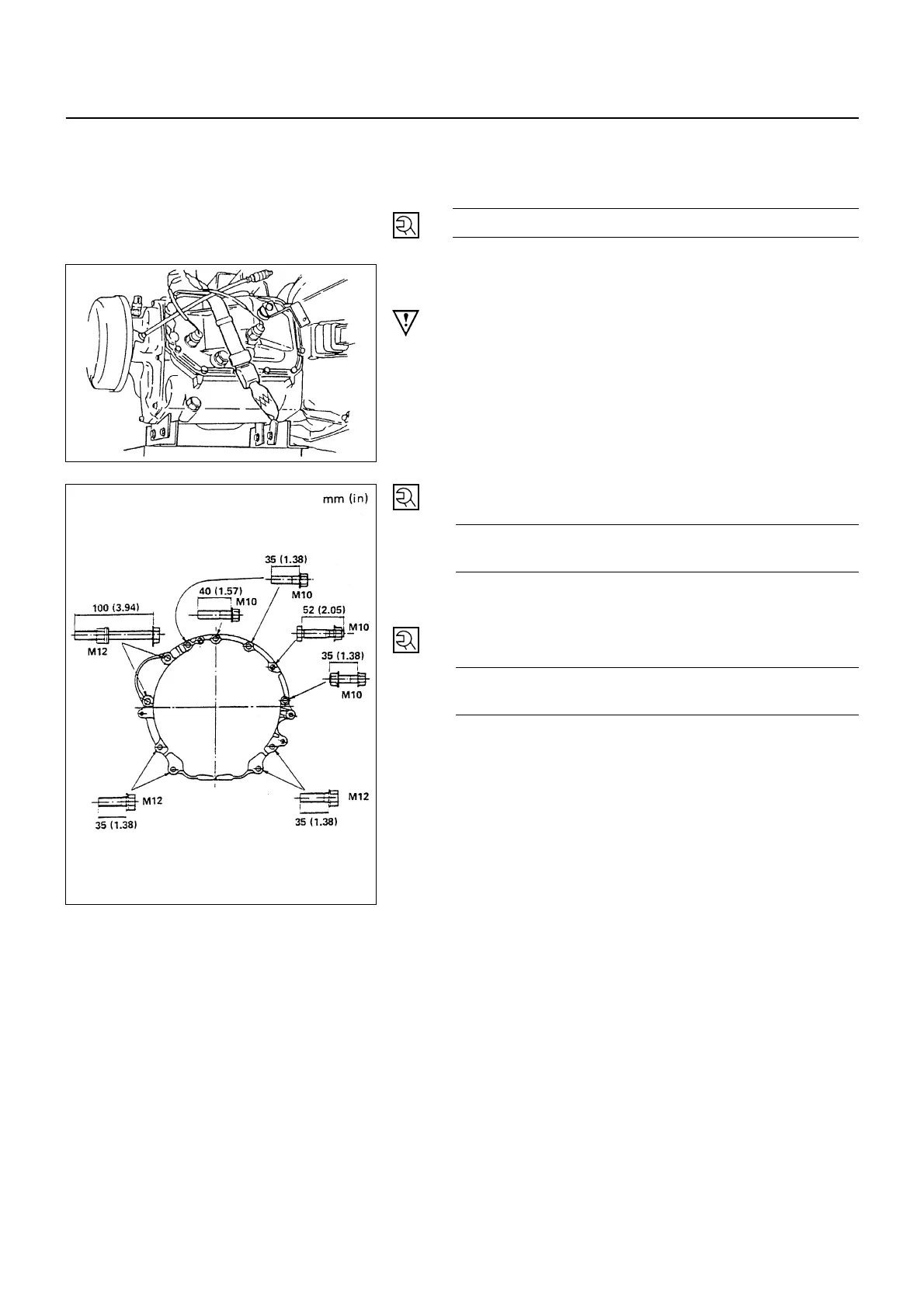

4JB1/4JB1T/4JB1TC/4JG2 – ENGINE 6A1 – 107
1) Transmission
)
Mounting Bracket
Mounting Bracket Nuts Torque N∙m (kg∙m/lb∙ft)
69 (7.0/51)
(
Transmission Assembly
• Support the transmission with mission jack.
CAUTION:
To prevent the falling of the transmission, tie it
securely to the jack with a chain or belt.
• Shift transmission into high gear.
• Align transmission with engine slope.
• Turn output parking brake drum to aid clutch spring
engagement.
Clutch Housing to Flywheel
Housing Bolts Torque N∙m (kg∙m/lb∙ft)
M10 : 46(4.7/34)
M12 : 91(9.3/67)
• Raise engine and transmission up into rear
transmission mount.
Engine Rear Mounting Nuts
and Bolts Torque N∙m (kg∙m/lb∙ft)
M10 : 40(4.1/30)
M12 : 69(7.0/51)
6A1-107-1.tif
6A1-107-2.tif
