Function and Features
Resistance Resistance setting mode selection
10k(Def)/5k 10K or 5K setting mode selection,
select by Left/Right key.
Off Disable or enable this function. Select
by up/down key.
On
The above parameters can be selected through the configuration menu.
1. Press the [Shift]+[P-set]( Menu) to enter the menu.
2. Press the Right Key to select CONFIG and press [Enter] to enter the
configuration menu.
3. Press the Right Key to select the Ext-Ctrl and press [Enter] to enter the
configuration of external analog parameters. When setting every item,
please use the Up/Down Key for selection.
After selecting the Ext-Ctrl as On, exit the Menu. At this time, the Rear
indicator on the VFD status bar will be lighted on and the right corner will
display Analog.

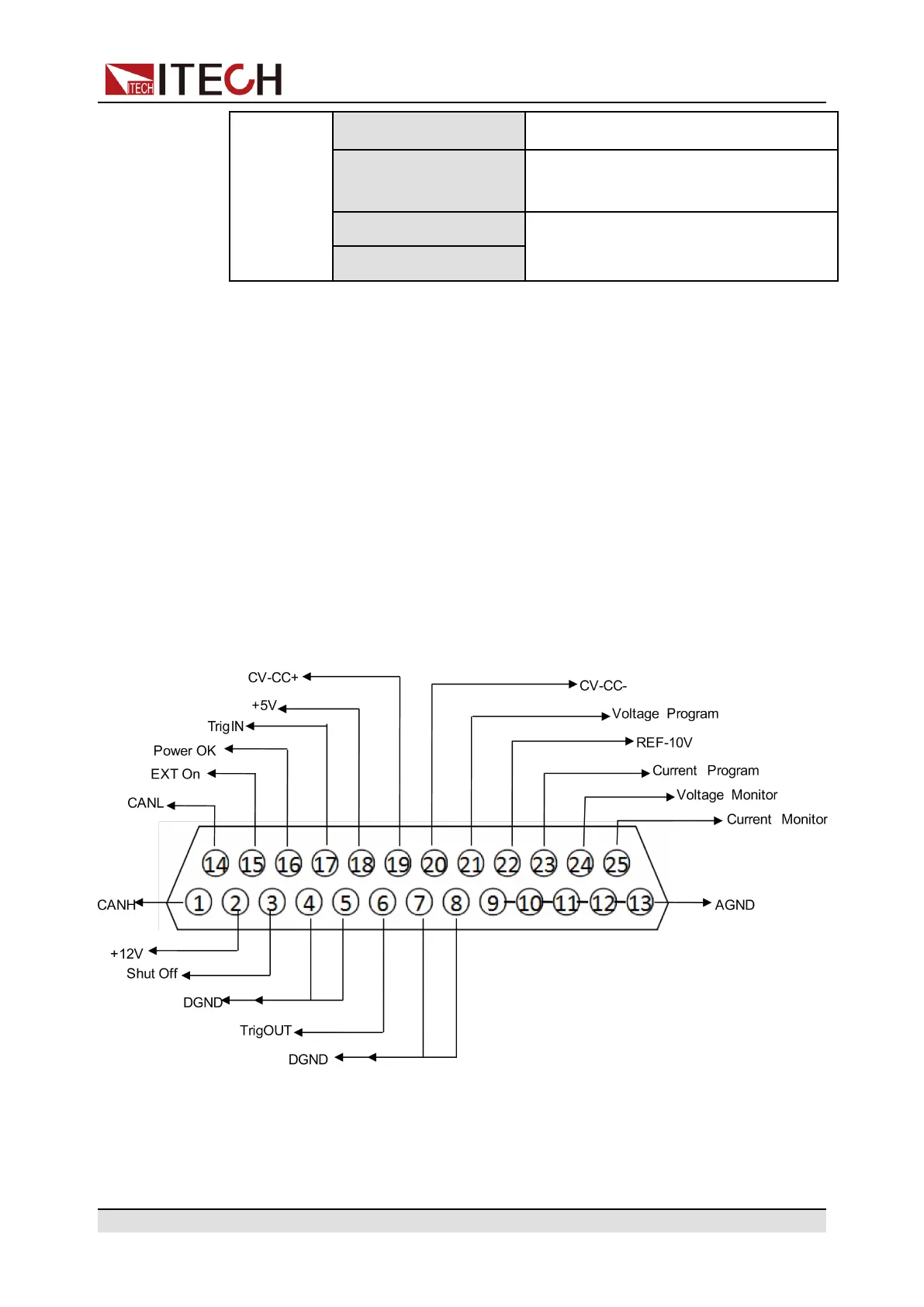

Figure 3–2 DB25 Analogue Interface Description
Copyright © Itech Electronic Co., Ltd.
76
