Function and Features

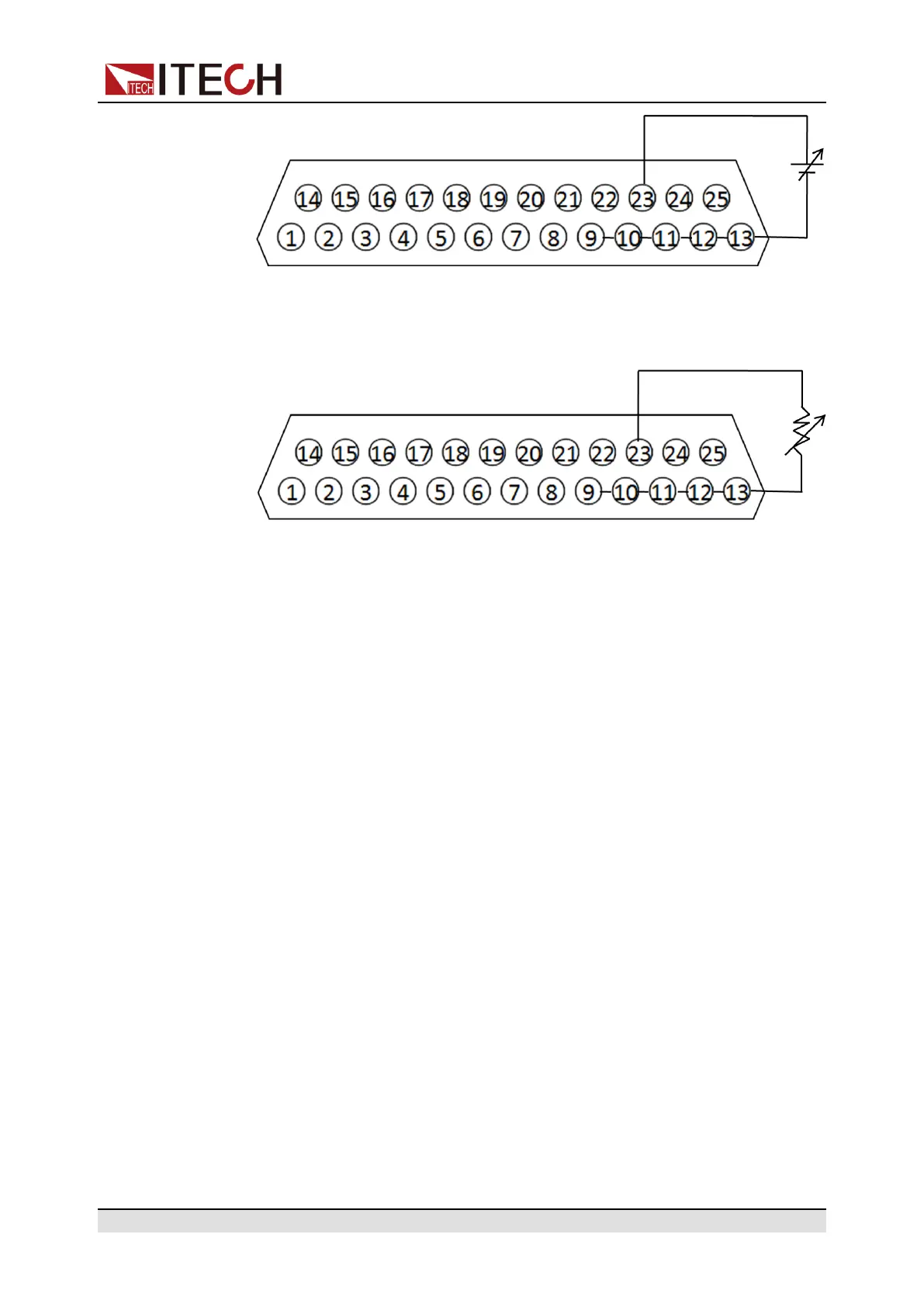

• Resistor Mode
Pin 23 and Pin 13 (GND wire) can be connected to a resistor for setting the
output voltage value of the power supply.
To set the 0~5V/0~10V or 0~5KΩ/0~10KΩexternal analog setting range, the
operations as follows:
1. Select the MENU ( Menu)→CONFIG ( Configure)→Ext-Ctrl ( External
Analog Control).
2. Press the Right Key to select Voltage ( or Resistance).
3. Press the Right Key to select 5V/10V or 5KΩ/10KΩ.
4.
Voltage monitoring
This function enables monitoring of voltage output via Pin 24 or the GND pin ( i.
e., Pin 13), which can be connected to a digital voltmeter ( DVM). To use this
function, the output control should be under the external analog control mode.
The output voltage monitoring range (which reflects the power supply output
voltage from zero to full scale) can be selected from 0-10V or 0-5V. To switch
on the monitoring range setting, the operations as follows:
1. Select the MENU ( Menu)→CONFIG ( Configure)→Monitor (External
monitor mode).
2. Press the Right Key to select the output voltage monitoring range (0~10V or
0~5V).
The connection setting of digital voltmeter is shown below.
Copyright © Itech Electronic Co., Ltd.
81
