Function and Features
Current monitoring
This function enables monitoring of current output via Pin 25 or the GND pin (i.
e., Pin 13), which can be connected to a digital voltmeter (DVM). To use this
function, the output control should be under the external analog control mode.
The output current monitoring range (which reflects the power supply output
current from zero to full scale) can be selected from 0-10V or 0-5V. To switch on
the monitoring range setting, the operations as follows:
1. Select the MENU ( Menu)→CONFIG ( Configure)→Monitor (External
monitor mode).
2. Press the Right Key to select the output current monitoring range (0~10V or
0~5V).

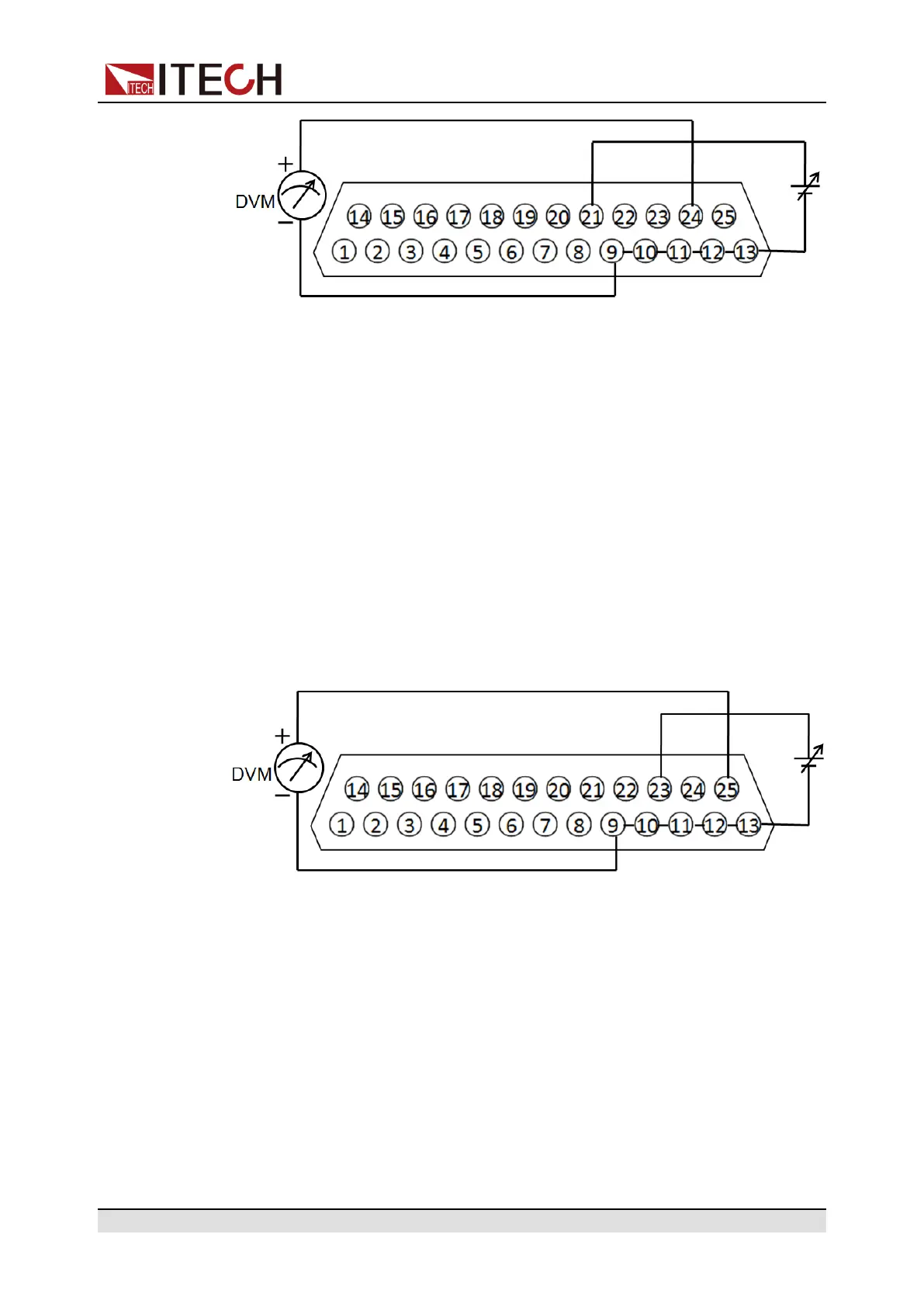

The connection setting of digital voltmeter is shown below.
