Quick Reference
500V 800V 1500V 2250V Height
(with bare
machines
overlap-
ped)
Height
(consti-
tuting
cabinet)
IT8126-500-630 IT8126-800-
420
IT8126-1500-
210
IT8126-2250-
140
21U
IT8144-500-720 IT8144-800-
480
IT8144-1500-
240
IT8144-2250-
160
24U
Naming rules for each series of model are as follows: IT 8XXX-YYY-ZZZ,
wherein, XXX means rated power; YYY means rated voltage; and ZZZ
means rated current.

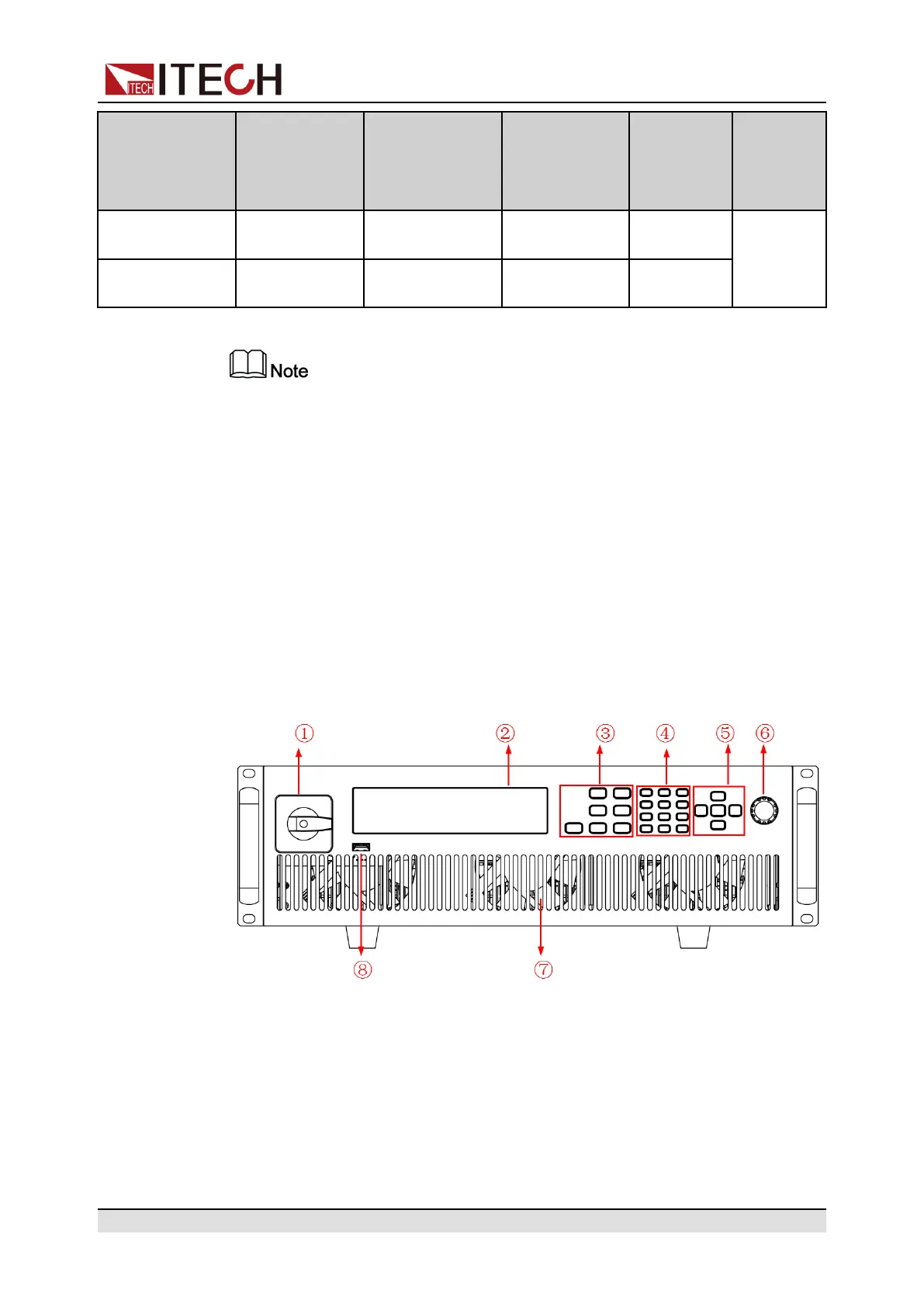

1.2 Front-Panel Overview
For the IT8000 series Regenerative DC Electronic Load, all front panels of the
3U model are the same, and the operation panels of other models are the same
as those of the 3U model. The following is the front panel schematic of the 3U
model.
3U Model
1 Power On/Off switch
2 Vacuum fluorescent display
(VFD)
3 Function and composite keys
4 Numeric and composite keys
5 Up, down, left, and right cursor navigation
keys and Enter key
6 Push-on knob
7 Vent hole
8 USB storage device connection port
Copyright © Itech Electronic Co., Ltd.
