CHASSIS MODIFICATIONS
2-19
DAILY 4x4
Print 603.93.761 Base - May 2007
Modifying the Rear Overhang
2.6.2 Traditional towing hooks
S) Choice of hook for traditional trailers
The reference dimension for choosing the type of h ook is defined by value D calcu lated as defined below.
116773
Figure 2.4

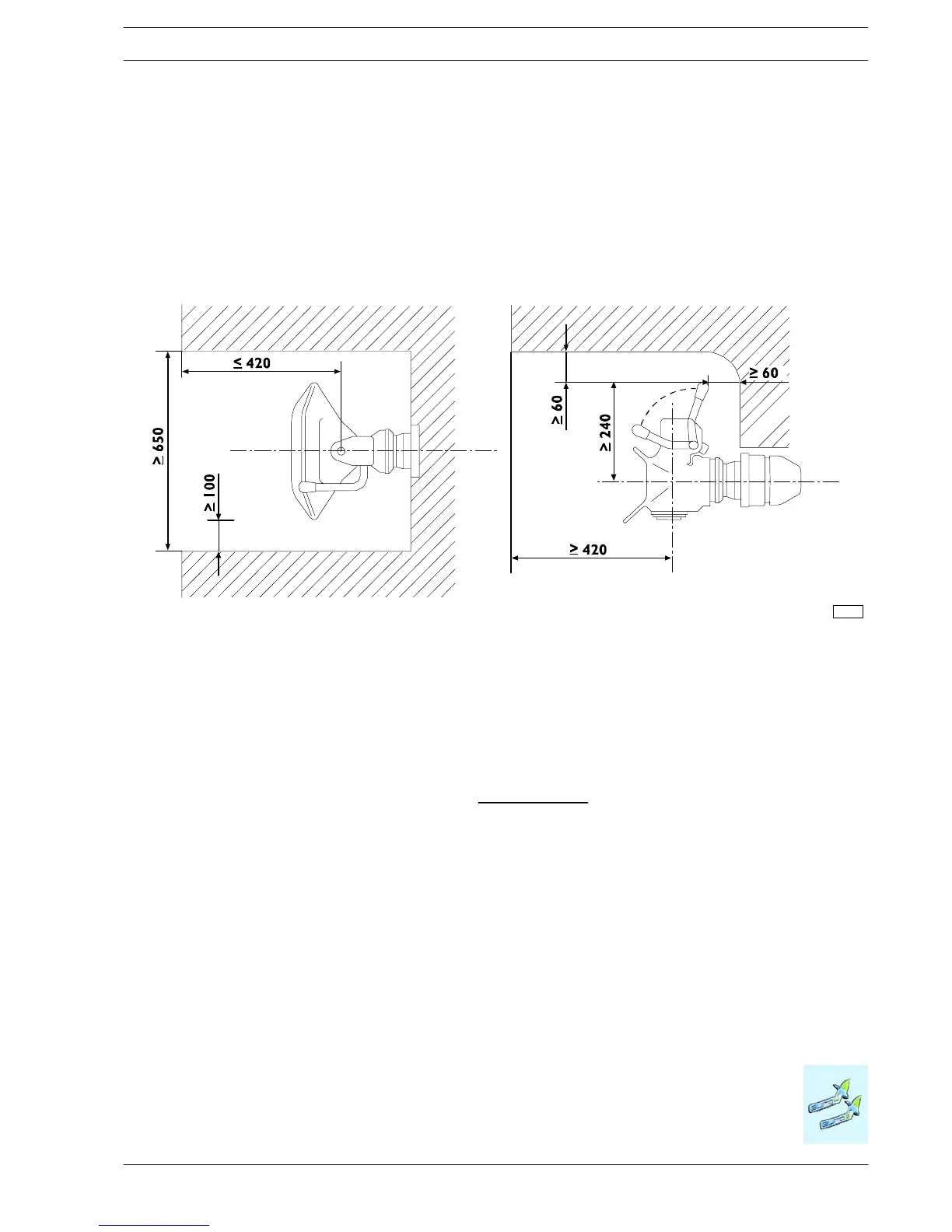

Free area for towing hooks
A towing hook may be fitted, without obtaining prior approval only on crossmembers provided for this purpose and to vehicles
on which IVECO provides for a towin g hook to be installed.
The installation of a towing hook on vehicles which IVECO does not provide a towin g hook installation then au thorisation from
IVECO must be obtained before any installation is carried out.
The towing hook must be chosen on the basis of the following typical values:
TxR
(T + R)
D = 9.81 x
D = Representative value of the hook class (kN).
T=Maximummassoftractor,int.
R = Maximum mass of trailer, in t.
