CHASSIS MODIFICATIONS
D
AILY 4x4
Base - May 2007 Print 603.93.761
Electrical System: Modifications and Drawing-Off Power
2.16.4 Current drawing
Precautions:
The points where current can be drawn and t he instruc tions to be followed are described below.
Protection fuses MUST be used and fitted next to the point where the power is taken.
The added cables shall be protected by running them inside special sheathes or corrugated pipes. They shall be installed in accordance
with the instructions given in paragraph 2.16.5.
114081

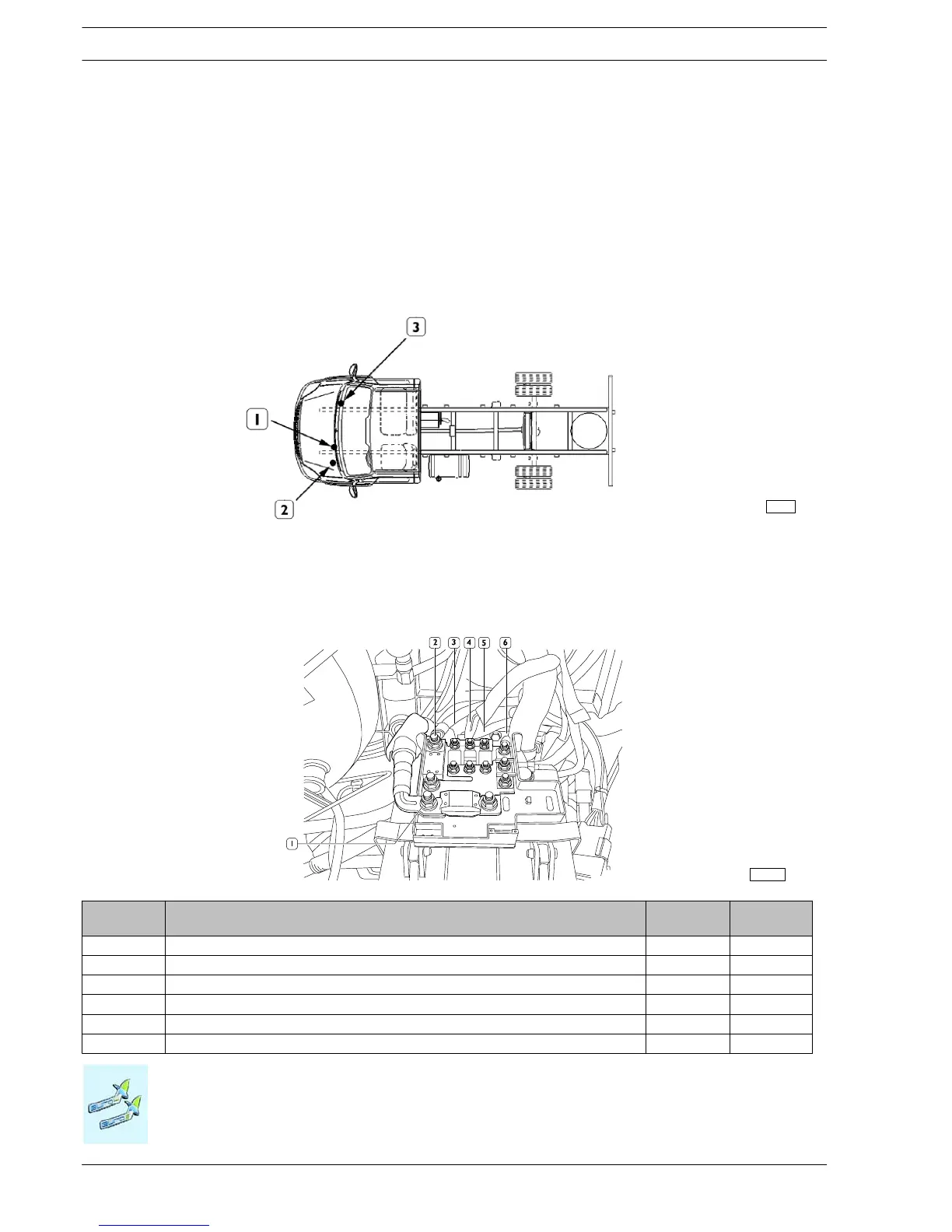

1. Body builders. node for power take-off (engine compartment, on battery) - 2. Passage of wires between cab/engine
compartment - 3. Body builders’ connector (cab interior)
Figure 2.36
CBA voltage supply (on battery)
Figure 2.37
107635
Ref. Function
Fuse
range
Sect.
1 Positive +30 for alternator motor 500 50
2 Positive for engine opening central unit ”CVM” 150 35
3 Positive +30 for CPL - Dashboard control unit secondary loads 70 10
4 Positive +30 for CPL - Dashboard control unit primary loads 50 6
5 Positive +30 for box OPT 70 10
6 Positive +30 - Wiring for body builders’ interface - -
