CHASSIS MODIFICATIONS
D
AILY 4x4
Base - May 2007 Print 603.93.761
Modifying the Rear Overhang
2.6.3 Hook types
S) Ball hooks
In fitting the ball h ook, in accordance with the manufacturer’s instructions, it is n ec essary to observe the guidelines laid down
by the national and international regulations (e.g., EC Directives).
If required, th e installer w ill need to present th e necessary documentation t o comply w ith th e requirements of th e law.
The automatic hook for the truck version can also be fitted to the same crossmembers provided for the ball hook.
120361

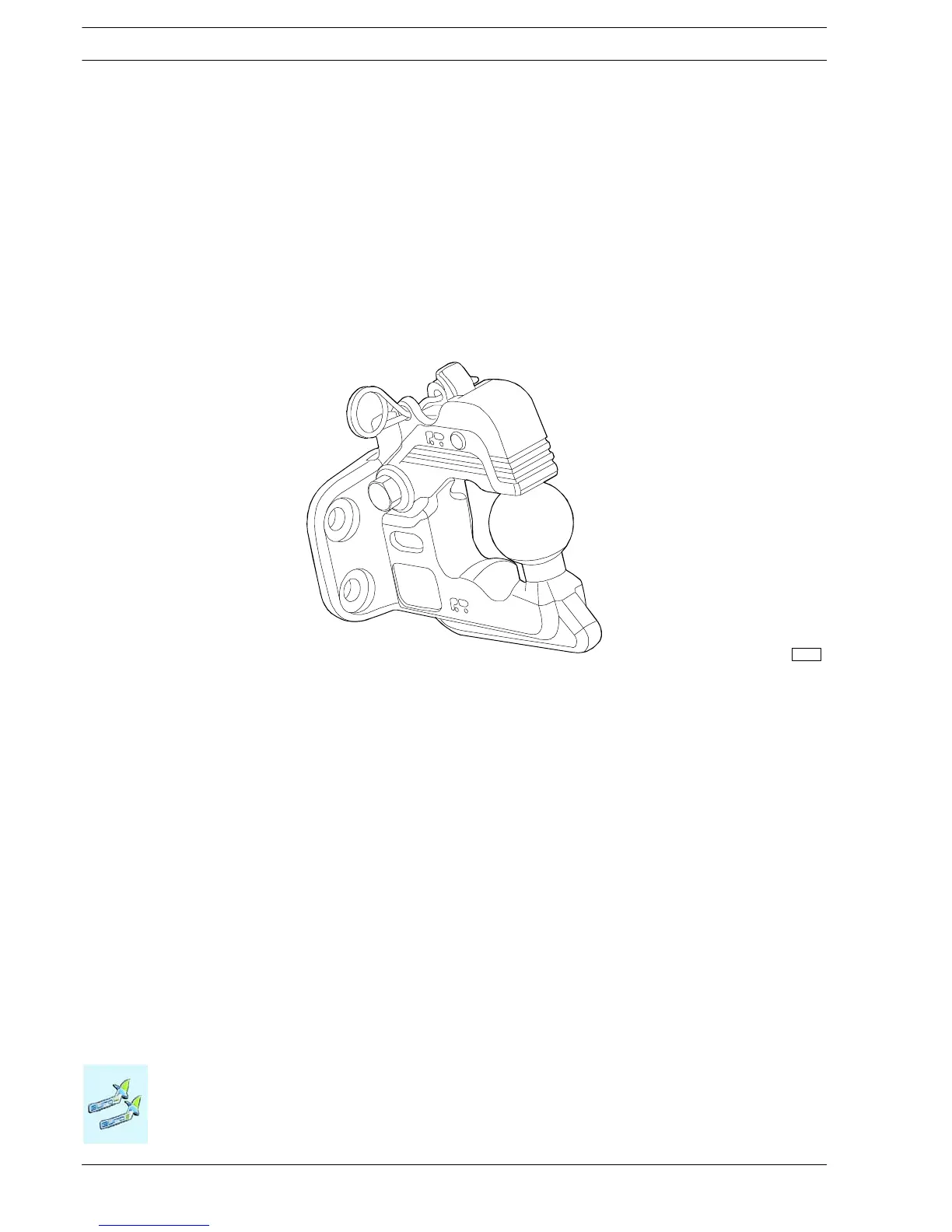

Figure 2.6
S) Pin hooks (automatic)
These are to be fitted on the truck version, su bject to using a suitable cross member. Unless supplied directly by I VE CO, they
will both n eed to have type approval in compliance with current standards. They must be in stalled according to the instructions
provided by the respective manufacturers.
13-Pole connector
If not already fitted by IVECO, it can be retro fitted following the instructions given in point 2.16.7.
2.6.4 Lowered Rear Cross Member
If the type of trailer used requires that the tow hook be positioned lower than originally intended, IVECO may issue authorisation
for the original cross member to be lowered or for an additional c ross member (of the original type) to be fitted in a lower position.
Figure 2.7 s hows an example.
The installation of the new cross member in its new position must be c arried out in the same manner as before, using the same
type (diameter and class) of bolt.
