CHASSIS MODIFICATIONS
2-51
DAILY 4x4
Print 603.93.761 Base - May 2007
Electrical System: Modifications and Drawing-Off Power

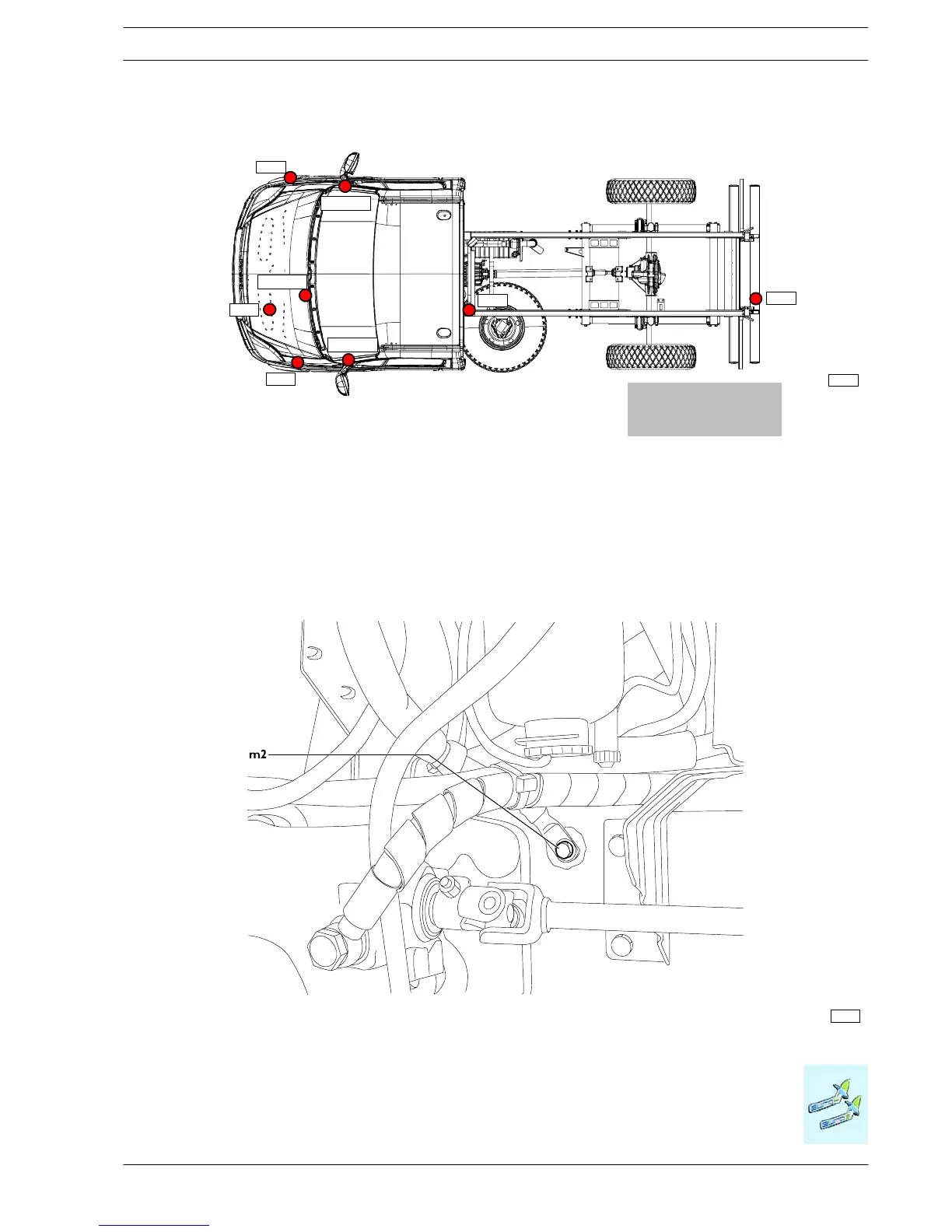

Figure 2.20
GROUND POINTS AVAILABLE ON THE VEHICLE
m2 . left chassi s side me m ber engine comp ar tm e nt ground - m3 +m s 3. engine compa r tm e nt ground under the power brake
m4 . engine compar tm e nt ground next to the front right headla m p - m5. engine compa rtment ground next to the left right
headlam p - m6+ms6. right-side cab interior on the dashb oa rd carr ie r - m7+m s 7 . left side cab interi or on dashb oa rd carr ie r
m8. Earth on frame behind cab - m9. Earth on left rear crossmembe r
120364
m = power grounds
ms = signal grounds
m4
m6+ms6
m3+ms3
m2
m5
m7+ms7
m9
m8
Figure 2.21
m2. Left frame rail engine compartment earth
120381
