CHASSIS MODIFICATIONS
2-67
DAILY 4x4
Print 603.93.761 Base - May 2007
Electrical System: Modifications and Drawing-Off Power
A distribution and protection con trol unit ( CBA) is installed on the battery. This is fitted with a power take-off for body builders.
The body builders’ node is installed on stud no. 6 of the CBA.

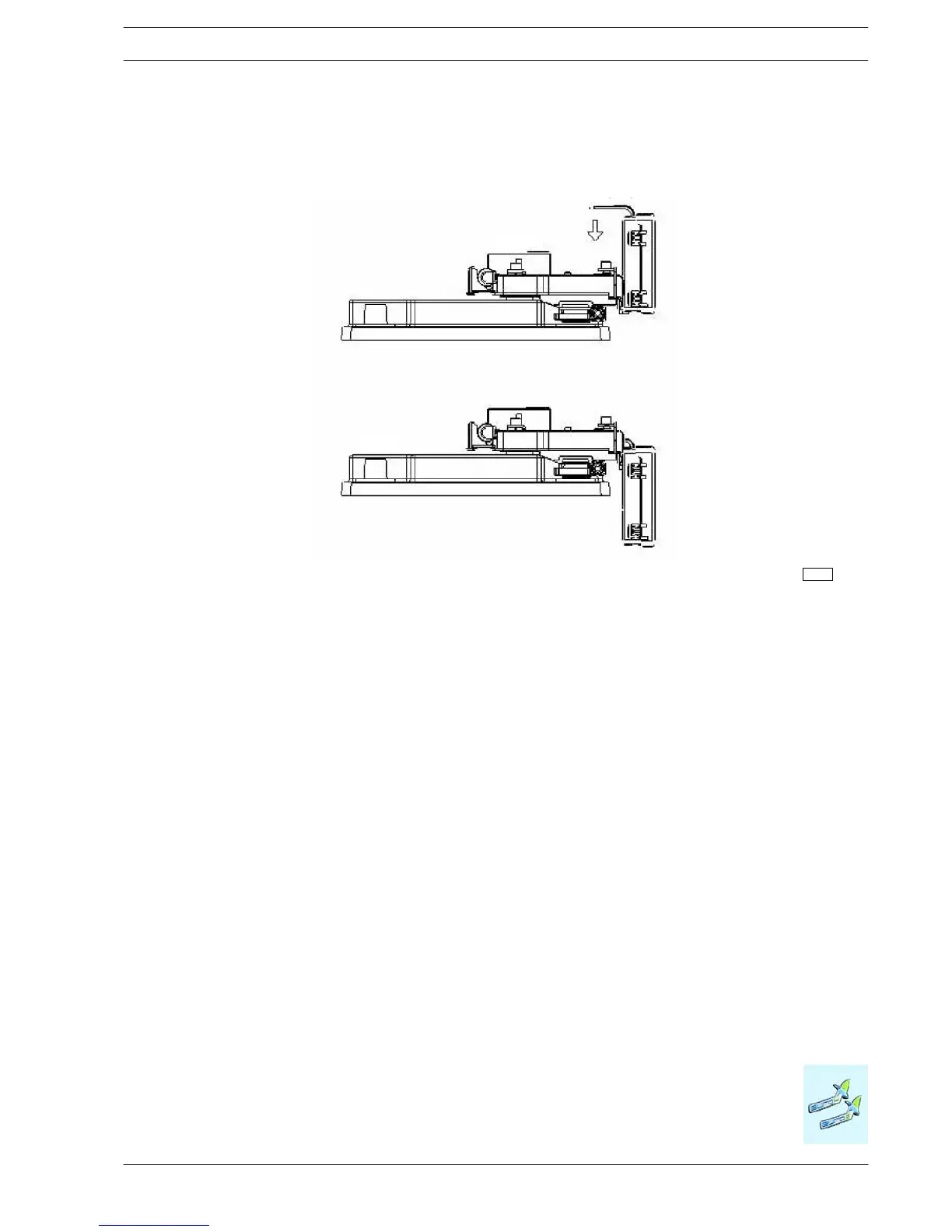

Figure 2.38
BATTERY
BATTERY
CBA
CFO
CBA
116173
Installation precautions
1) Do not lose any parts when overturning the component.
2) Fuses must not be removed from their position during installation.
3) Fit terminals on the studs and secure with nuts (M5 flanged nut, self-locking nut, etc.). Tighten the nuts to torque (4 min - 6
max Nm)
4) Then secure the CFO (Centralina Fusibile Opzionale - optional fuse unit) to the CBA control unit, taking care to fit the hole
in the strip over the stud (M8 flanged nut, self- locking nut, etc.) of the battery terminal (built into the CBA) and tighten the nut
to the required torque ( 8.8 min - 13.2 max Nm).
