CHASSIS MODIFICATIONS
2-69
DAILY 4x4
Print 603.93.761 Base - May 2007
Electrical System: Modifications and Drawing-Off Power

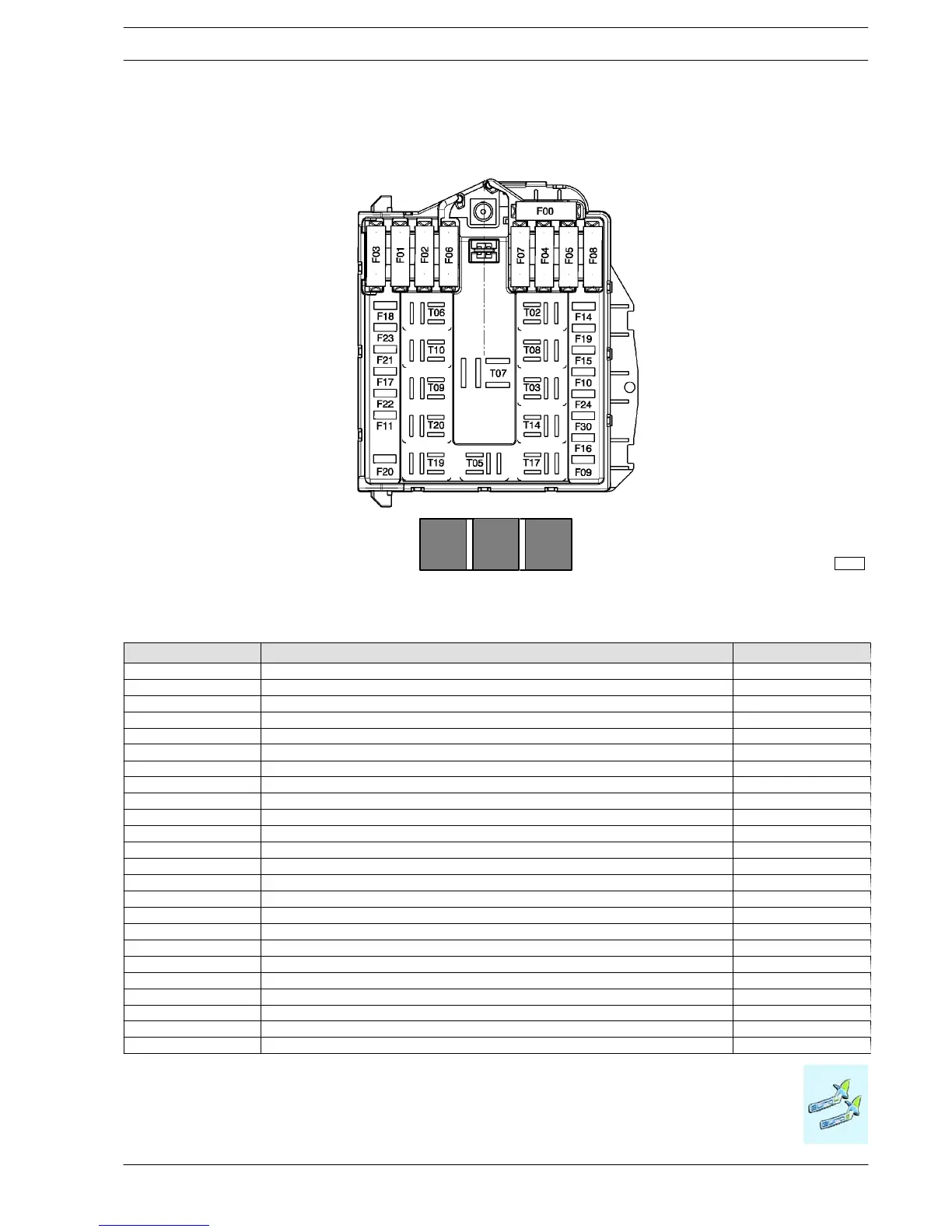

Fuse and relay box in the engine compartment (CVM)
Figure 2.40
T27 T26 T25
114179
Table 2.20
Fuse Utilization Rated capacity
F-0 Ignition spark plugs 60 A
F-1 Not used 40 A
F-2 Not used 30 A
F-3 Not used 30 A
F-4 Siren 30 A
F-5 Ignition switch 30 A
F-6 Fan electromagnetic coupling (Baruffaldi) 20 A
F-7 Side lights 20 A
F-8 Heater or air conditioner fans 30 A
F-9 Windscreen washer 20 A
F-10 Warning horn 7.5 A
F-11 EDC 16 (secondary loads) 10 A
F-14 Right high-beam headlight 7.5 A
F-15 Left high-beam headlight 7.5 A
F-16 EDC 16, T02, T14 auxiliary heater 5A
F-17 EDC 16 (primary loads) 15 A
F-18 Not used 10 A
F-19 Fan electromagnetic coupling (Baruffaldi) 5A
F-20 Fuel filter heater 25 A
F-21 Fuel pump 15 A
F-22 EDC 16 (primary loads) 25 A
F-23 Auxiliary heater 10 A
F-24 PTO 15 A
F-30 Left an d right fog light 15 A
