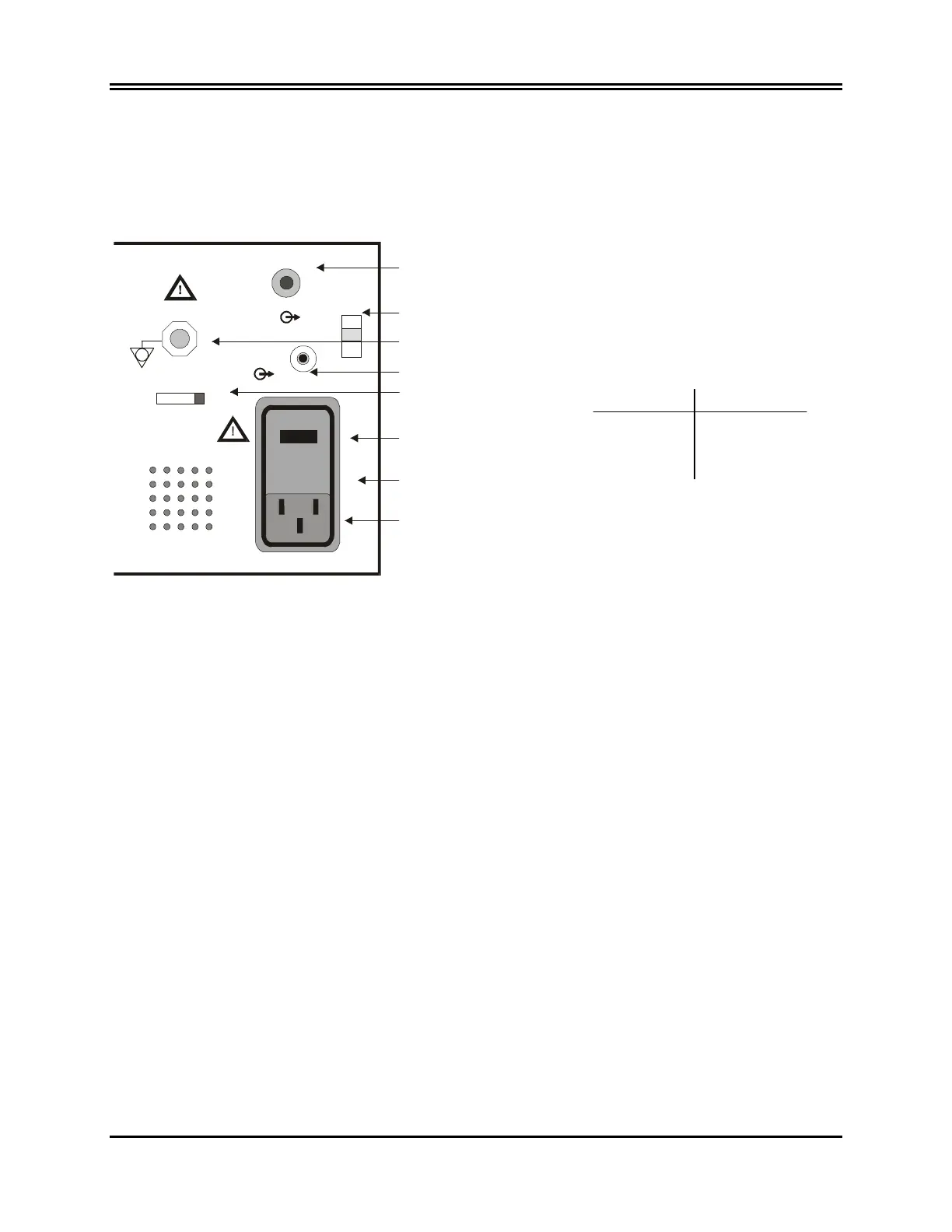

MONITOR DESCRIPTION
ECG X1000: This is an ECG analog wave output.
TRIGGER POLARITY SWITCH: Selects output trigger polarity.
PHYS. TRIG.
OUTPUT
TRIGGER
POLARITY
NEG POS
QRS
VOLUME
MAX
OFF
MIN
REFERS TO
OPERATOR'S MANUAL
X 1000
ECG
85VA 50/60Hz
120 Vac
QRS Volume
Control
ECG Output
(¼" stereo jack)
Tip=ECG X1000
PEQ Ground
Voltage Selection
wheel
Fuse
(Beneath Panel)
Power Input
Trigger Output/BNC
Selects Output
Trigger Polarity
Fuse rating
100V ⏐ 120V 220V ⏐ 230V
T 1.6 Amp T 1.0 Amp
250V 250V
5mm x 20mm 5 mm x 20 mm
Model 101R/NR Service Manual
11
