RECORDER OPERATION
18 Model 101R/NR Service Manual
RECORDER OPERATION
101R only
Changing Paper
Replace the roll of thermal paper as follows. (Recorder paper is Ivy P/N: 590035)

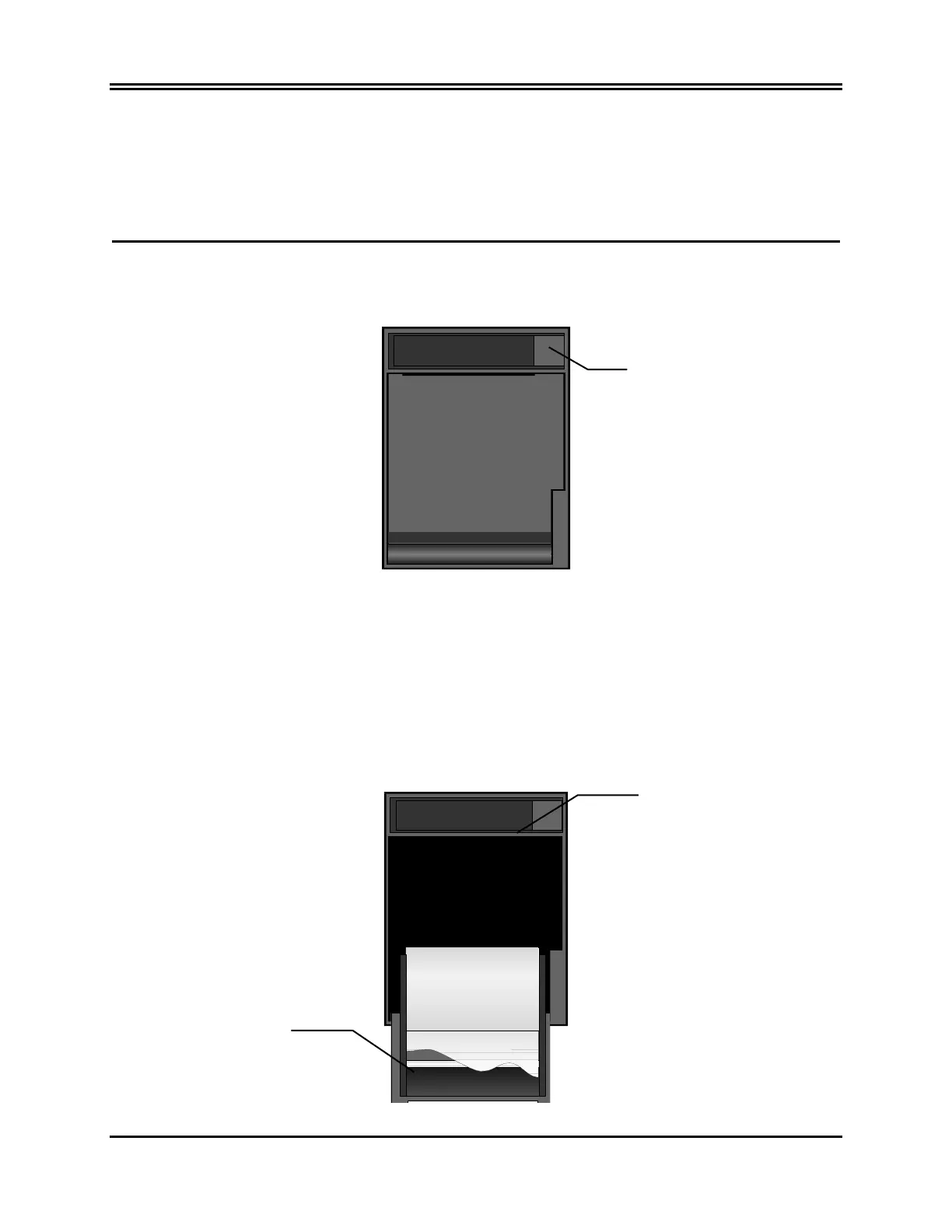

1. Press the paper eject button to open the door at the front of the recorder.
Press Here
If the door does not open completely, pull it toward you until it is completely open.
2. Reach in and remove the spent paper core by pulling it gently toward you.
3. Place a new paper roll between the two round tabs of the paper holder.
4. Pull some paper from the roll. Make sure the sensitive (shiny) side of the paper faces the print head. The
shiny side of the paper normally faces inside the roll.
5. Align the paper with the pinch roller on the door.
Print
Head
Pinch
Roller
