ECG MONITORING
Patient Connections
To ensure compliance with both safety and performance specifications, use the patient cables supplied by Ivy
Biomedical Systems (see Accessories).
Use only high quality silver/silver-chloride electrodes or equivalent.
Use the following procedure for ECG monitoring:
1. Prepare each electrode site and apply the electrodes.
2. Connect the patient cable to the monitor's front panel ECG input.
3. Attach the leads to the electrodes.
4. Use the procedures described in the following sections for alarm limit settings, lead selection, amplitude
adjustment, and enabling or disabling the filter.
ECG Waveform Amplitude (Size)
Use the following procedure to adjust the amplitude (size) of the displayed ECG waveform.

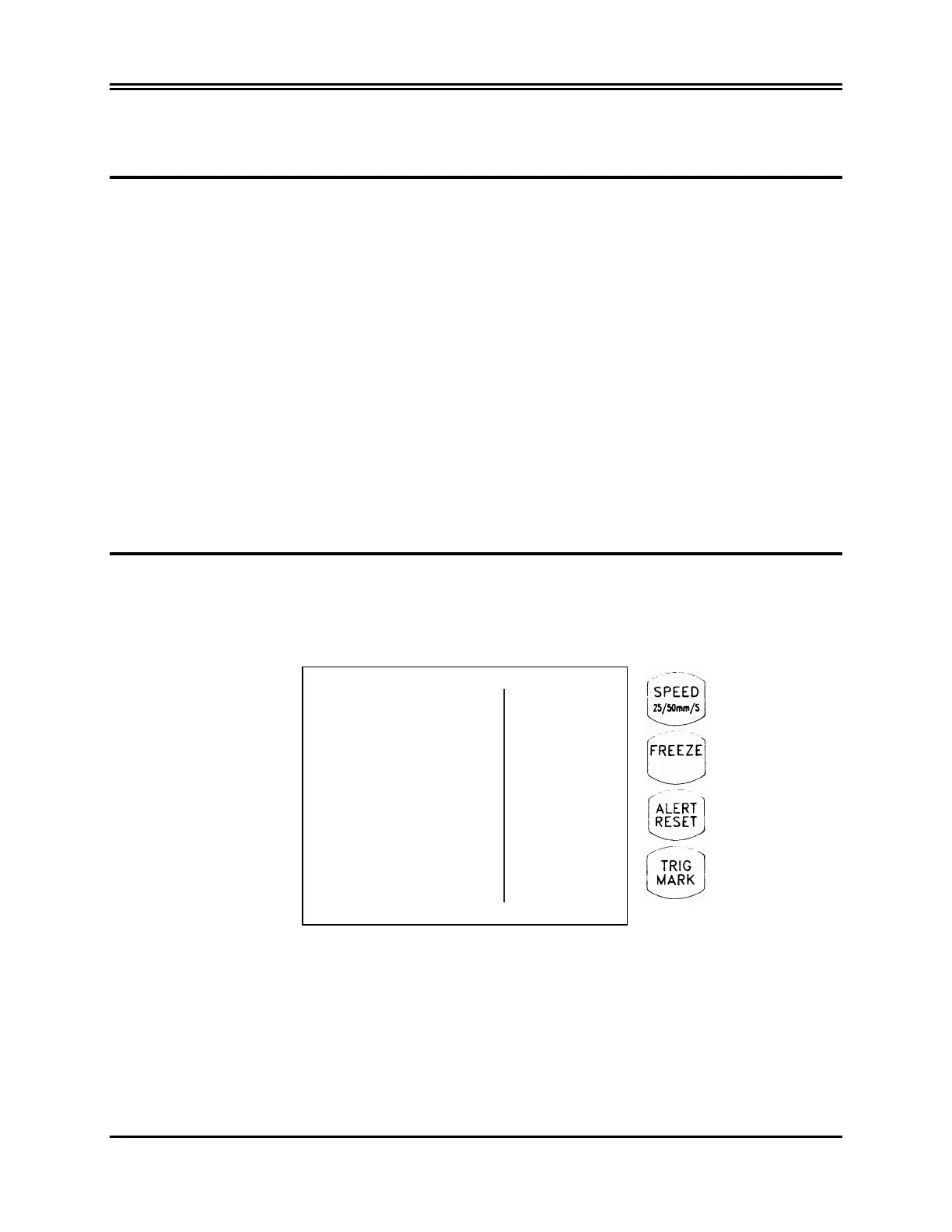

1. Press the MENU key once. The first menu appears.
ECG
HR
LIMITS
TRIGGER
DELAY
RECORDER
2. Press the first programmable key (SPEED 25/50 mm/s) once to select ECG.
Model 101R/NR Service Manual
15
