INSTALLATION
INSTRUCTIONS
CONNECTION
POINTS
S: Sanitizer (1/8" NPT) R: Rinse-aid (1/8" NPT)
L-R unit shown.
EXTERNAL
DEVICE WIRING
Click here for an external device (exhaust fan, etc.) wiring instruction sheet. The sheet
can also be accessed by navigating to it on our website. Follow the instruction sheet
carefully when wiring any external device.
Click here for instructions on programming the exhaust fan timer. The instructions can
also be accessed by navigating to them on our website.
Rinse-aid and sanitizer
tube connections shown
to the right.
Rinse-aid and detergent
dispenser connections
shown to the right.
EXHAUST FAN
TIMER
RED
BLK
WHT
WHT/
BLK
WHT
BLK/
GRY
RED/
YEL
RED/
DETERGENT DISPENSER
CONNECTION
LIVE WHEN WASH
PUMP MOTOR IS ON
FUSE: 200 mA SLOW-ACTING
120 VAC OUT
RINSE-AID DISPENSER
CONNECTION
LIVE WHEN RINSE
VALVE IS OPEN
FUSE: 200 mA SLOW-ACTING
120 VAC OUT
CONSTANT VOLTAGE
CONNECTION
LIVE WHEN MACHINE
POWER SWITCH IS ON
FUSE: 200 mA SLOW-ACTING
120 VAC OUT
EXHAUST FAN
CONTROL
MAXIMUM LOAD
1 AMP, 240/120 VAC
INPUT L1 OUTPUT TO
(EXTERNAL) EXT. RELAY
WARNING: DISCONNECT POWER TO
MACHINE BEFORE SERVICING!
09905-004-42-24-D

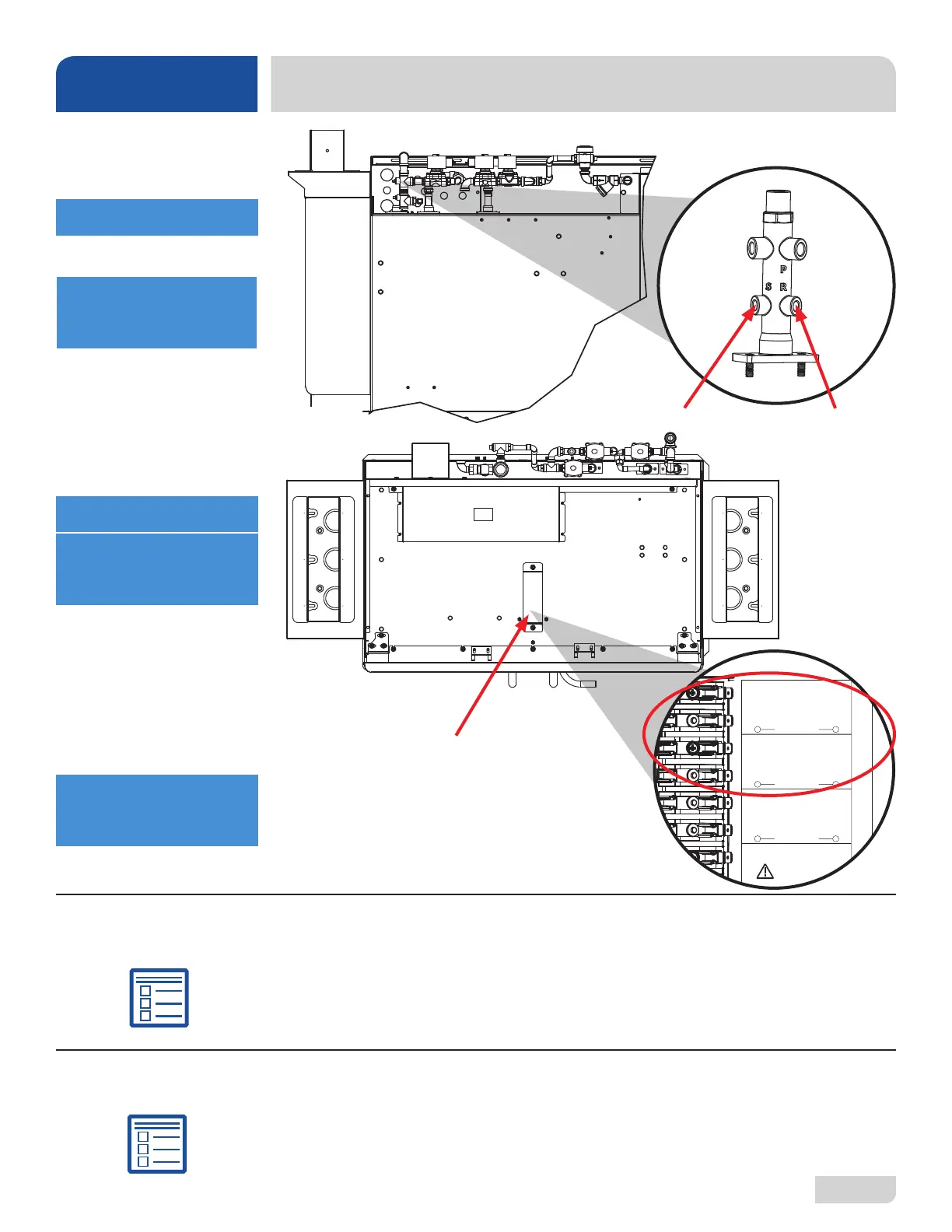

View of machine to the
right is a top view with
the panel removed.
L-R unit shown.
Fuse Block
To Next Page
