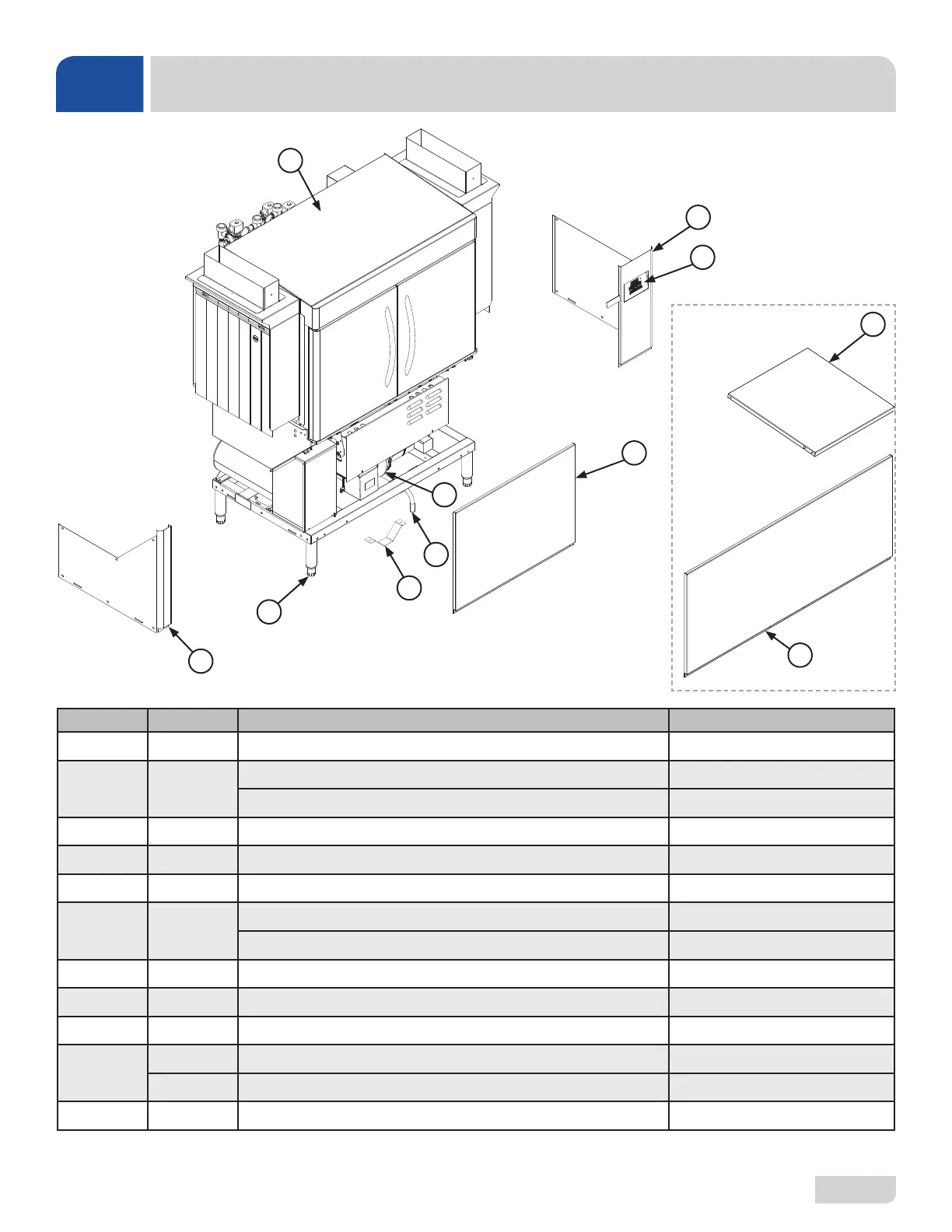

Jackson RackStar 44 - Frame

07610-004-33-05-E
72
1
2
4
5
6
7
8
ITEM QTY DESCRIPTION PART NUMBER
1 1 Hood Dress Panel 05700-004-18-39
2 1
Left Dress Panel, L-R 05700-004-30-60
Right Dress Panel, R-L 05700-004-31-93
3 1 Display See "Display Assembly" page.
4 1 Front Dress Panel, RackStar 44 05700-004-30-44
5 1 Adjustable Foot 05340-011-71-74
6 1
Right Dress Panel, L-R 05700-004-30-59
Left Dress Panel, R-L 05700-004-31-92
7 1 Pre-wash Hood Dress Panel 05700-004-30-08
8 1 Front Dress Panel, RackStar 66 05700-004-34-48
9 1 Drain Valve 04820-111-71-46
10
1 Drain Handle Complete Assembly 05700-004-31-89
1 Drain Handle Only 05700-004-31-90
11 1 Support Bracket, Drain Hose 05700-004-56-71
RackStar 66
3
PARTS
FRAME
9
10
*

11
