Jackson RackStar 44 - Plumbing

07610-004-33-05-E
44

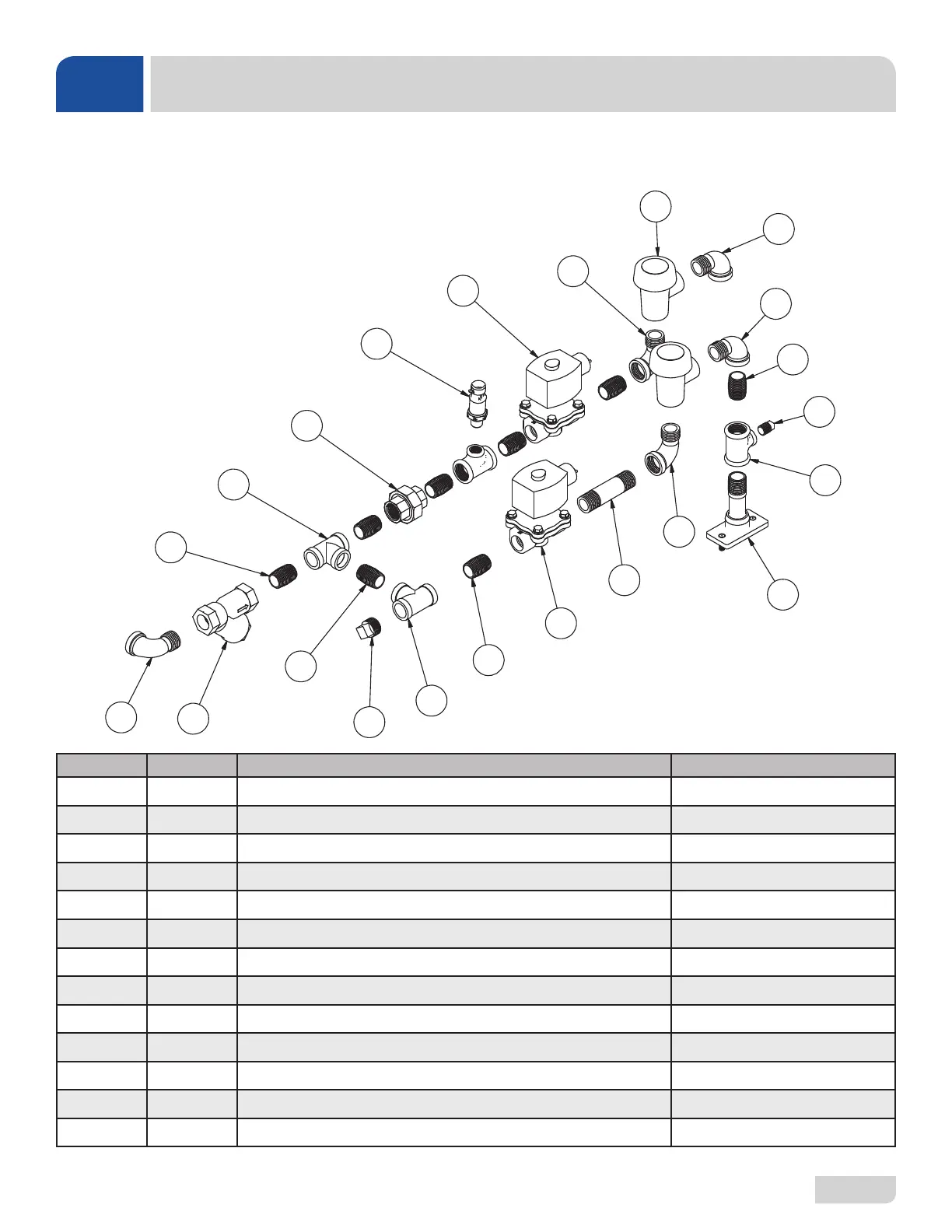

ITEM QTY DESCRIPTION PART NUMBER
1 1 Manifold, Tank Fill 05700-004-38-64
2 5 Elbow, 90-degree 1/2" Street Brass 04730-206-08-00
3 2 Solenoid Valve, 1/2" 04810-003-71-55
4 8 Nipple, 1/2" Close Brass 04730-207-15-00
5 2 Tee, 1/2" Brass 04730-211-27-00
6 2 Vacuum Breaker, 1/2" Brass 04820-003-06-13
7 1 Y-Strainer, 1/2" 04730-217-01-10
8 1 Plug, 1/2" Brass Pipe 04730-209-03-00
9 2 Tee, 1/2" x 1/2" x 1/4" 04730-002-22-56
10 1 Plug, 1/4" Brass 04730-209-01-00
11 1 Transducer, Pressure 05945-004-17-01
12 1 Union, 1/2" x 1/2" Brass 04730-003-62-44
13 1 Nipple, 1/2" x 3" Brass 04730-004-20-10
PARTS
PLUMBING






















Complete Inlet Plumbing Assembly, L-R
05700-004-59-86
Complete Inlet Plumbing Assembly, R-L
05700-004-59-79
