Jackson RackStar 44 - Side-Loader Dimensions

10
07610-004-33-05-E
SPECIFICATIONS

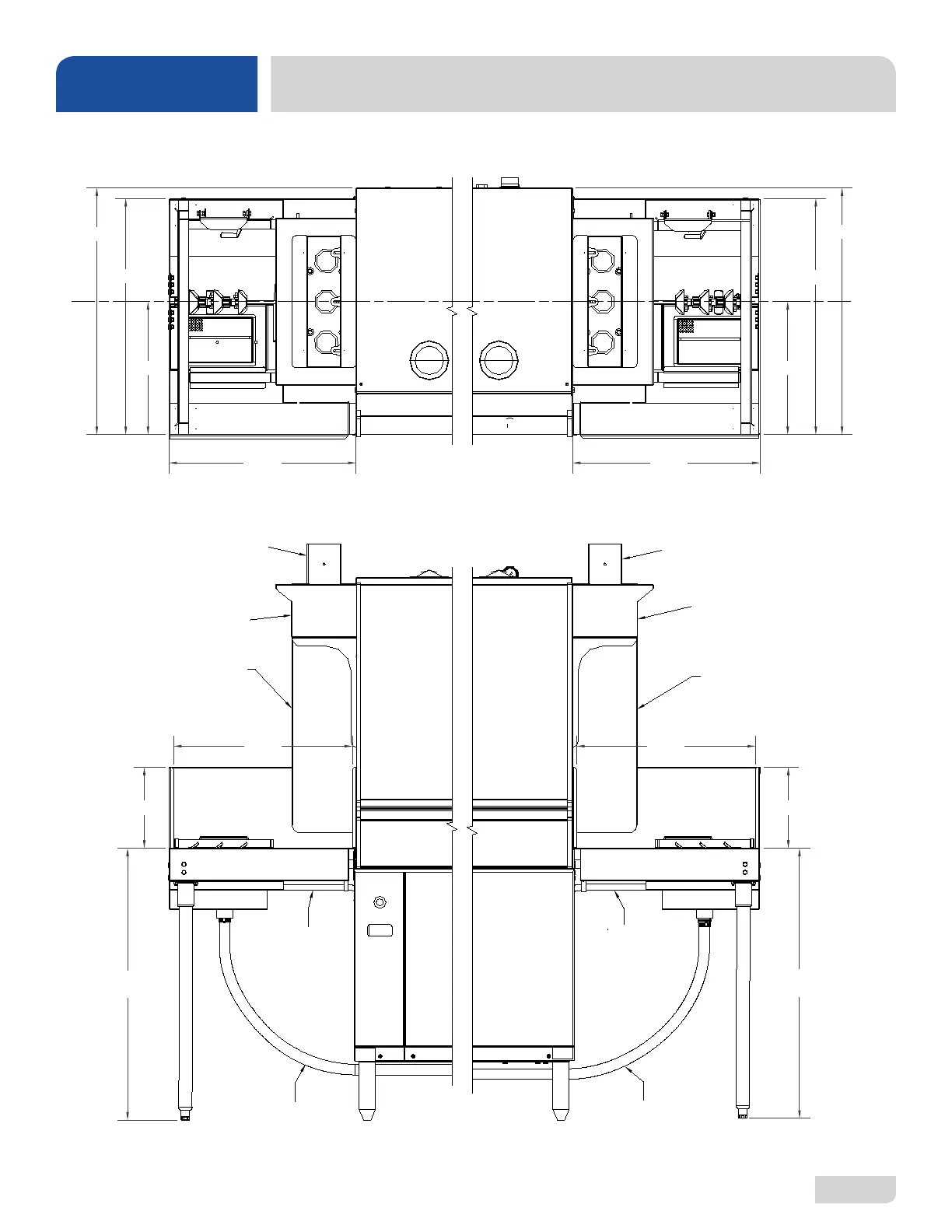

SIDE-LOADER DIMENSIONS
23”
29”
30 5/16”
23”
29”
30 5/16”
16 3/8” 16 3/8”
10”
34” ± 1”
10”
22” 22”
Adjustable Ventilation
Duct Adapter
Side-loader
Drain Hose
23" L-R UNHOODED
SIDE-LOADER
23" R-L UNHOODED
SIDE-LOADER
Ventilation Scoop
Ventilation Scoop
Ventilation Cowl
with Cut-out for
L-R Units
Dimension is 30" for the 30”
unhooded side-loader.
Dimension is 30" for the 30”
unhooded side-loader.
Electrical
Conduit
Adjustable Ventilation
Duct Adapter
Ventilation Cowl
with Cut-out for
R-L Units
Side-loader
Drain Hose
Electrical
Conduit
34” ± 1”
