Jackson RackStar 44 - Parts; Control Box

38
07610-004-33-05-E
PARTS
CONTROL BOX
ITEM QTY DESCRIPTION PART NUMBER
1 1 Terminal Block, 3-pole 05940-011-48-27
2
1
1
Fuse Holder
Fuse, 1 A (208/230 V) (Not Shown)
Fuse, 1/2 A (380/460 V) (Not Shown)
05920-011-72-89
05920-002-67-23
05920-011-72-88
3 2 Terminal Board 05940-002-78-97
4 1 I/O Module 06401-004-76-12
5 2 Relay 05945-111-72-51
6 1 Timer, Universal Digital Multi-timer* 05945-004-22-78
7 1 Overload See Motor Overloads page.
8 2 Contactor, Wash Motor 05945-111-68-38
9 1 Overload See Motor Overloads page.
10 1
Transformer, 208 V 05950-011-75-59
Transformer, 230/460 V 05950-011-68-35
11 1 Contactor, 3-pole, 50 A 05945-002-24-70
12 1 Fan 05999-004-30-62
13 1 Relay 05945-111-35-19

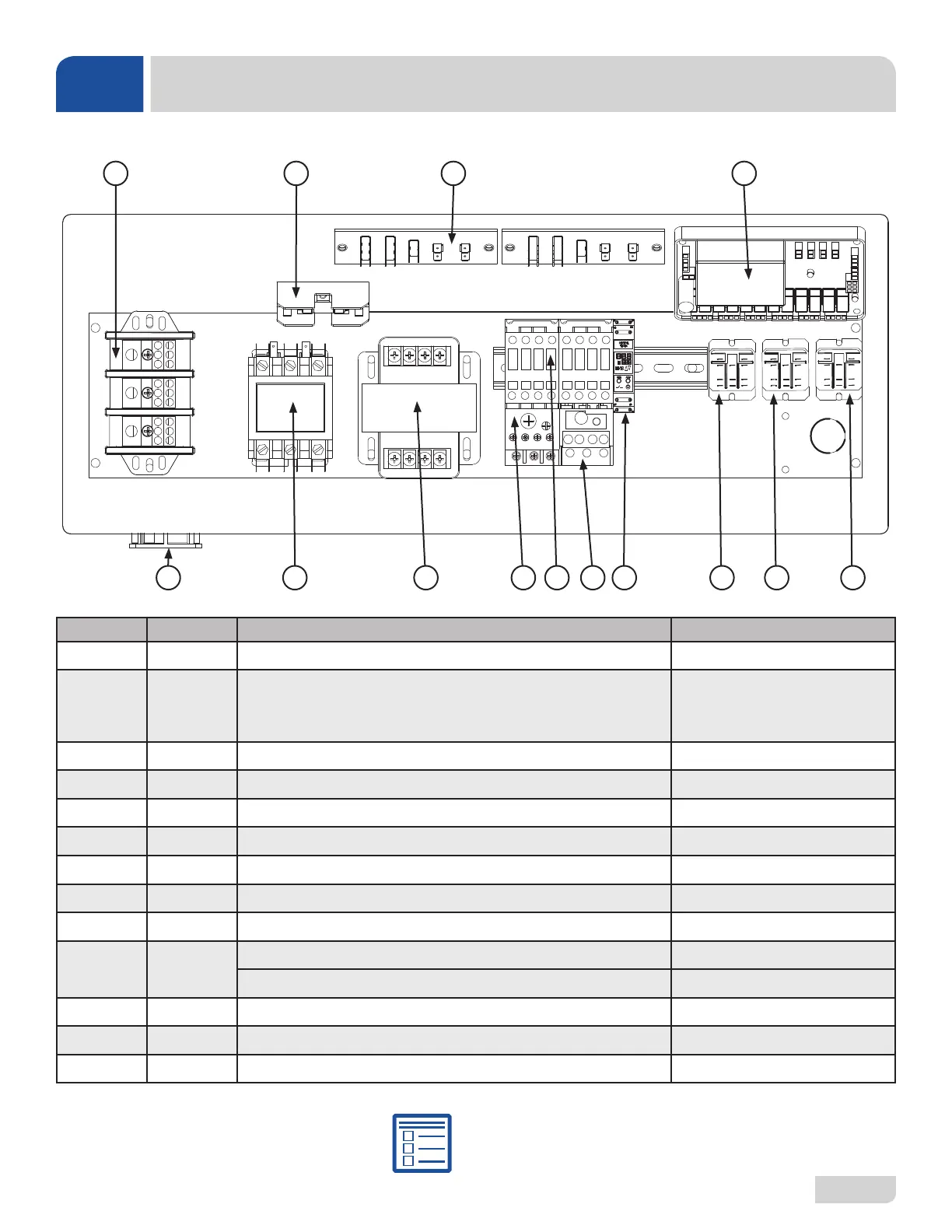

1 2 3 4
56789
10
11
12
*Click here for timer programming instructions.
5
13

