Jackson RackStar 44 - Wash Heater & Shroud

41
07610-004-33-05-E
PARTS

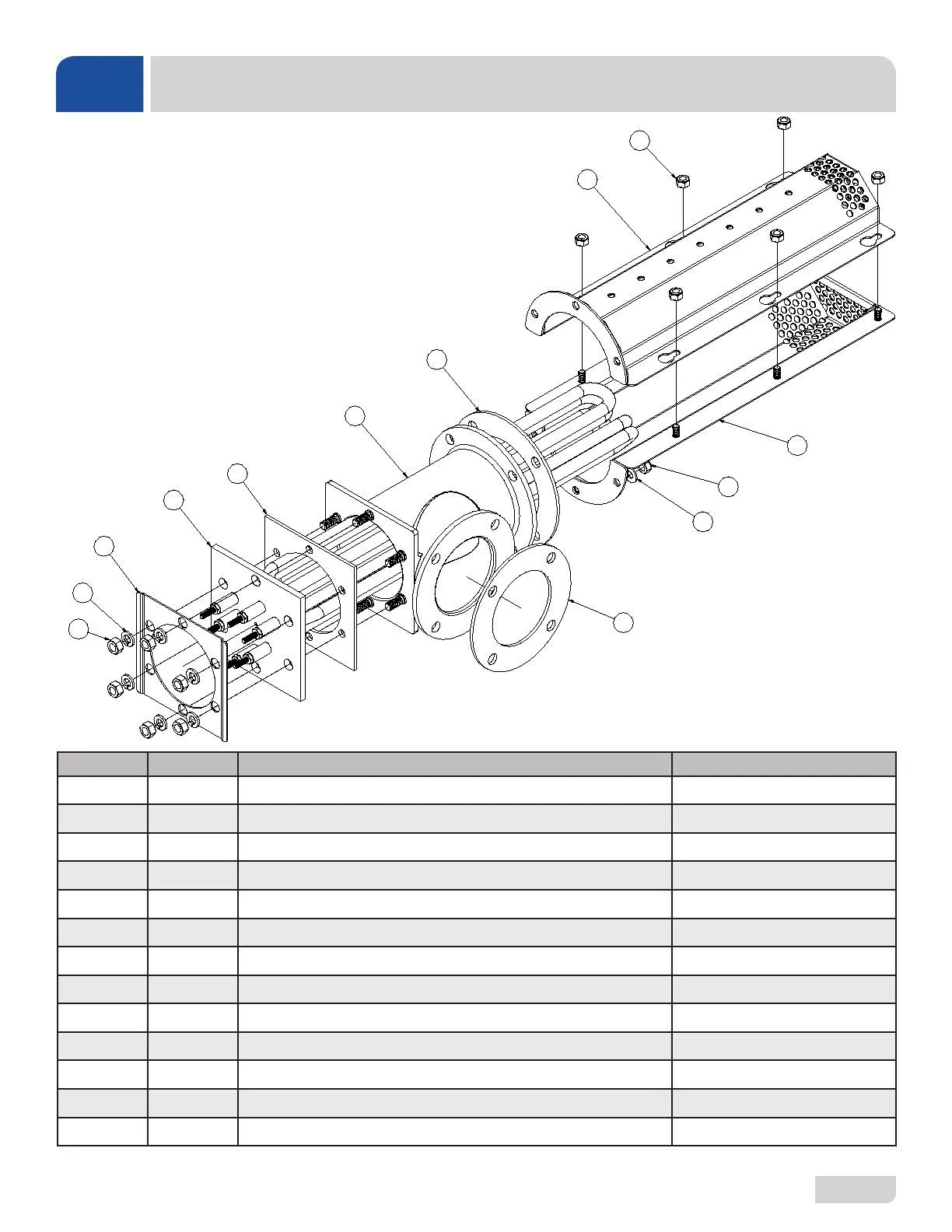

WASH HEATER & SHROUD
6
12
5
7
10
11
3
4
1
8
9
2
9
ITEM QTY DESCRIPTION PART NUMBER
1 1 Lower Heater Shroud 05700-003-74-21
2 1 Upper Heater Shroud 05700-003-74-24
3 1 Gasket, Suction Casting 05330-003-75-89
4 1 Gasket, Pump Suction 05330-003-75-87
5 1 Gasket, Heater 05330-200-02-70
6 1 Heater Box Rails 05700-003-74-72
7 1 Wash Pump Suction 05700-003-77-63
8 2 Washer, 1/4-20 05311-174-01-00
9 9 Locknut, 1/4-20 Hex with Nylon Insert 05310-374-01-00
10 6 Nut, Hex 5/16-18 05310-275-01-00
11 6 Lockwasher, 5/16" Split 05311-375-01-00
12 1 Wash Heating Element, 15 kW See Wash Heaters page.
13 1 Thermostat, High-limit (Not Shown) 05930-011-49-43
