Jackson RackStar 44 - Ventilation Cowl for Unhooded Side-Loader

63
07610-004-33-05-E
ITEM QTY DESCRIPTION PART NUMBER
1A
1B
1
1
Ventilation Cowl with Cut-out for Left Side-loader
Ventilation Cowl with Cut-out for Right Side-loader
05700-004-38-27
05700-004-38-28
2 1 Curtain Hook 05700-003-17-98
3 1 Curtain Rod 05700-003-84-57
4 1 Curtain, XL for Side-loader 08415-003-84-88
To attach the curtain and rod to the Ventilation Cowl,
ensure that the curtain is oriented as depicted and
follow the steps below:
1. Insert the rod into the hole at the rear of the
Ventilation Cowl.
2. Insert the rod into the bracket at the front of the
Ventilation Cowl.
3. Gently lift the rod at the curtain cut-out over and
onto the curtain hook ensuring that the ends of the
rod stay inserted in the holes.

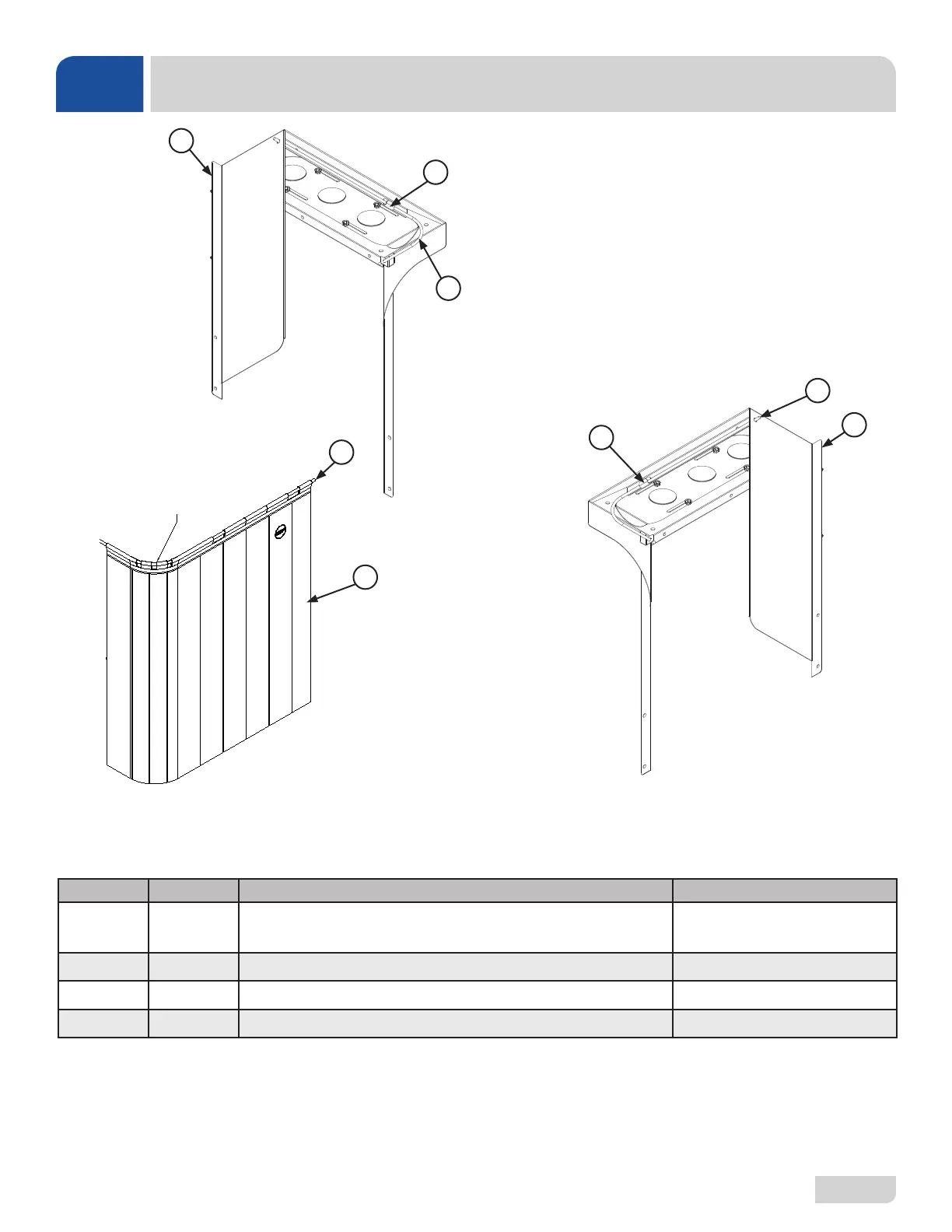

This illustration
depicts the
Ventilation Cowl
for a Left
Unhooded
Side-loader.
7
6
ORIENT THE CURTAIN SO THAT
THE 3 CUTOUTS ARE LOCATED
AT THE BEND OF THE ROD.
This illustration
depicts the
Ventilation Cowl
for a Right
Unhooded
Side-loader.
PARTS
VENTILATION COWL FOR UNHOODED SIDE-LOADER
1A
2
4
3
1B
2
3
3
Orient the curtain so the
three cut-outs are located at
the bend of the rod.
