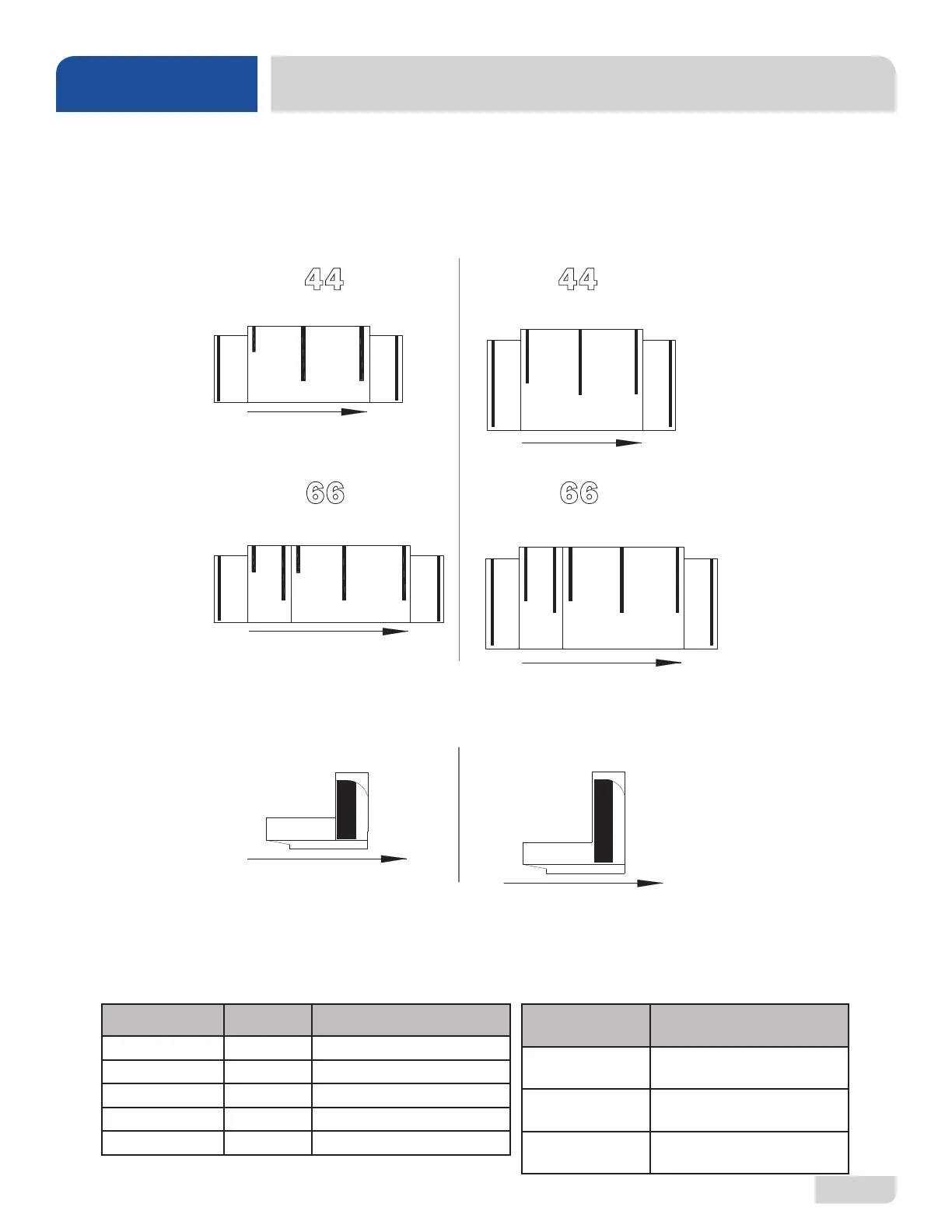

The machine has decals marking the curtain locations inside the machine, starting at the load end and ending at the
unload end. The illustrations below indicate the curtain size to be placed on the curtain hooks provided. If any curtain
components are missing, they must be obtained and installed before operation.
DETERMINING CONVEYER DIRECTION: The machine will be congured for either Left-to-Right or Right-to-Left
operation. Direction is from the load end to the unload end, as shown below.
IMPORTANCE OF PROPER CURTAIN PLACEMENT: The curtains inside the machine must be installed properly for the
machine to operate correctly. Curtains are used to control air currents inside the machine and assist in maintaining the heat
necessary to keep energy costs down. Note the approximate locations for each type of curtain in the above illustrations.
See the chart below for actual curtain lengths and part numbers. Note the different part numbers for the curtain and
curtain rod for the load end when a side-loader option is present.
Legend Length Part #
S 12" 08415-131-73-44
M 19" 08415-002-14-41
XL 24.25" 08415-002-47-37
2X 29.75" 08415-004-49-64
Curtain Rod 20.50" 05700-003-77-52
Side-loader
Option
Part #
XL
(Load End Only)
08415-003-84-88
2X
(Load End Only)
08415-004-69-54
Curtain Rod
(Load End Only)
05700-003-84-57
INSTALLATION
CURTAIN INSTALLATION
S
12"
L R
XL
24.5" 19"19"
19" 24.5"12"24.5"
SXL
RL
S
12"19"
XL
24.5"
M M XL
M M M
RackStar Low Hood RackStar High Hood
44
66
L R
24.5”19"29.75"
M2X
RL
29.75"
2X
19"29.75"
M2X
29.75"
2X
44
66
XL
24.5"
XL
RackStar Sideloader
Low Hood High Hood
XL
24.5" L x 24.19” W
L R
2X
29.75" L x 24.19” W
L R
24.5”
XL
24.5"
XL
19"
M
24.5"
XL
19"
