Jackson TempStar Series User Manual

7
07610-002-23-32-AC
20 1/2” (52.1 cm)
OPENING
25 1/4”
(64.1 cm)
20 1/2” (52.1 cm)
OPENING
25 1/4”
(64.1 cm)
2 1/2” (6.4 cm)
4” (10.2 cm)
MINIMUM
4” (10.2 cm)
MINIMUM
2 1/2”
(6.4 cm)
3/4” (1.9 cm)
20 1/2”
(52.1 cm)
1 1/2” (3.81 cm) ROLL

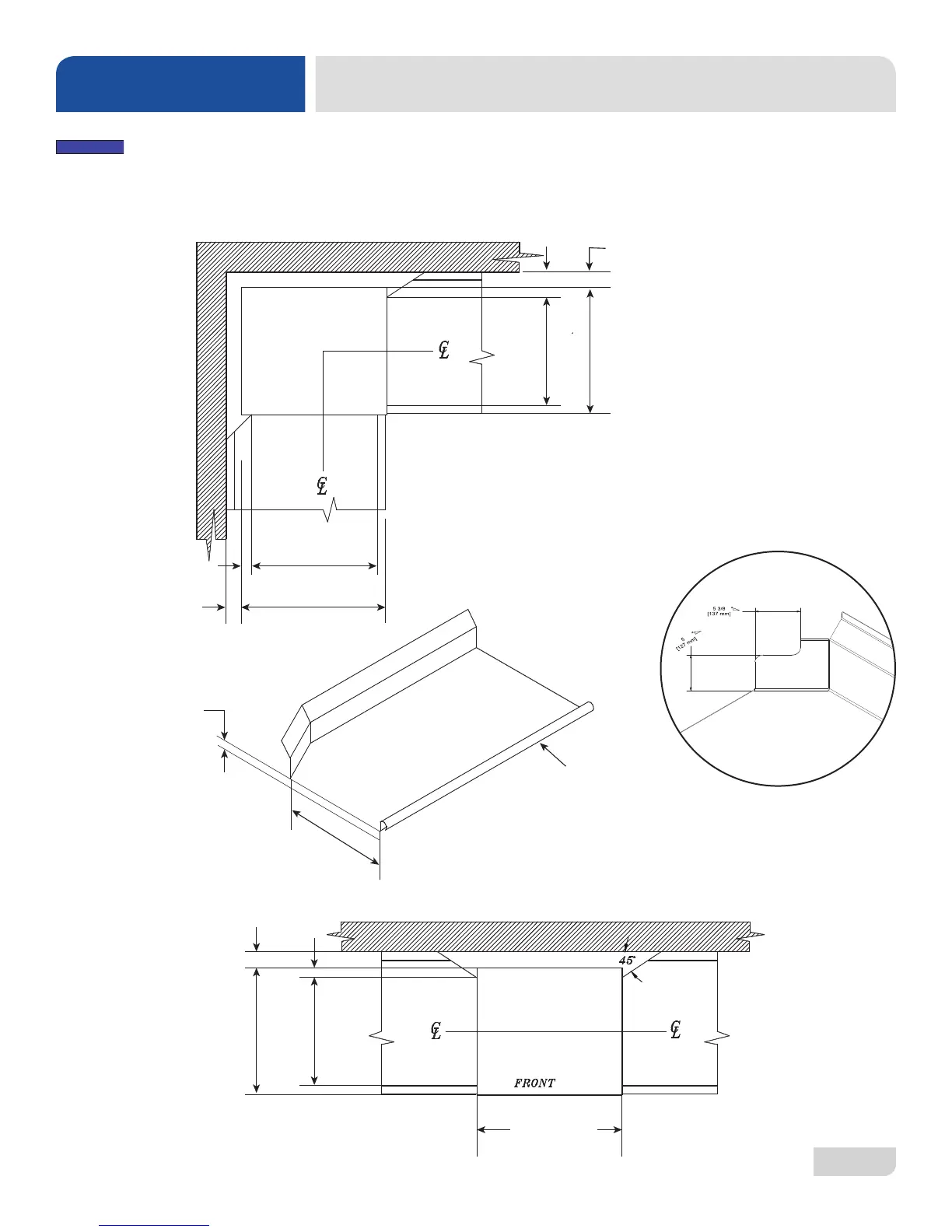

TABLE DIMENSIONS
CONNECTION TO DISHMACHINE
TABLE DIMENSIONS
CORNER INSTALLATION
4” (10.2 cm)
MINIMUM
2 1/2”
(6.4 cm)
25 1/4”
(64.1 cm)
20 1/2” (52.1 cm)
OPENING
25 1/4” (64.1 cm)
TABLE DIMENSIONS
STRAIGHT THROUGH INSTALLATION
Remove the front dress panel from the dishmachine if mounting the dishmachine in a corner
installation with side tables. Corner installation will trap the panel, making it difcult to remove.
-
NOTCH DIMENSIONS
TABLE DIMENSIONS
SPECIFICATIONS
NOTICE

Jackson TempStar Series Specifications

General

Model	TempStar Series
Voltage	208-240V
Number of Wash Cycles	1
Color	Stainless Steel
Category	Dishwasher
Voltage Options	208V, 240V
Capacity	60-80 racks per hour
Water Consumption per Cycle	0.5-1.0 gallons
Water Consumption per Rack	0.84 gallons
