07610-002-23-32-AC
64
Thermostat
05930-003-13-65
Solenoid Valve
04810-100-09-18
To Cold Water Supply
Nipple, Close, 1/2” NPT
(Not Shown)
04730-207-15-00
Valve, Check, 1/2”
(Not Shown)
04820-002-55-77
Lid, Drain Quench
05700-002-67-16
Box, Drain Quench
05700-002-69-96
Reducer, 1-1/2” to 1/2”
04730-002-55-75
Tee, 1-1/2” x 1-1/2” x 1-1/2”
04730-011-69-93
Modified Compression
Fitting
05700-001-16-52
Reducer, 1-1/2” x 1/4”
04730-002-55-76
To Dishmachine Drain
Nipple, 1-1/2” NPT
04730-207-40-00
Elbow, 1-1/2” 90 Street
04730-206-32-00

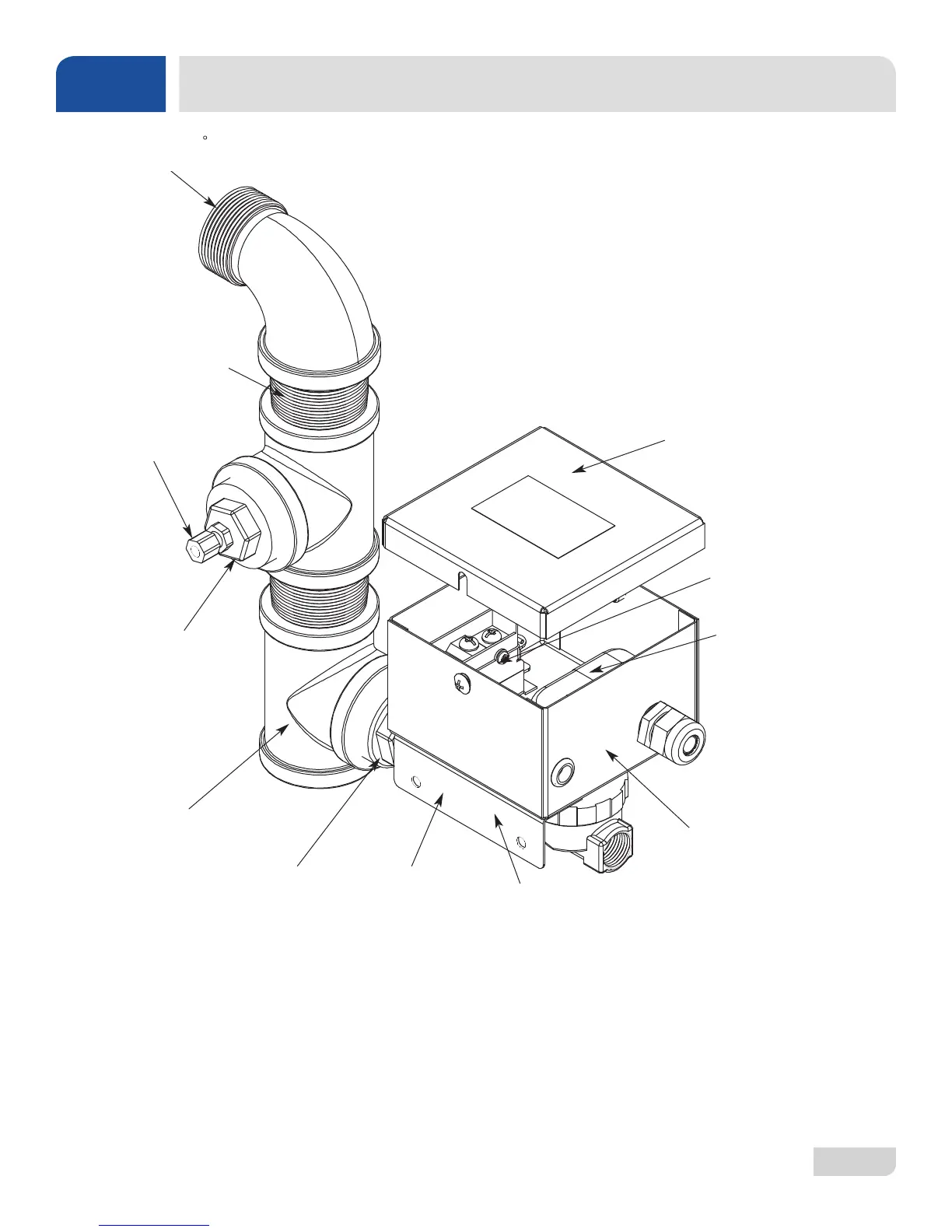

Drain Quench
Assembly
06401-002-59-52
From the existing drain, attach two additional Tees using the 1 1/2" NPT Close Nipples. Tighten the Reducers into the
Tees as shown above. Attach the Modied Compression Fitting into the 1 1/2" to 1/4" Reducer. Position the bulb of the
thermostat so that it rests approximately 1/4" from the bottom of the Tee. Tighten the Modied Compression Fitting as
required. Attach to the incoming cold water line. Use thread tape as required to prevent any leaks.
DRAIN QUENCH ASSEMBLY
PARTS
Drain Quench
Kit
