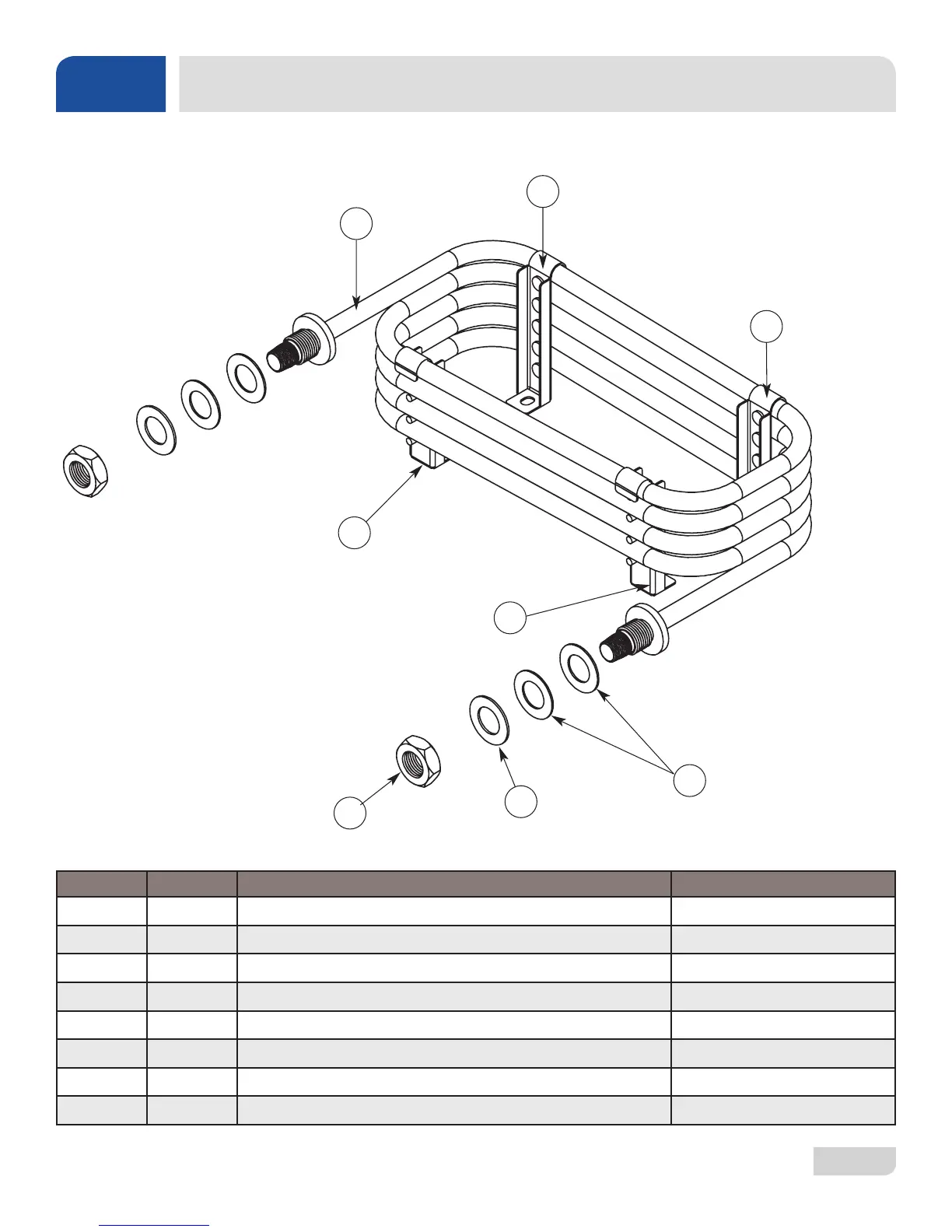

Jackson TempStar Series - Steam Coil Assembly

65
07610-002-23-32-AC
1
2
3
4
5
6
7
8
ITEM QTY DESCRIPTION PART NUMBER
1 1 Steam Coil Weldment 05700-021-41-38
2 1 Stand C, Steam Coil Support 05700-002-08-52
3 1 Stand D, Steam Coil Support 05700-002-08-53
4 1 Gasket, Steam Coil 05700-001-17-86
5 2 Washer, Steam Coil 05700-001-17-87
6 2 Adapter, Steam Coil Nut 05310-011-17-85
7 1 Stand A, Steam Coil Support 05700-002-08-50
8 1 Stand B, Steam Coil Support 05700-002-08-51
Complete Assembly
05700-002-08-62
STEAM COIL ASSEMBLY
PARTS
