07610-002-23-32-AC
48
ITEM QTY DESCRIPTION PART NUMBER
1 1 Booster Tank Weldment 05700-002-10-19
2 2 Locknut, 10-24 with Nylon Insert 05310-373-01-00
3 2 Washer, #10 Flat 05311-173-01-00
4 1 Decal, Warning-Disconnect Power 09905-004-08-16
5 1 Booster Tank Cover Weldment 05700-002-16-51
6 6 Nut, Hex, 5/16-18 05310-275-01-00
7 1 Thermostat, Hi-Limit 05930-011-49-43
8 1 Thermostat, Regulating with Imperial Brass Fitting 06401-011-66-55
9 6 Lockwasher, 5/16", Split 05311-275-01-00
10 1 Gasket, Rinse Heater 05330-200-02-70
11 4 Locknut, 1/4-20 with Nylon Insert 05310-374-01-00
12 4 Washer, 1/4", Flat 05311-174-01-00
13 1 Probe, Thermistor 4" 06685-004-17-26
1
7
8
5
4
8
10
See "Motors & Heaters" page.
Complete Assemblies
230 V, 14 kW 70
Rise - 06401-004-19-57
240 V, 12 kW 40
Rise - 06401-004-19-55
410 V, 12 kW 40
Rise
- 06401-004-19-56
415 V, 12 kW 40
Rise - 06401-004-19-54
13

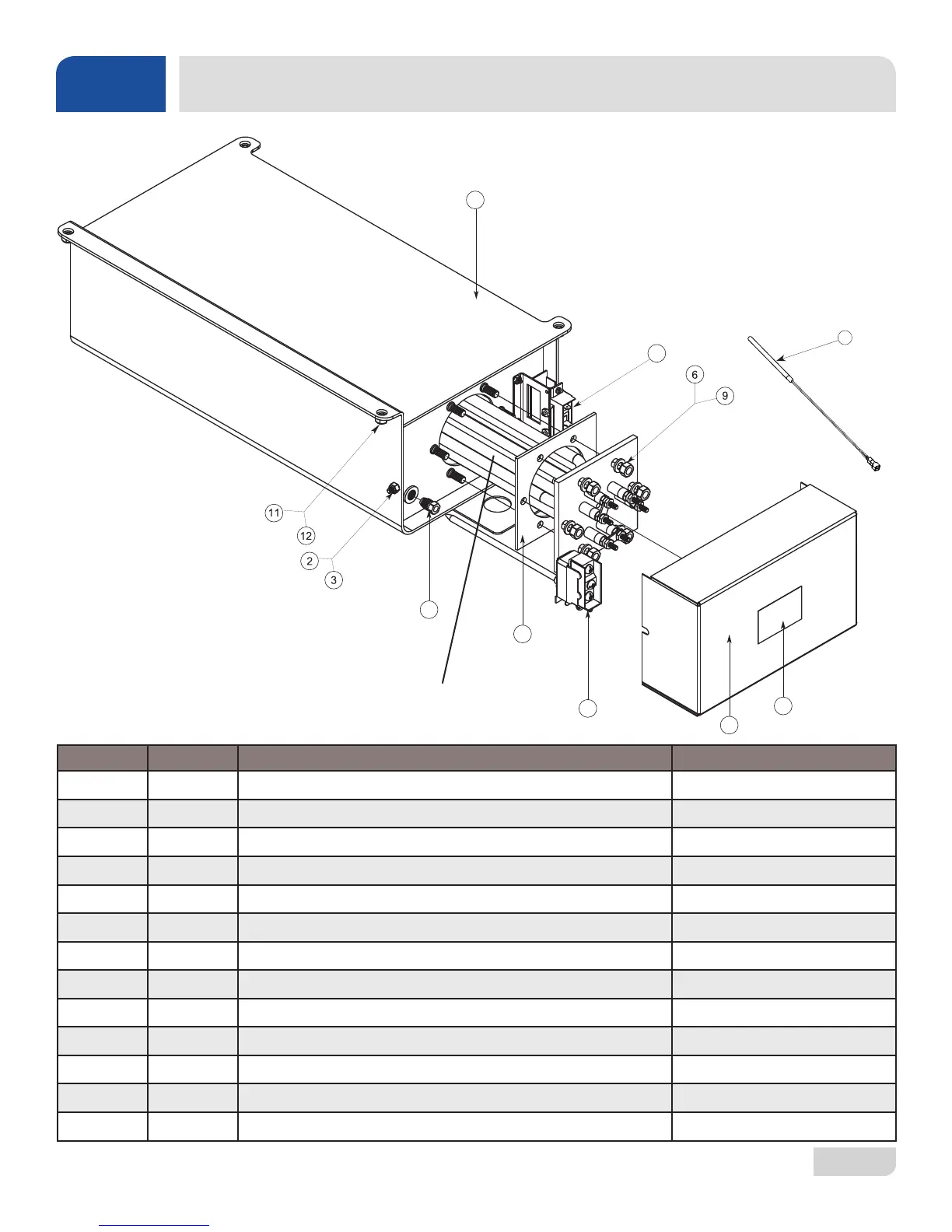

RINSE TANK ASSEMBLY
PARTS
