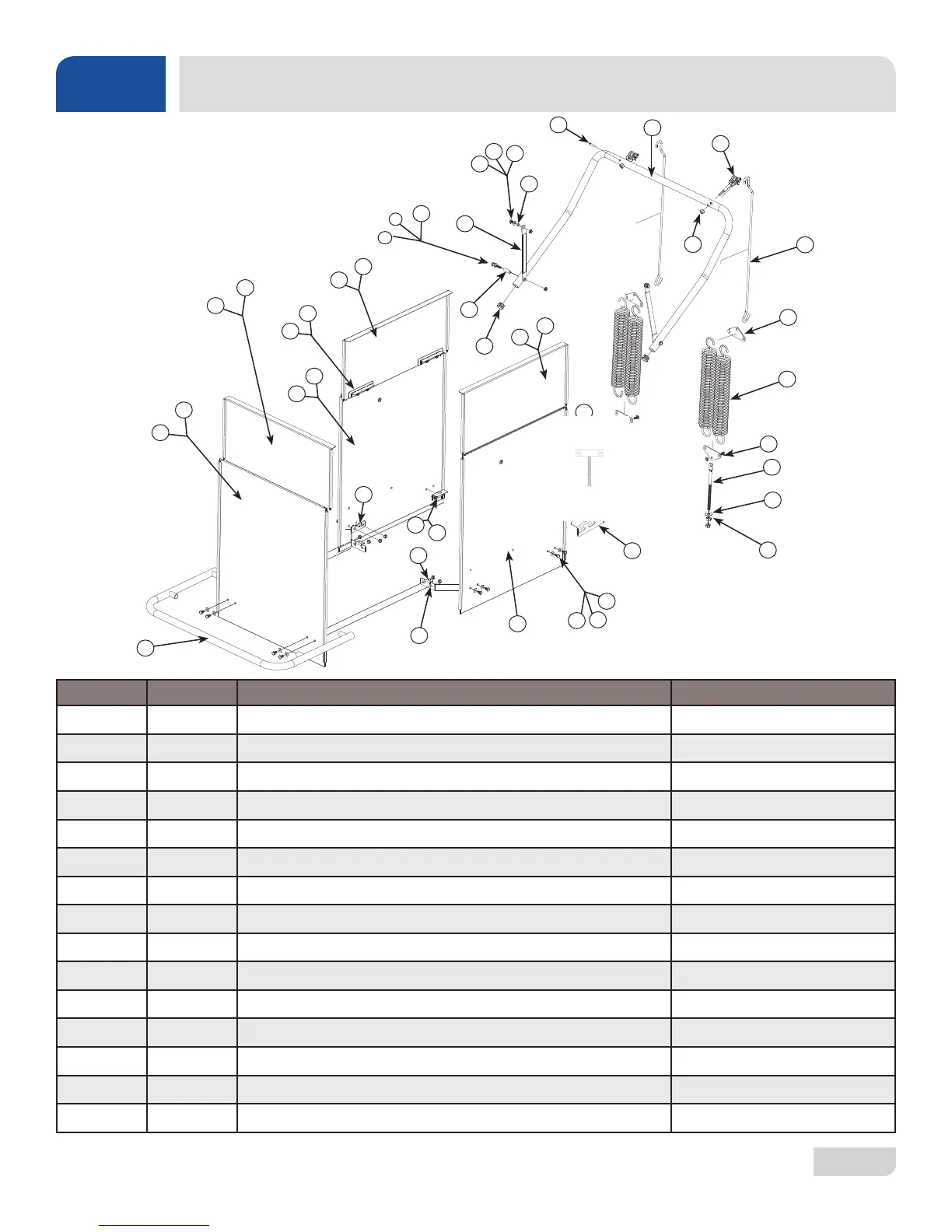

Jackson TempStar Series - Cantilever Arm;Door Assemby

07610-002-23-32-AC
40
ITEM QTY DESCRIPTION PART NUMBER
1 1 Cantilever Arm 05700-004-14-29
2 2 Sleeve, Cantilever Arm 05700-000-85-69
3 2 Screw, 1/4-20 x 1 1/2" Hex 05305-274-23-00
4 4 Washer, 1/4" ID 05311-174-01-00
5 4 Locknut, 1/4-20 Low-prole with Nylon Insert 05310-374-02-00
6 4 Plug, Cantilever 05340-011-35-00
7 2 Connecting Link 05700-021-92-45
8 2 Spring Pin, 1/4" x 1 1/8" 05315-407-06-00
9 2 Yoke Assembly 05700-000-75-77
10 2 Nut, 3/8-16 Hex Locking 05310-256-04-00
11 2 Rod, Spring Connecting 05700-002-00-91
12 4 Plate, Spring Multiplier 05700-002-00-88
13 4 Spring, Cantilever Door 05340-111-35-22
14 4 Bolt, Cantilever Hanger Eye 3/8-16 05306-956-05-00
15 4 Washer, Impeller 05311-176-02-00
11
12
13
12
14
15
16
28
22
6
2
3
4
5
7
25
4
5
26
8
10
9
21
4
24
23
21
22
22
36
22
30
29
32
31
33
34
35
24
17
18
17
18
1
19
CANTILEVER ARM/DOOR ASSEMBLY
PARTS
