RINSE ARM MAINTENANCE
MAINTENANCE
BEARING
REPLACEMENT

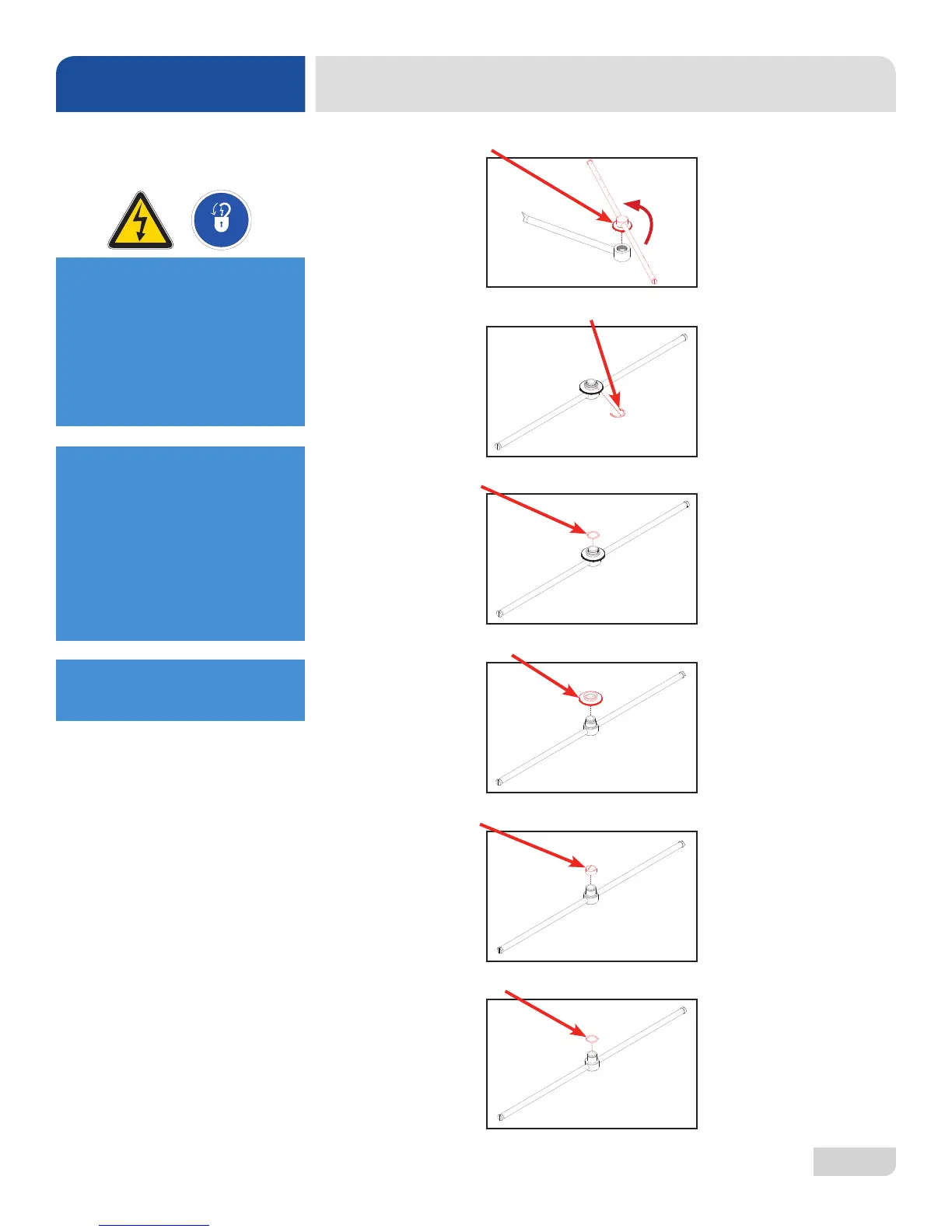

1. Unscrew the rinse arm from the manifold.
2. Take the retaining clip off with a flathead screwdriver.
3. Remove the first washer.
4. Remove the rinse head bushing.
5. Remove the bearing.
6. Remove the second washer.
06401-004-33-51
RINSE ARM BEARING KIT
1 Bearing
03120-004-12-13
1 Retaining Clip
05340-112-01-11
2 Washers
05330-011-42-10
TOOLS REQUIRED
Flathead Screwdriver
Disconnect electrical
power supplies and
lockout/tagout in
accordance with
appropriate procedures
and codes at the
disconnect switch.
