Jackson TempStar Series - Ventless Door Interlock

07610-002-23-32-AC
74
ITEM QTY DESCRIPTION PART NUMBER
1 1 Guide Block, Door Lock 09330-004-22-72
2 1 Cover, Door Lock Mounting 05700-004-22-80
3 1 Rod, Interlock Weldment 05700-004-23-15
4 1 Solenoid, Horizontal, 1" Push 04820-004-24-11
5 1 Spring, Compression 05935-004-24-10
6 1 Base, Door Interlock Box 05700-004-24-25
7 8 Screw, 3/8" Pan Head 05305-171-02-00
8 8 Washer, Flat #10 05311-173-02-00
9 2 Locknut, 1/4-20 05310-374-01-00
10 2 Washer, 1/4-20 05311-174-01-00
11 1 Fitting, Black 05975-011-59-50
12 2 Connector, 2-Conductor 05935-004-03-49
13 1 SJ Cord, 55" 05700-004-24-31
2
4
6
5
1
9
10
7
8
3
13
11
12

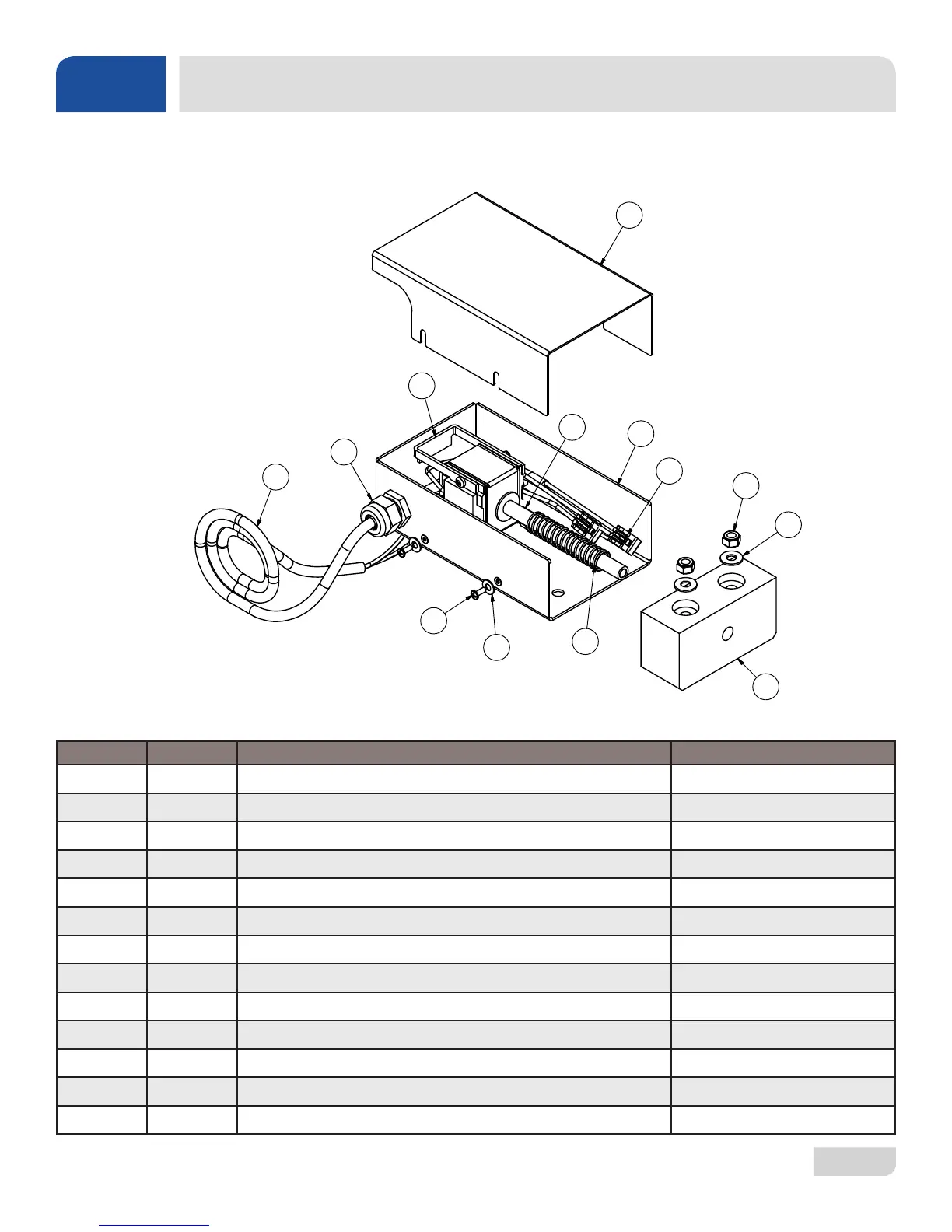

VENTLESS DOOR INTERLOCK
PARTS
