Jackson TempStar Series User Manual

17
07610-002-23-32-AC
PROGRAMMING EXHAUST FAN TIMER
INSTALLATION
1. Apply power (120, 208, or 240 VAC) to the A1 & A2 terminals.

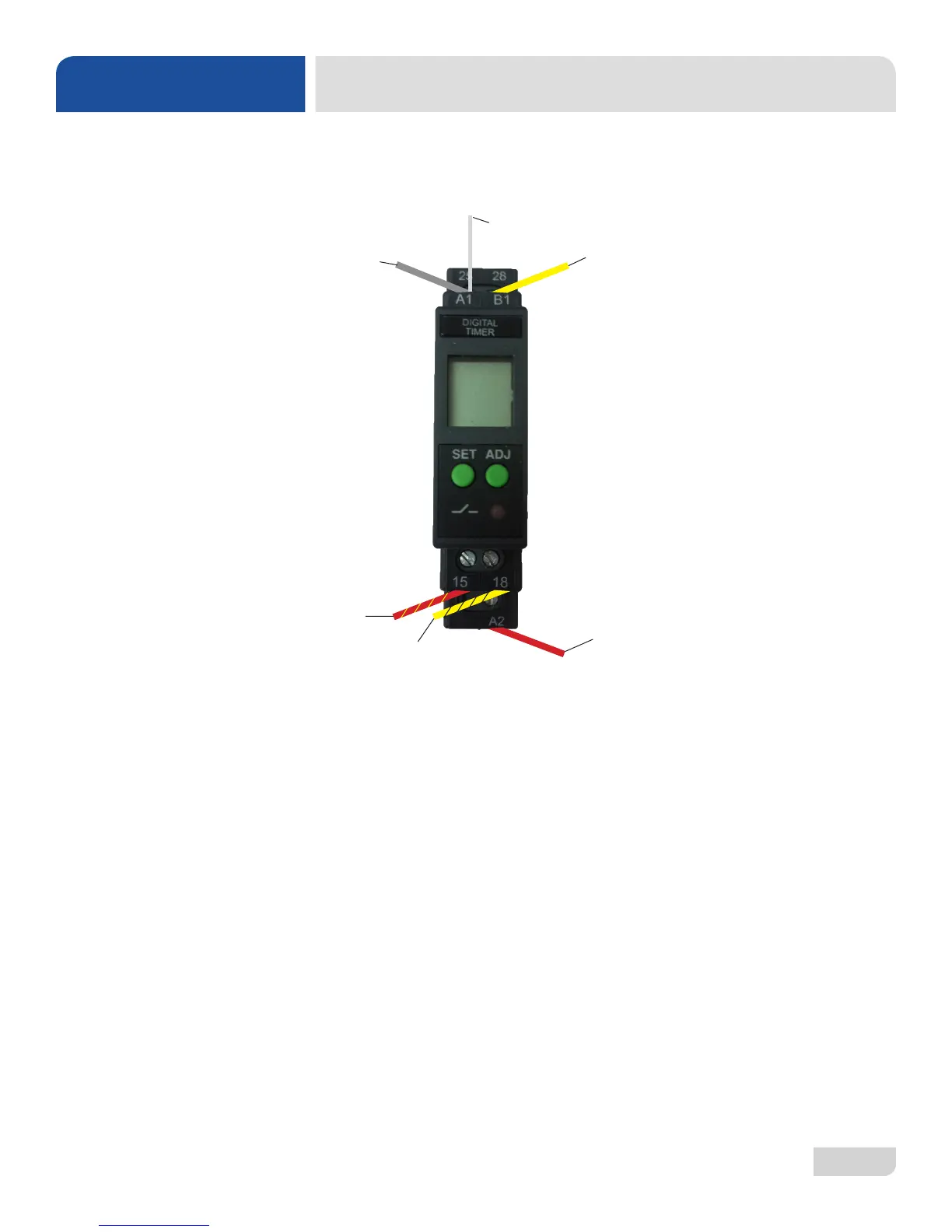

Timer Wiring with Correct Wire Colors
2. Hold down the SET and ADJ buttons for at least three seconds.
3. Repeatedly press the ADJ button until the letter E appears on the left-hand side.
4. Press the SET button.
5. Press the ADJ button until the letters M S appear.
6. Press the SET button.
7. Press the ADJ button to adjust the rst digit to 2.
8. Press the SET button.
9. Press the ADJ button to adjust the second digit to 3.
10. Press the SET button.
11. Press the ADJ button to adjust the third digit to 0.
12. Press the SET button.
13. Press the ADJ button so there is an arrow facing downward.
14. Press the SET button.
Light Gray
Dark Gray
Yellow
Red
Red/Yellow
Yellow/Black

Jackson TempStar Series Specifications

General

Model	TempStar Series
Voltage	208-240V
Number of Wash Cycles	1
Color	Stainless Steel
Category	Dishwasher
Voltage Options	208V, 240V
Capacity	60-80 racks per hour
Water Consumption per Cycle	0.5-1.0 gallons
Water Consumption per Rack	0.84 gallons
