Jackson TempStar Series - Outlet Plumbing - HH Steam

61
07610-002-23-32-AC

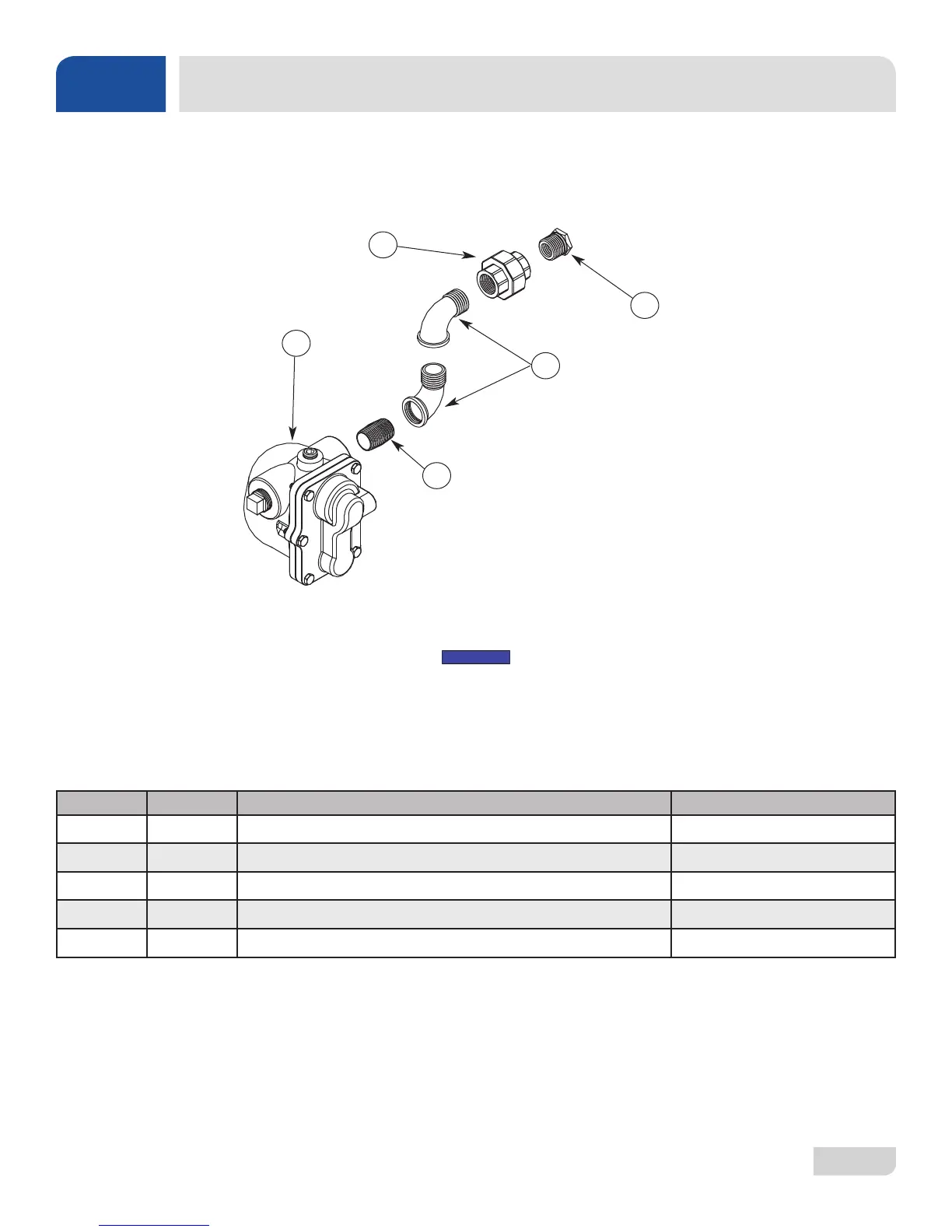

ITEM QTY DESCRIPTION PART NUMBER
1 1 Union, 3/4’’ NPT, Black Iron 04730-912-01-00
2 1 Bushing, Reducing, 3/4’’ to 1/2’’ 04730-911-02-34
3 2 Elbow, 3/4” 90-Degree Street 04730-011-87-37
4 1 Nipple, Close, 3/4’’ NPT, Black Iron 04730-907-01-00
5 1 Steam Trap, 3/4” NPT F&T 06680-500-02-77
Union, 3/4’’ NPT, Black Iron
04730-912-01-01
Elbow, 3/4” 90° Street
04730-011-87-37
Elbow, 3/4” 90° Street
04730-011-87-37
Elbow, 3/4” 90° Street
04730-011-87-37
Steam Trap, 3/4” NPT F&T
06680-500-02-77
Nipple, Close, 3/4’’ NPT, Black Iron
04730-907-01-00
Nipple, Close, 3/4’’ NPT, Black Iron
4 per assembly
04730-907-01-00
Bushing, Reducing, 3/4’’ to 1/2’’
04730-911-02-34
Bushing, Reducing, 3/4’’ to 1/2’’
04730-911-02-34
Union, 3/4’’ NPT, Black Iron
2 per assembly
04730-912-01-01
3/4” NPT Black Iron Pipe
05700-002-20-83
Gate Valve, 3/4” NPT
04820-100-19-00
Bracket, Steam Plumbing Support
05700-002-20-83
Y-Strainer, 3/4” NPT Black Iron
04730-217-01-32
Solenoid Valve, Steam Plumbing, 220V
04820-002-01-32
To order this complete assembly,
use part number:
05700-002-01-55
To order this complete assembly, use part number:
05700-002-01-60
OUTLET PLUMBING - HH STEAM
PARTS
Complete Assembly
05700-002-01-55
1
2
3
4
5
When servicing plumbing components, take care not to damage the threads of each individual item. Damaged threads
can cause leaks and loss of pressure, which could adversely affect the performance of the dishmachine. It is strongly
recommended that teon thread tape, used in conservative amounts, be applied to threads when joining components
together. It is not advised to use thread-sealing compounds, sometimes referred to as “pipe dope." Compounds can be
ejected from the threads during the tightening process and become lodged in key components, rendering them useless.
NOTICE
