07610-002-23-32-AC
14

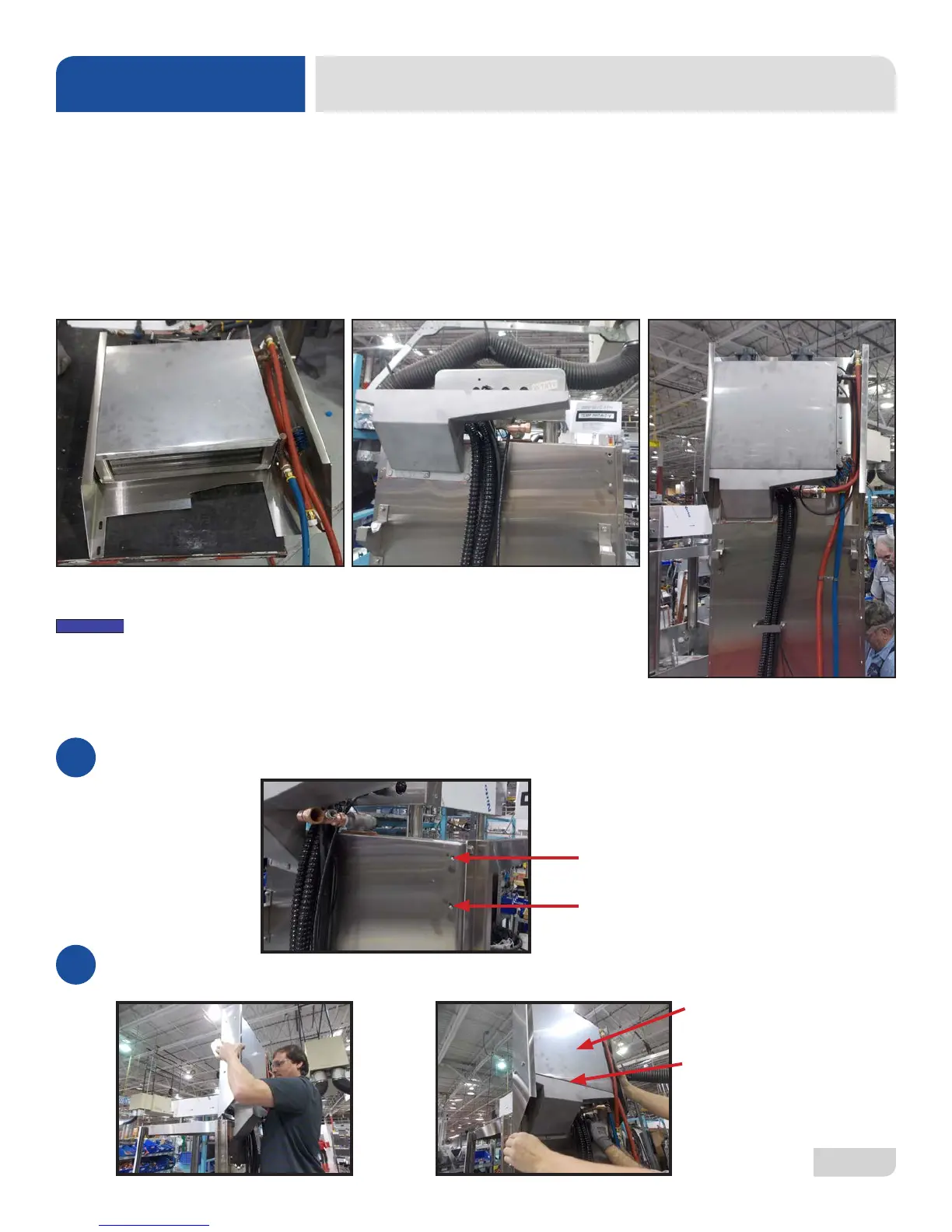

VENTLESS MOUNTING INSTRUCTIONS
INSTALLATION
1
Lift the Ventless/Energy Recovery unit up and over the lower air inlet, then align and slide unit onto the lower air inlet.
Upper unit should slide inside the lower air inlet at the seam.
Locate and remove the four 1/4-20 bolts using a 7/16 wrench. These are located in the top-left and right corner of the
unit.
Ventless/Energy Recovery Unit
Lower Air Inlet Seam
2
INSTRUCTIONS:
Due to shipping constraints, the Ventless/Energy Recovery assembly is not mounted by the manufacturer. These
instructions show how to mount the Ventless/Energy Recovery assembly onto the Ventless machine.
TOOLS REQUIRED:
7/16” Wrench
9/16” Wrench
Adjustable Wrench
Ventless/Energy Recovery Unit
The Ventless/Energy Recovery assembly is packaged with the machine
but not mounted.
Base Unit Fully-assembled Unit
NOTICE
