Jackson TempStar Series User Manual

49
07610-002-23-32-AC
(2 PLC'S)
(3 PLC'S)
(8 PLC'S)
(8 PLC'S)
(2 PLC'S)
12
10
11
9
7
8
6
3
2
1
13
5
14
4
ITEM QTY DESCRIPTION PART NUMBER
1 1 Booster Tank Weldment - Ventless HH 05700-004-21-83
2 2 Gasket, Wash Heater 05330-011-47-79
3 1 Heater, 10 kW, 230 V 04540-021-62-57
4 1 Probe, Thermistor 4" 06685-004-17-26
5 1 Booster Tank Cover 05700-004-21-94
6 1 Decal, Warning-Disconnect Power 09905-004-08-16
7 3 Nut, Lock 6-32 Hex with Nylon Insert 05310-373-03-00
8 8 Nut, Hex 5/16-18 05310-275-01-00
9 8 Lockwasher, 5/16", Split 05311-275-01-00
10 1 Thermostat, Hi-Limit 05930-011-49-43
11 1 Clamp 05975-601-10-15
12 1 Heater, 5.45 kW, 240 V, Wash 04540-121-47-39
13 2 Nut, Lock 10-24 Hex with Nylon Insert 05310-373-01-00
14 1 Fitting, Brass Nut Sleeve Fitting 05310-924-02-05
Complete Assembly
05700-004-21-95

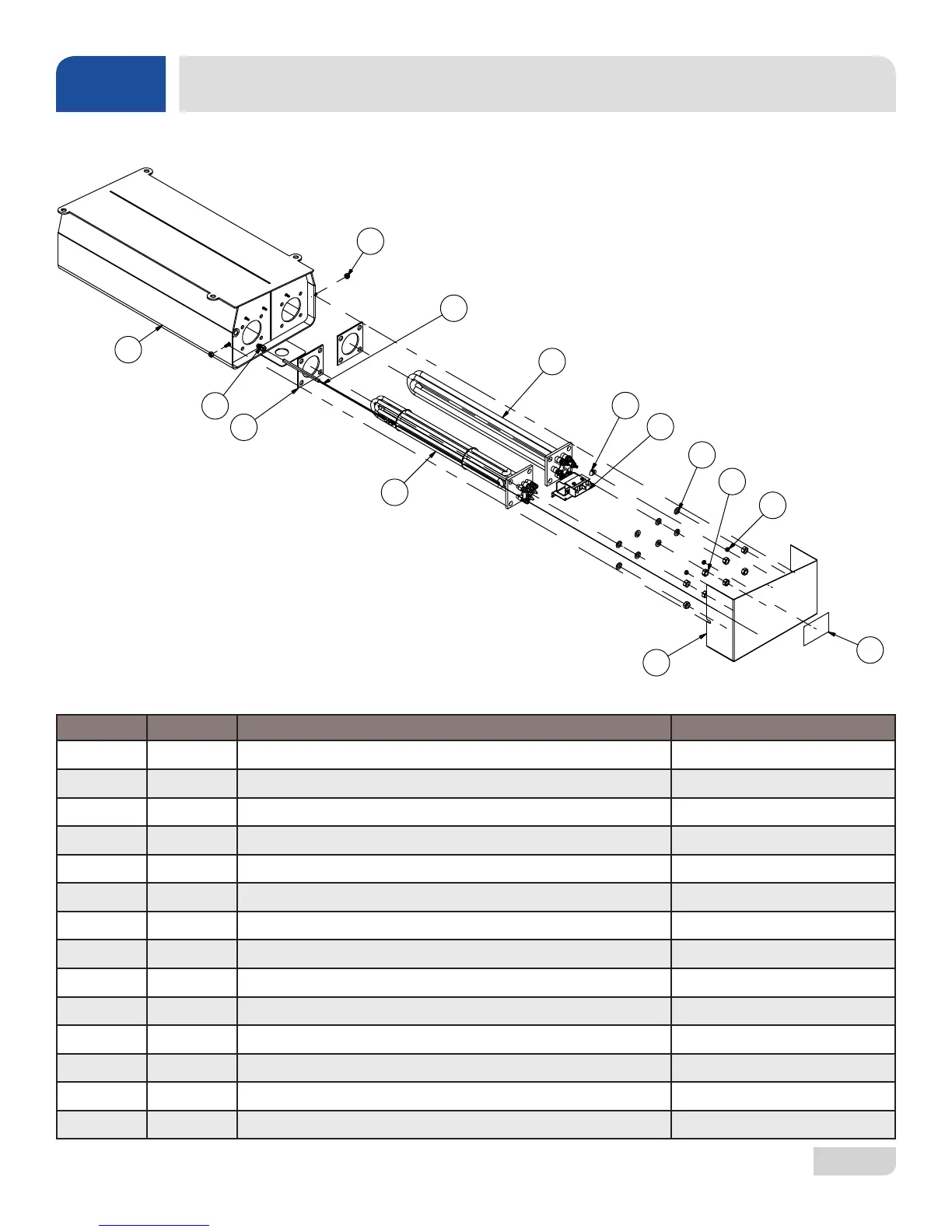

VENTLESS RINSE TANK ASSEMBLY
PARTS

Jackson TempStar Series Specifications

General

Model	TempStar Series
Voltage	208-240V
Number of Wash Cycles	1
Color	Stainless Steel
Category	Dishwasher
Voltage Options	208V, 240V
Capacity	60-80 racks per hour
Water Consumption per Cycle	0.5-1.0 gallons
Water Consumption per Rack	0.84 gallons
