ITEM QTY DESCRIPTION PART NUMBER
1 1 Casing 05700-002-82-57
2 1 Impeller 05700-002-82-50
3 1 Mechanical Seal 05330-002-34-22
4 4 Motor Bolt 05700-002-82-55
5 1 Motor Adapter 05330-002-82-53
6 1 Motor 06105-002-82-60
7 1 Seal Plate 05700-002-82-52
8 1 Case O-ring 05330-002-34-23
9 8 Case Screws 05700-002-82-54
2
1
3
4
5
6
789

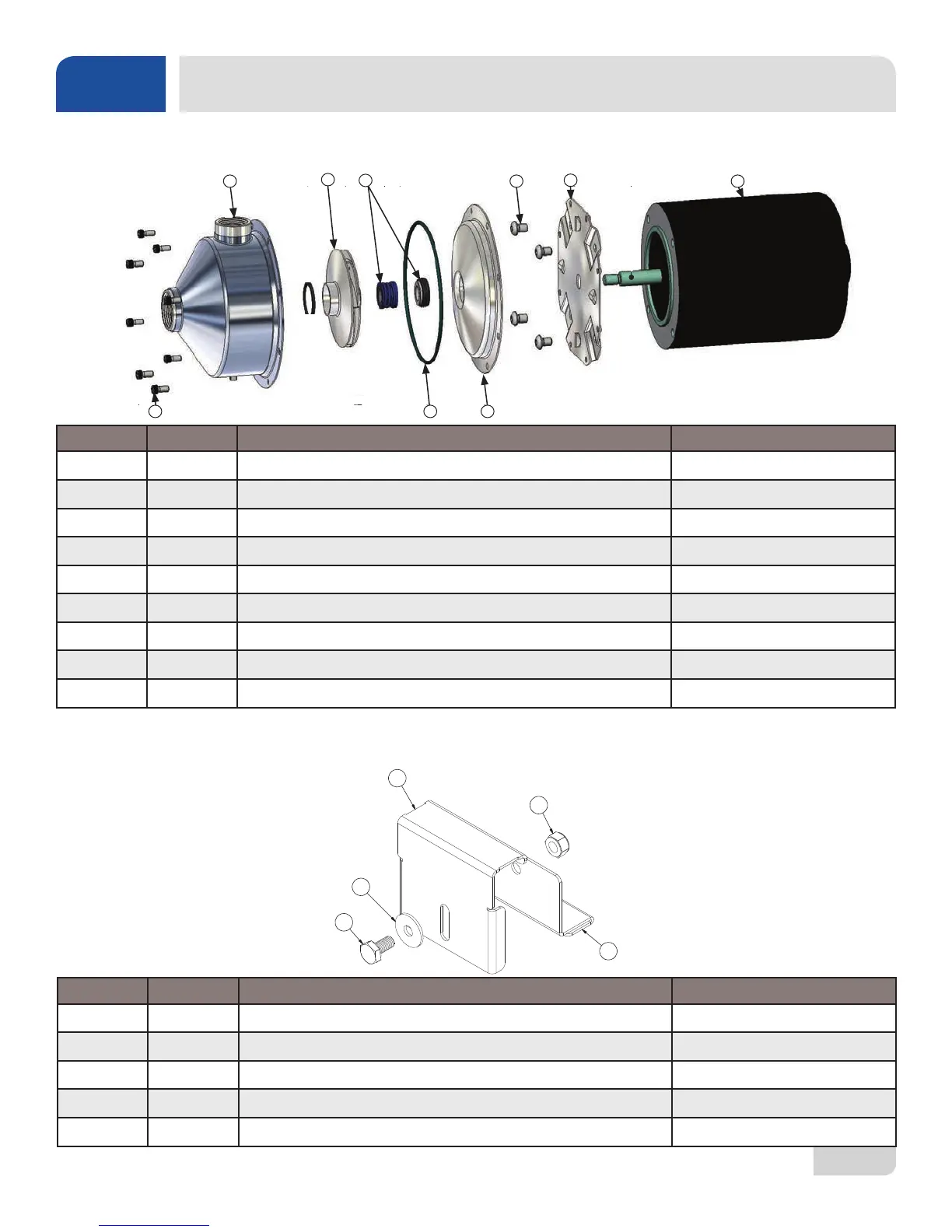

Complete Motor and Pump Assembly
06105-002-01-29
MOTOR & PUMP ASSEMBLY
PARTS
ITEM QTY DESCRIPTION PART NUMBER
1 1 Bracket, Motor Mount Outer 05700-004-13-08
2 1 Bracket, Motor Mount Inner 05700-004-13-07
3 1 Bolt, 1/4-20 x 1/2" 05305-274-02-00
4 1 Washer, 1/4" ID x 3/4" OD 05311-011-76-30
5 1 Locknut, 1/4-20 Hex with Nylon Insert 05310-374-01-00
Complete Motor Mount Assembly
06105-004-13-10
