Jackson TempStar Series User Manual

81
07610-002-23-32-AC

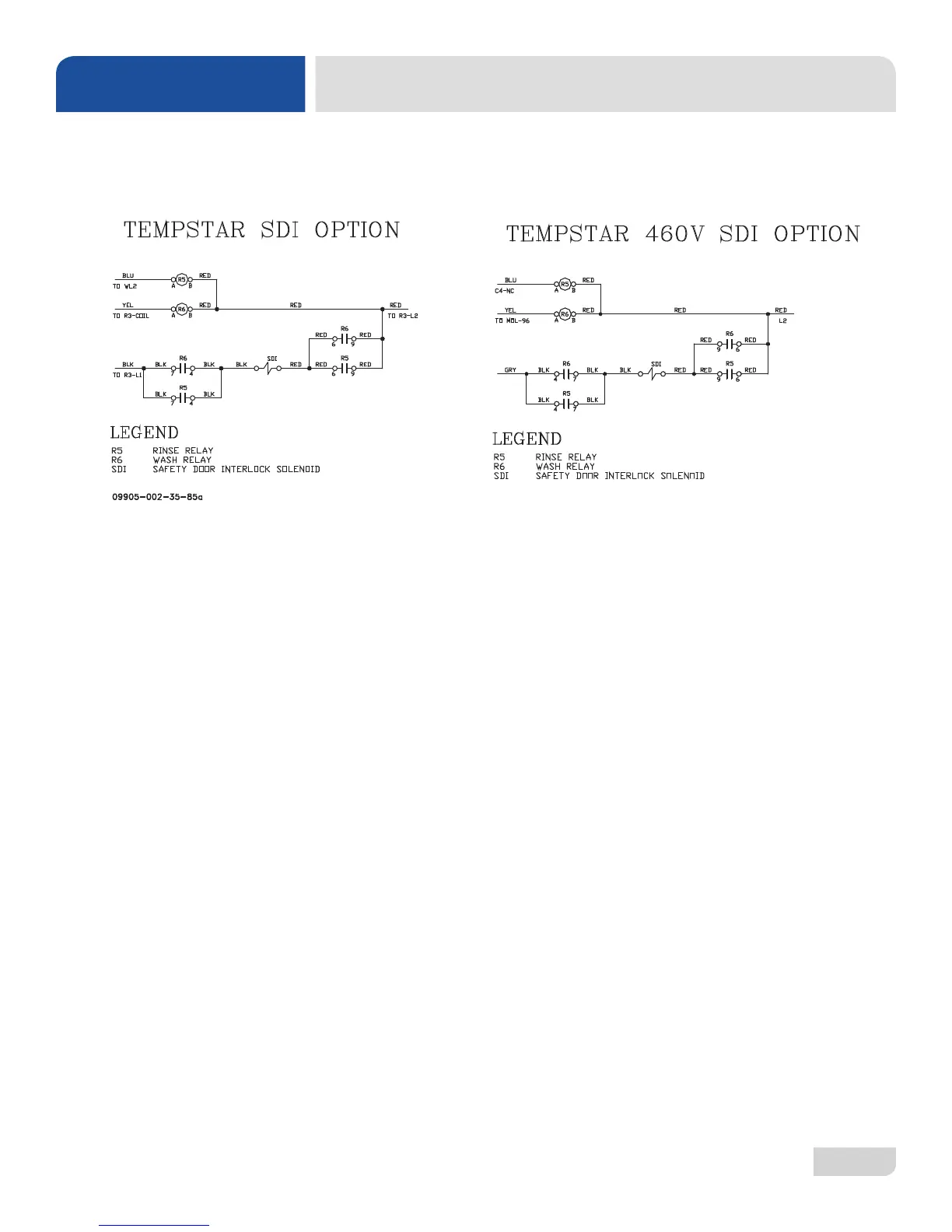

SCHEMATICS
SDI OPTIONS
Door Interlock Box Bottom
05700-001-21-26
Door Interlock Box Cover
05700-001-21-27
Other Door Interlock
components (not shown):
Pipe Clamp (found on the side of the machine)
05700-000-35-05
Solenoid, Electrical Interlock Option
04810-100-61-33
Relay
05945-111-47-51
Latch access hole

Jackson TempStar Series Specifications

General

Model	TempStar Series
Voltage	208-240V
Number of Wash Cycles	1
Color	Stainless Steel
Category	Dishwasher
Voltage Options	208V, 240V
Capacity	60-80 racks per hour
Water Consumption per Cycle	0.5-1.0 gallons
Water Consumption per Rack	0.84 gallons
