Jackson TempStar Series User Manual

83
07610-002-23-32-AC
ADDENDUM

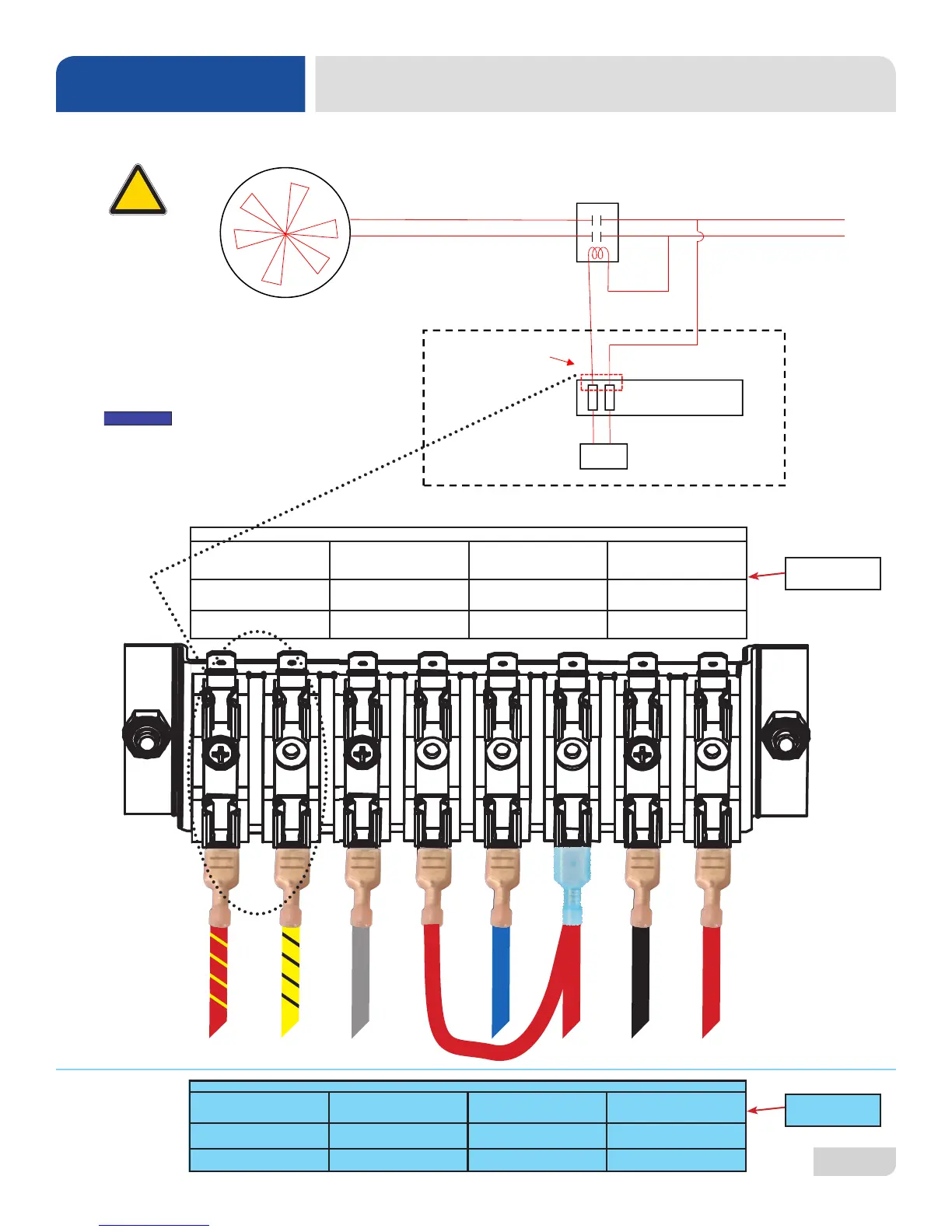

EXTERNAL DEVICE WIRING
TIMER
L1
L2/N
Contactor
(customer provides)
Fuse Block
Exhaust Fan
Customer Connecons
Dish Machine
Fuse Block
RED/YEL YEL/BLK GRY RED BLU RED BLK RED
Wiring Diagram
WARNING: DISCONNECT POWER TO MACHINE BEFORE SERVICING
EXHAUST FAN
CONNECTION
INPUT L1
(EXTERNAL)
OUTPUT TO
EXT. RELAY
CONSTANT VOLTAGE
CONNECTION
RINSE-AID DISPENSER
CONNECTION
DETERGENT
DISPENSER
CONNECTION
MAXIMUM LOAD
1 AMP, 240/120 VAC
LIVE WHEN MACHINE
POWER SWITCH IS ON
LIVE WHEN RINSE
VALVE IS OPEN
LIVE WHEN WASH
PUMP MOTOR IS ON
L1 OUT
L2 OUT
FUSE: 3 AMP SLOW-ACTING
L1 OUT
L2 OUT
FUSE: 3 AMP SLOW-ACTING
L1 OUT
L2 OUT
FUSE: 3 AMP SLOW-ACTING
Do NOT connect
primary load directly to
Fuse Block!
!
CAUTION
NOTICE
Orientation of Fuse Block
and wires might differ
between models. Wire colors
correspond to function.
Timer
Customer
Connections
Dishmachine
L1
L2/N
Exhaust Fan
Contactor
(Customer provides or orders
optional kit - 05700-004-35-35)
WARNING: DISCONNECT POWER TO MACHINE BEFORE SERVICING
EXHAUST FAN
CONNECTION
INPUT L1
(EXTERNAL)
OUTPUT TO
EXT. RELAY
CONSTANT VOLTAGE
CONNECTION
RINSE-AID DISPENSER
CONNECTION
DETERGENT
DISPENSER
CONNECTION
MAXIMUM LOAD
1 AMP, 240/120 VAC
LIVE WHEN MACHINE
POWER SWITCH IS ON
LIVE WHEN RINSE
VALVE IS OPEN
LIVE WHEN WASH
PUMP MOTOR IS ON
X4 OUT
X1 OUT
FUSE: 200 mA SLOW-ACTING FUSE: 200 mA SLOW-ACTING
FUSE: 200 mA
SLOW-ACTING
X4 OUT
X1 OUT
X4 OUT
X1 OUT
208/230 V
Decal
460 V
Decal

Jackson TempStar Series Specifications

General

Model	TempStar Series
Voltage	208-240V
Number of Wash Cycles	1
Color	Stainless Steel
Category	Dishwasher
Voltage Options	208V, 240V
Capacity	60-80 racks per hour
Water Consumption per Cycle	0.5-1.0 gallons
Water Consumption per Rack	0.84 gallons
