Jackson TempStar Series User Manual

15
07610-002-23-32-AC

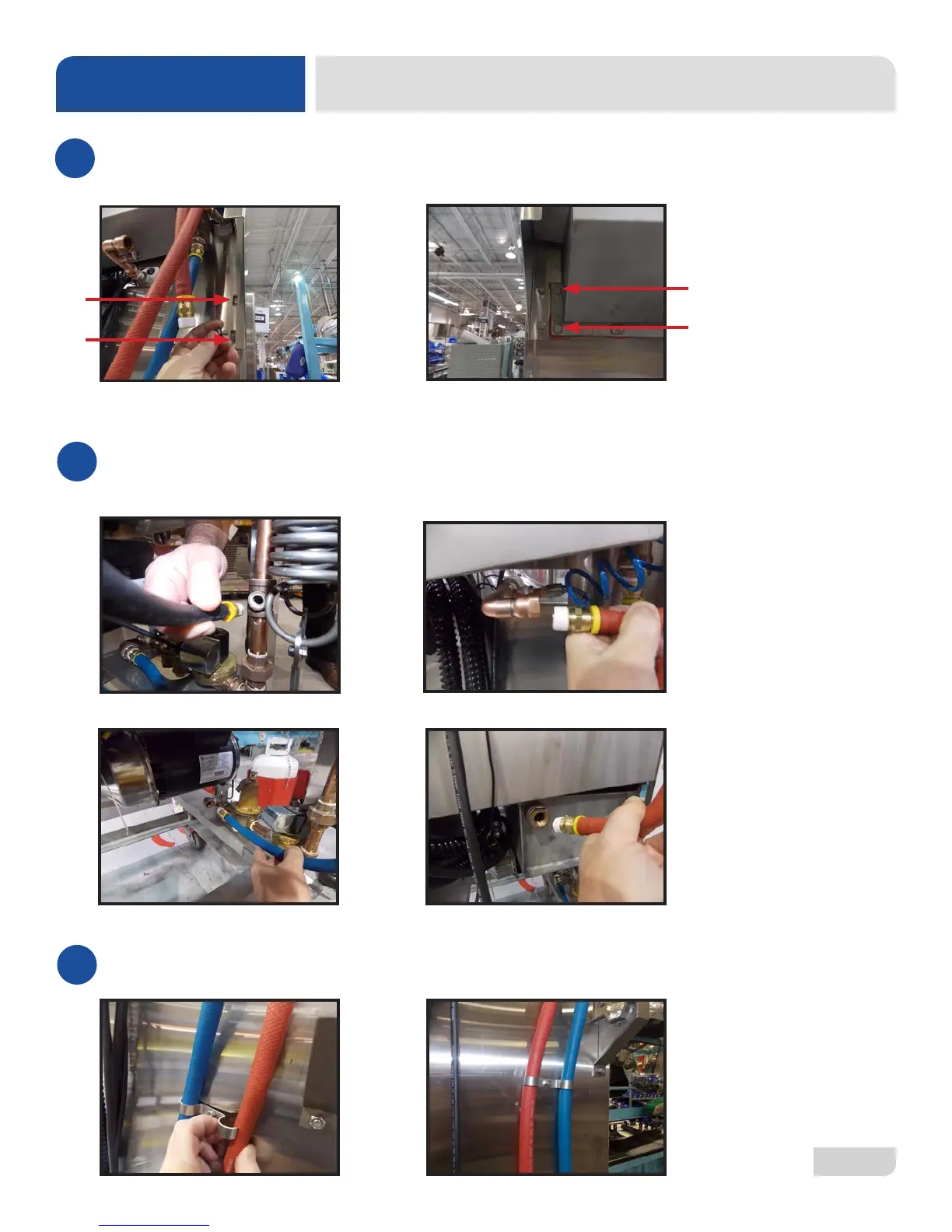

Reinstall the four 1/4-20 bolts that were removed in step 1 with a 7/16 wrench. They insert into the machine on the
right and left corners.
Ventless/Energy Recovery Unit
3
Connect pressure gauge with a 9/16 wrench. Connect the two hoses using an adustable wrench. The hoses are cut-
to-length and will only reach their intended connection point.
A. Connect the Gauge B. Final Rinse Inlet
C. PRV Inlet from Coil D. Booster Outlet
Before moving to the next step, tidy up the hoses by sliding them under the clamps. You might need to loosen the nut
to accomplish this.
4
5
VENTLESS MOUNTING INSTRUCTIONS
INSTALLATION
