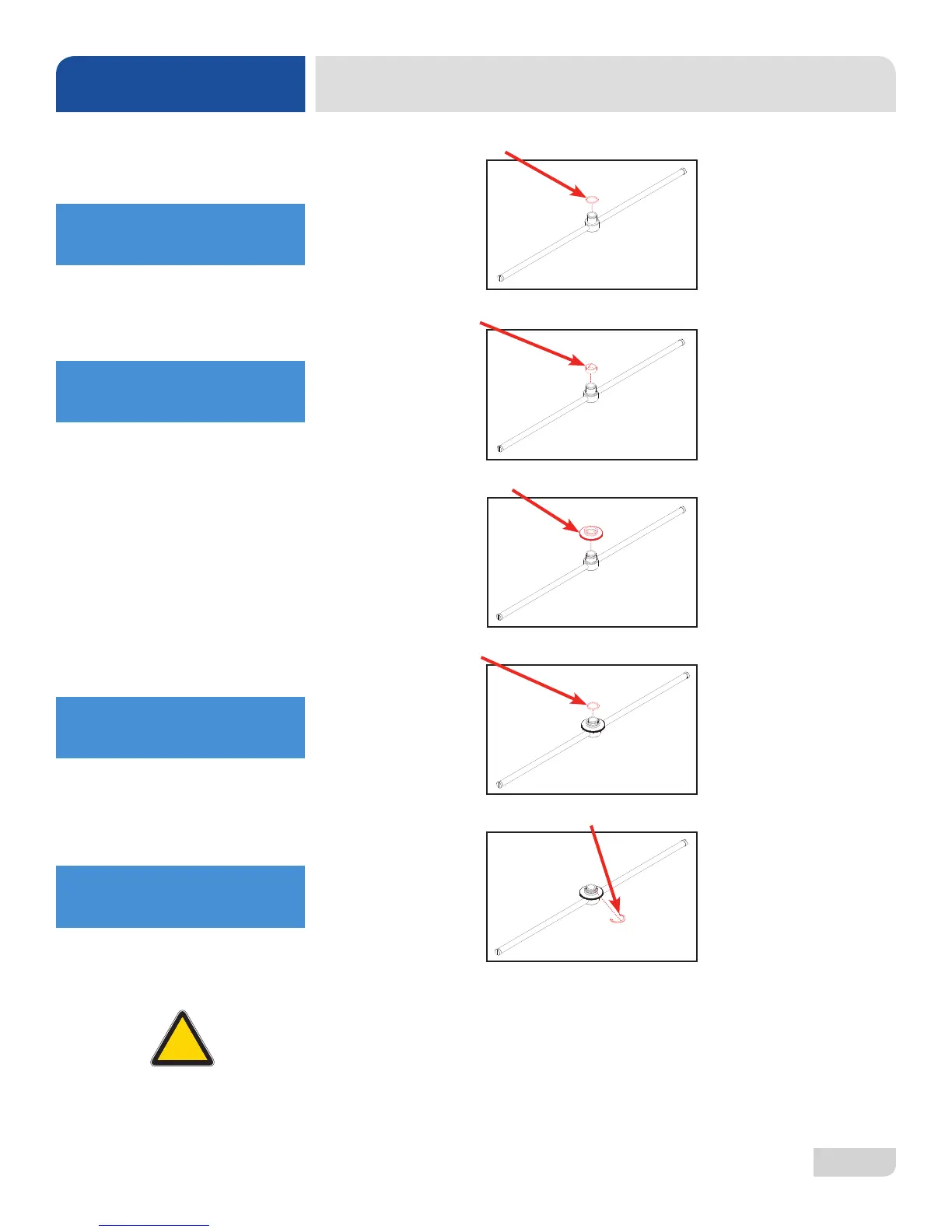

7. Place one of the washers from the kit on the rinse arm.
8. Put the bearing from the kit on top of the washer.
9. Place the rinse head bushing back on the rinse arm.
10. Put the other washer from the kit on top of the rinse head bushing.
11. Push the retaining clip from the kit into place.
12. Screw the rinse arm back on the manifold.
CAUTION! Work performed on dishmachines by unauthorized or unqualified
personnel may void the warranty. Before beginning this or any other maintenance
on a unit under warranty, you should contact a qualified service agency.
RINSE ARM MAINTENANCE
MAINTENANCE
!
CAUTION
BEARING
REPLACEMENT
One of the washers from
the kit is used in this step.
The bearing from the kit is
used in this step.
One of the washers from
the kit is used in this step.
The retaining clip from the
kit is used in this step.
