Jackson TempStar Series User Manual

39
07610-002-23-32-AC

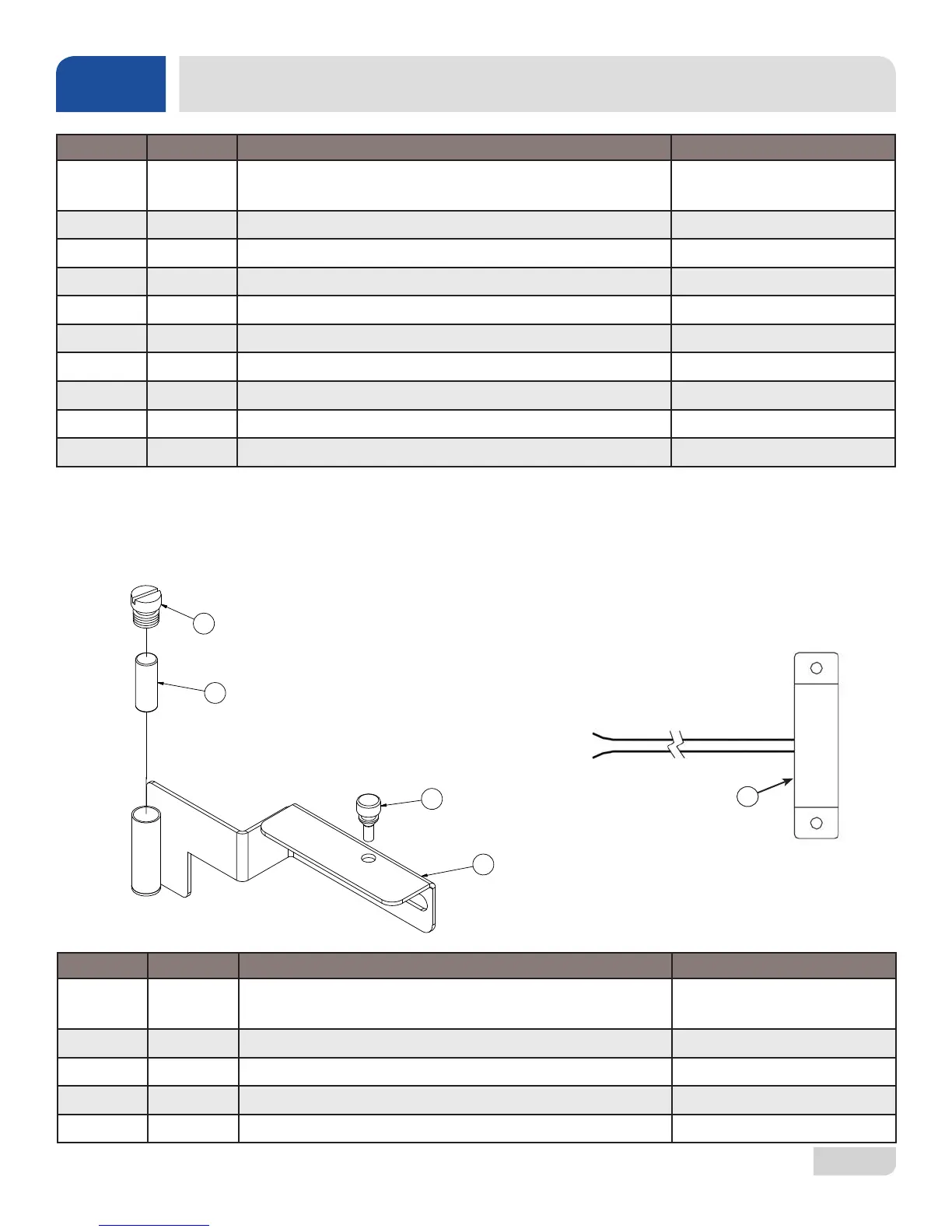

ITEM QTY DESCRIPTION PART NUMBER
1 1
Hood Weldment
Hood Weldment, HH-E
05700-003-52-53
05700-004-49-92
2 2 Hood Support Assembly 05700-004-13-45
3 1 Left Back Inner Door Guide 05700-031-76-34
4 1 Right Back Outer Door Guide 05700-031-76-80
5 1 Right Back Inner Door Guide 05700-031-76-35
6 1 Left Back Outer Door Guide 05700-031-76-33
7 34 Locknut, 1/4-20 Hex with Nylon Insert 05310-374-01-00
8 26 Washer, 1/4-20 05311-174-01-00
9 6 Screw, 1/4-20 x 5/8" Hex 05305-274-24-00
10 20 Bolt, 1/4-20 x 1/2" 05305-274-02-00
HOOD ASSEMBLY
PARTS




ITEM QTY DESCRIPTION PART NUMBER
1 1
Complete Assembly, Bracket, Magnet Mounting
Bracket, Magnet Mounting
05700-004-48-16
05700-004-47-83
2 1 Bumper, Door 05700-004-14-25
3 1 Magnet, N50 05930-003-31-63
4 1 End-cap 05700-011-60-92
5 1 Magnetic Door Switch 05930-003-05-84
DOOR SWITCH AND BRACKET
5

Jackson TempStar Series Specifications

General

Model	TempStar Series
Voltage	208-240V
Number of Wash Cycles	1
Color	Stainless Steel
Category	Dishwasher
Voltage Options	208V, 240V
Capacity	60-80 racks per hour
Water Consumption per Cycle	0.5-1.0 gallons
Water Consumption per Rack	0.84 gallons
