Jackson TempStar Series User Manual

59
07610-002-23-32-AC
2
1
5
4
6
7
3

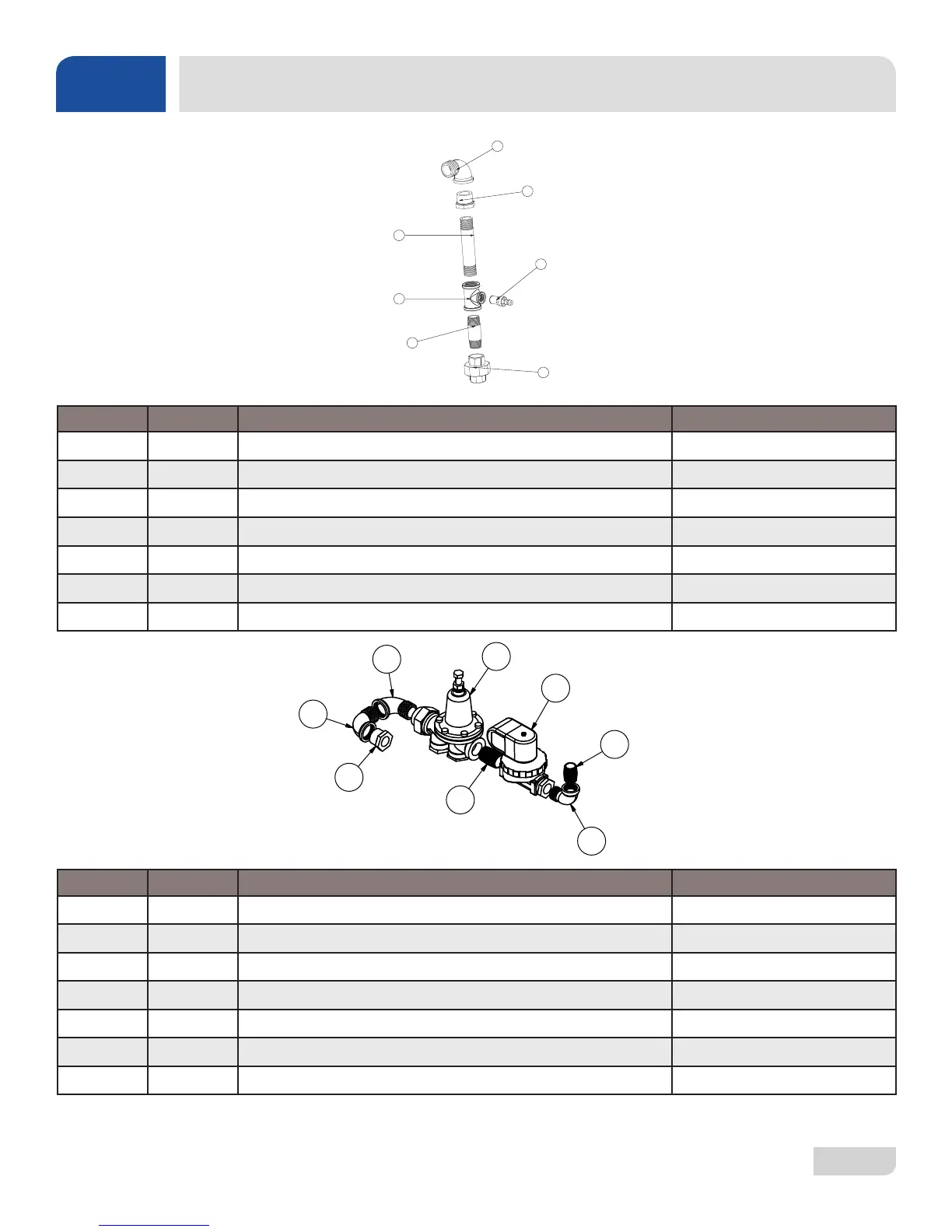

ITEM QTY DESCRIPTION PART NUMBER
1 1 Bushing, Hex 3/4" to 1/2" Brass 04730-002-56-27
2 1 Elbow, 3/4 Street Brass, 90-Degree 04730-206-04-34
3 1 Union, 1/2" x 1/2" Brass 04730-003-62-44
4 1 Tee, 1/2" x 1/2" x 1/4" 04730-002-22-56
5 1 Nipple, Brass 1/2" x 4" 04730-207-04-00
6 1 Fitting, 1/4" Barb, 1/4" Swivel 04730-011-95-41
7 1 Nipple, 1/2" x 2" Brass 04730-207-19-00
1
2
3
2
4
2
5
6
1
2
2
3
4
5
6
7
ITEM QTY DESCRIPTION PART NUMBER
1 1 Bushing, Hex 3/4" to 1/2" Brass 04730-002-56-27
2 3 Elbow, 3/4" Street Brass, 90-Degree 04730-206-04-34
3 1 Pressure Regulator, 3/4" 06685-011-58-22
4 1 Nipple, 3/4" x 1 3/8" Closed Brass 04730-207-34-00
5 1 Valve, 3/4" - 220 V Solenoid 04810-100-03-18
6 1 Nipple, 1/2" Closed Brass 04730-207-15-00
7 Elbow, 90-Degree, 1/2" Street Brass 04730-206-08-00
PLUMBING - HH VENTLESS
PARTS

Jackson TempStar Series Specifications

General

Model	TempStar Series
Voltage	208-240V
Number of Wash Cycles	1
Color	Stainless Steel
Category	Dishwasher
Voltage Options	208V, 240V
Capacity	60-80 racks per hour
Water Consumption per Cycle	0.5-1.0 gallons
Water Consumption per Rack	0.84 gallons
