Jackson TEMPSTAR - Page 46

39
07610-003-61-42-T

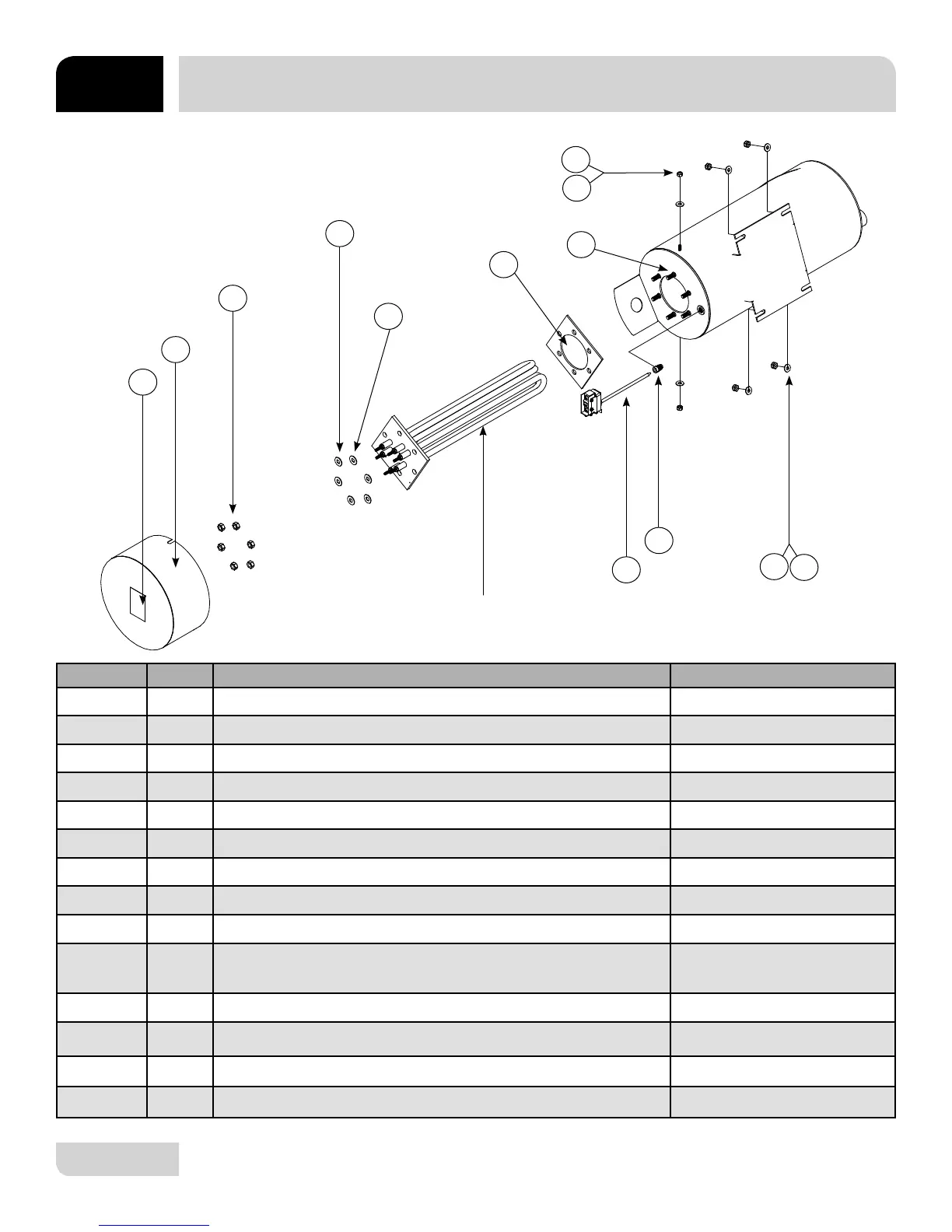

RINSE TANK & ROUND FLANGE HEATER ASSM
PARTS
1
4
5
6
10
11
2
3
9
12
See page entitled
“WASH HEATERS/RINSE HEATERS”.
7
8
13
ITEM QTY DESCRIPTION PART NUMBER
1 1 Booster Tank Weldment 05700-003-58-41
2 2 Locknut, 10-24 with Nylon Insert 05310-374-01-00
3 2 Washer, #10 S/S Flat 05311-174-01-00
4 1 Decal, Warning - Disconnect Power 09905-100-75-93
5 1 Booster Tank Cover Weldment 05700-001-29-30
6 6 Nut, Hex, 5/16"-18 05310-274-01-00
7 4 Locknut, 1/4"-20 with Nylon Insert 05310-374-01-00
8 4 Washer, 1/4" ID, S/S, Flat 05311-174-01-00
91 Thermostat, Rinse 05930-510-03-79
1
Kit, Rinse Thermostat Replacement
(Includes: thermostat, brass fi tting, 2 jumper wires & instructions)
06401-011-66-55
10 6 Washer, 5/16” I.D. 05311-174-01-00
11 1 Gasket, Rinse Heater 05330-200-02-70
12 1 Fitting, 1/4" Imperial Brass 05310-924-02-05
13 1 Washer, 1/4” Split Lock 05311-274-01-00
