PARTS
DOOR INTERLOCK, EXHAUST FAN, TRANSFORMER BOX

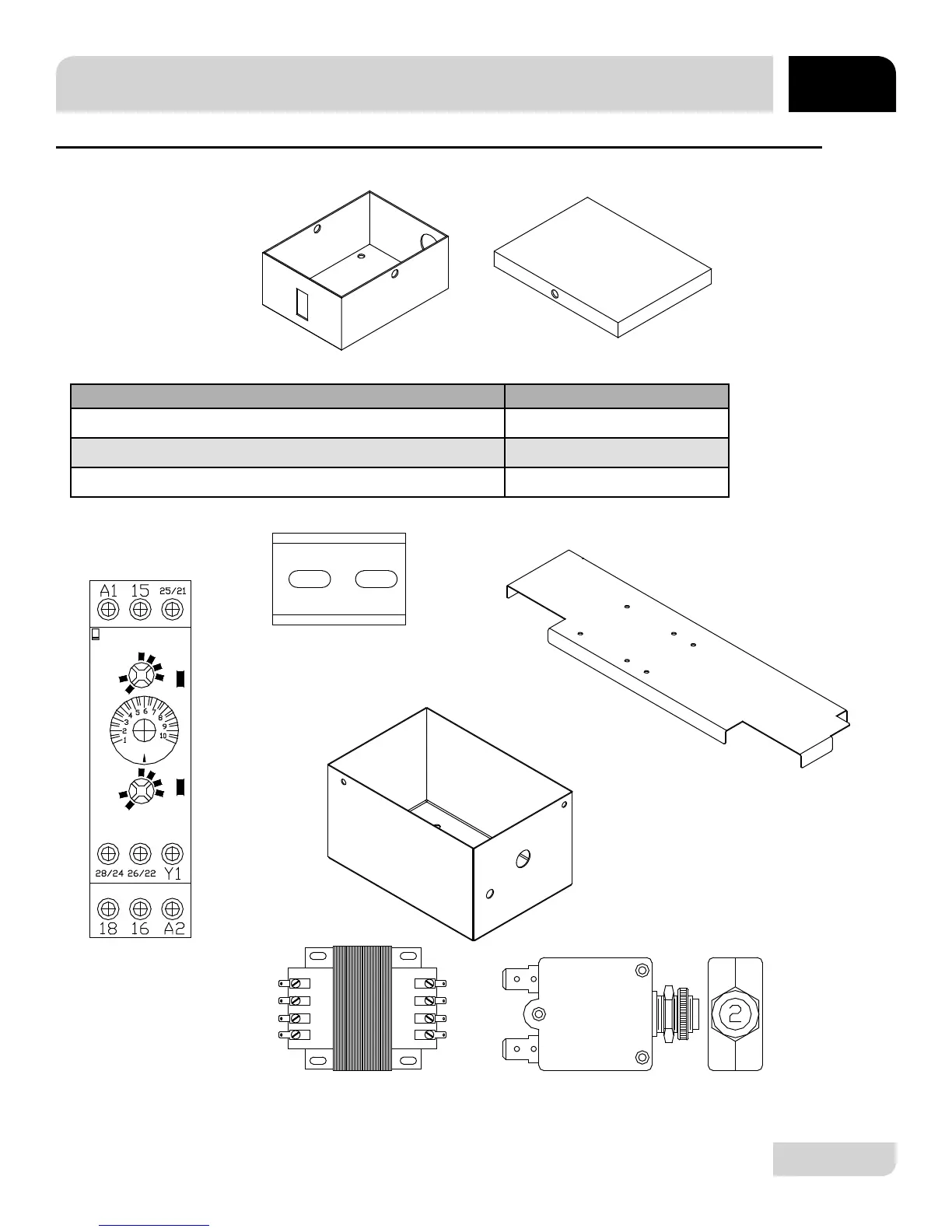

DOOR INTERLOCK (SDI) /EXHAUST FAN CONTROL/TRANSFORMER MOUNTING BOX
Door Interlock Box Bottom
05700-001-21-26
Door Interlock Box Cover
05700-001-21-27
DESCRIPTION PART NUMBER
Pipe Clamp (found on the side of the machine) 05700-000-35-05
Solenoid, Electrical Interlock Option 04810-100-61-33
Relay 05945-111-47-51
OTHER DOOR INTERLOCK (SDI) COMPONENTS (NOT SHOWN):
Transformer Mounting Bracket
05700-031-62-82
Exhaust Fan Control
2” Din Rail
05700-002-36-09
415/440/460V Transformer
05950-111-65-93
380V Transformer
05950-111-64-17
Exhaust Fan Control
Delay Timer
05945-011-65-44
Transformer Mounting Box
05700-002-10-01
Transformer Mounting Box Top
(not shown)
05700-000-78-53
2 Amp Circuit Breaker
05925-111-64-18
