Jackson TEMPSTAR - Incoming;Outlet Plumbing Assembly

47
07610-003-61-42-T
PARTS

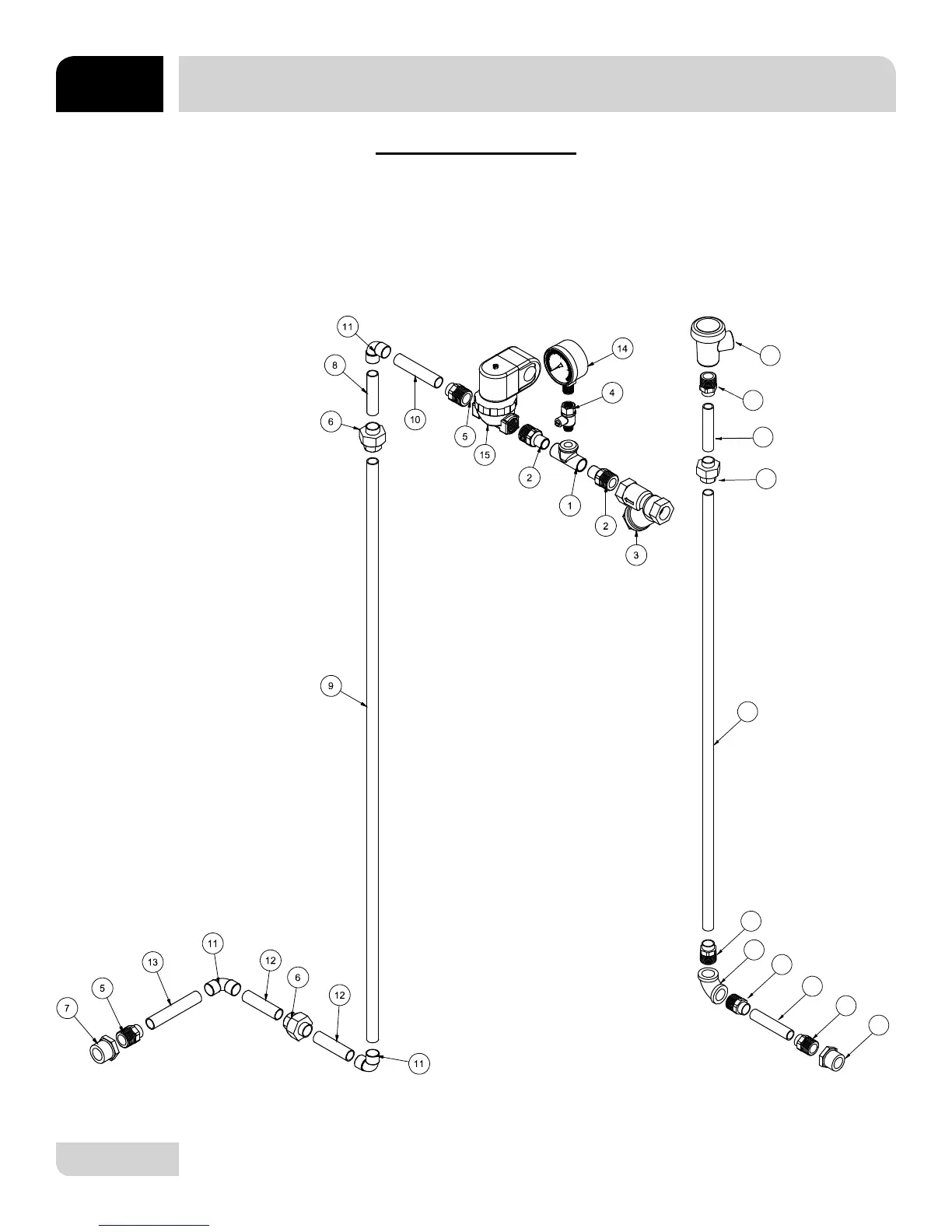

INCOMING/OUTLET PLUMBING ASSEMBLY
16
5
17
6
18
19
17
7
5
5
5
TEMPSTAR Outlet Plumbing
(Complete assembly)
05700-003-60-75
TEMPSTAR Incoming Plumbing
(Complete Assembly)
05700-003-60-74
Tube Length Chart
Item # Length (inches)
8 1/2” x 2 1/2” Long
9 1/2” x 37” Long
10 1/2” x 3” Long
12 1/2” x 2 1/8” Long
13 1/2” x 3 1/2” Long
19 1/2” x 30 3/4” Long
Y - STRAINER OPTION
