Jackson TEMPSTAR - Drain Quench Assembly

64
07610-003-61-42-T
PARTS

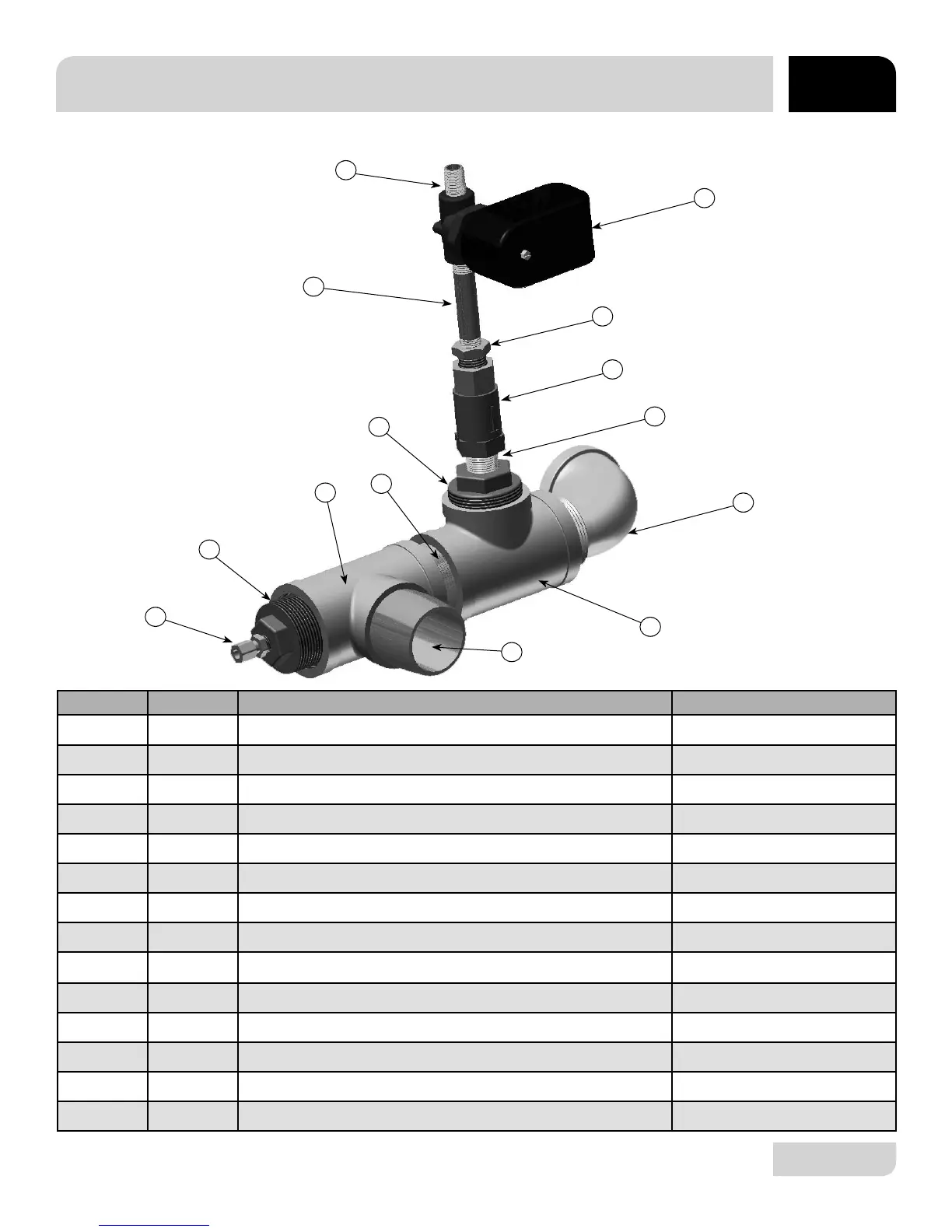

DRAIN QUENCH ASSEMBLY
ITEM QTY DESCRIPTION PART NUMBER
1 1 Nipple, 1/4 NPT x 3 Brass 04730-004-08-07
2 1 Nipple, 1/4 NPT x 3 Brass 04730-004-08-07
3 1 Reducer, 1-1/2 x 1/2 Hex Brass 04730-002-55-75
4 1 Nipple, 1-1/12 Brass Close 04730-207-40-00
5 1 Tee, 1-1/2 Brass 04730-011-69-93
6 1 Reducer, 1-1/2 x 1/4 Hex Brass 04730-002-55-76
7 1 Union,1/4 Modifi ed 05700-001-16-52
8 1 Nipple, 1-1/12 Brass Close 04730-207-40-00
9 1 Tee, 1-1/2 Brass 04730-011-69-93
10 1 Elbow, 1-1/2 NPT, Female 04730-206-32-00
11 1 Nipple, 1/2 Close Brass 04730-207-15-00
12 1 Valve, Check 1/2 04820-002-55-77
13 1 Reducer, 1/2 x 1/4 Brass 04730-003-62-16
14 1 Solenoid Valve, 1/4, 240V 04810-002-31-09
1
2
14
13
12
11
10
9
4
5
6
7
8
3
