Jackson TEMPSTAR - Tempstar S (Universal Timer) 208 - 230 V, 60 Hz, Single;Three Phase

74
07610-003-61-42-T
TEMPSTAR S 208-230V, 50/60 HZ, 1 & 3 PHASE
SCHEMATICS
TOP MOUNT UNIVERSAL TIMER
TEMPSTAR STEAM
TEMPSTAR STEAM

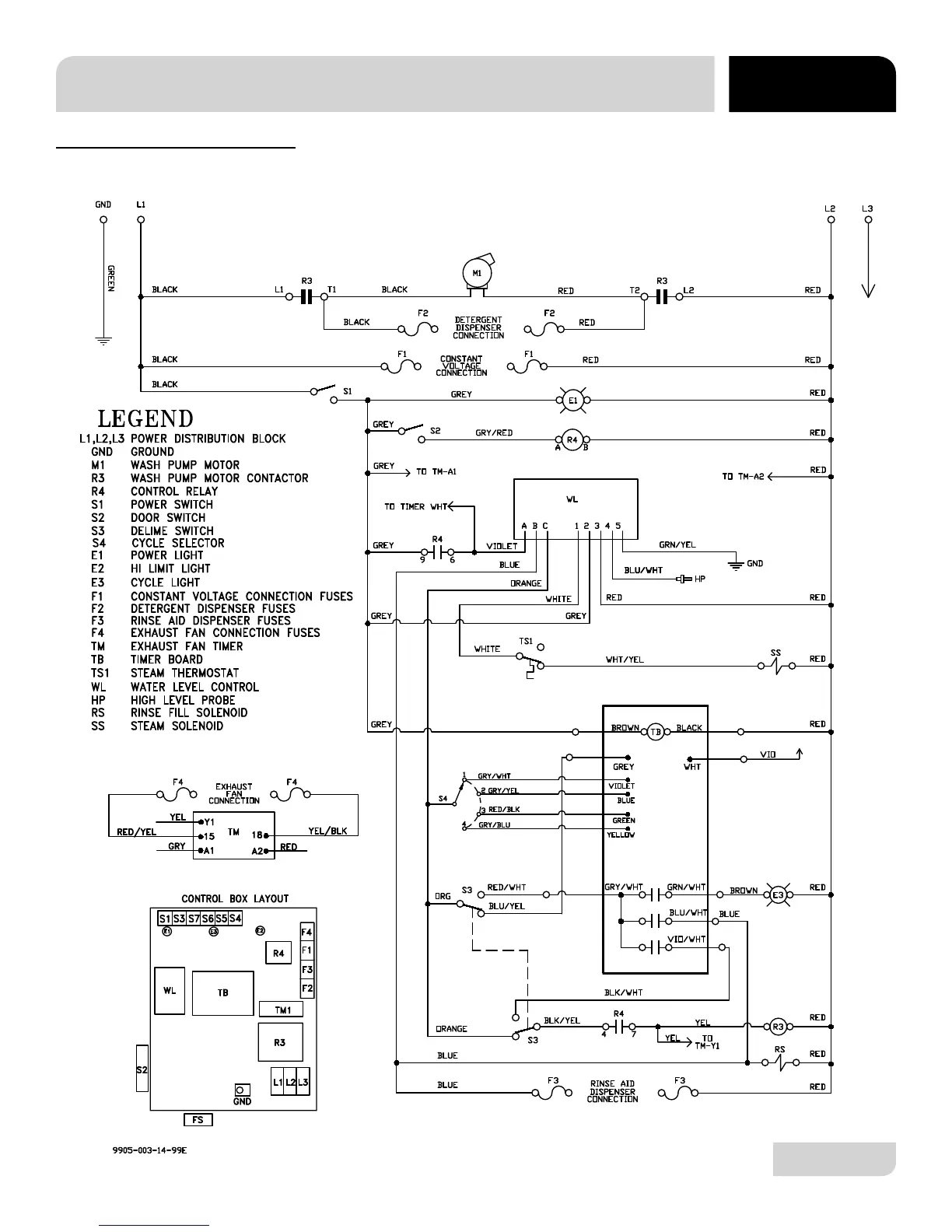

ELCTRICAL DIAGRAM
ELCTRICAL DIAGRAM
208/230 VOLT 50/60 Hz 1/3 PHASE
208/230 VOLT 50/60 Hz 1/3 PHASE
