PARTS

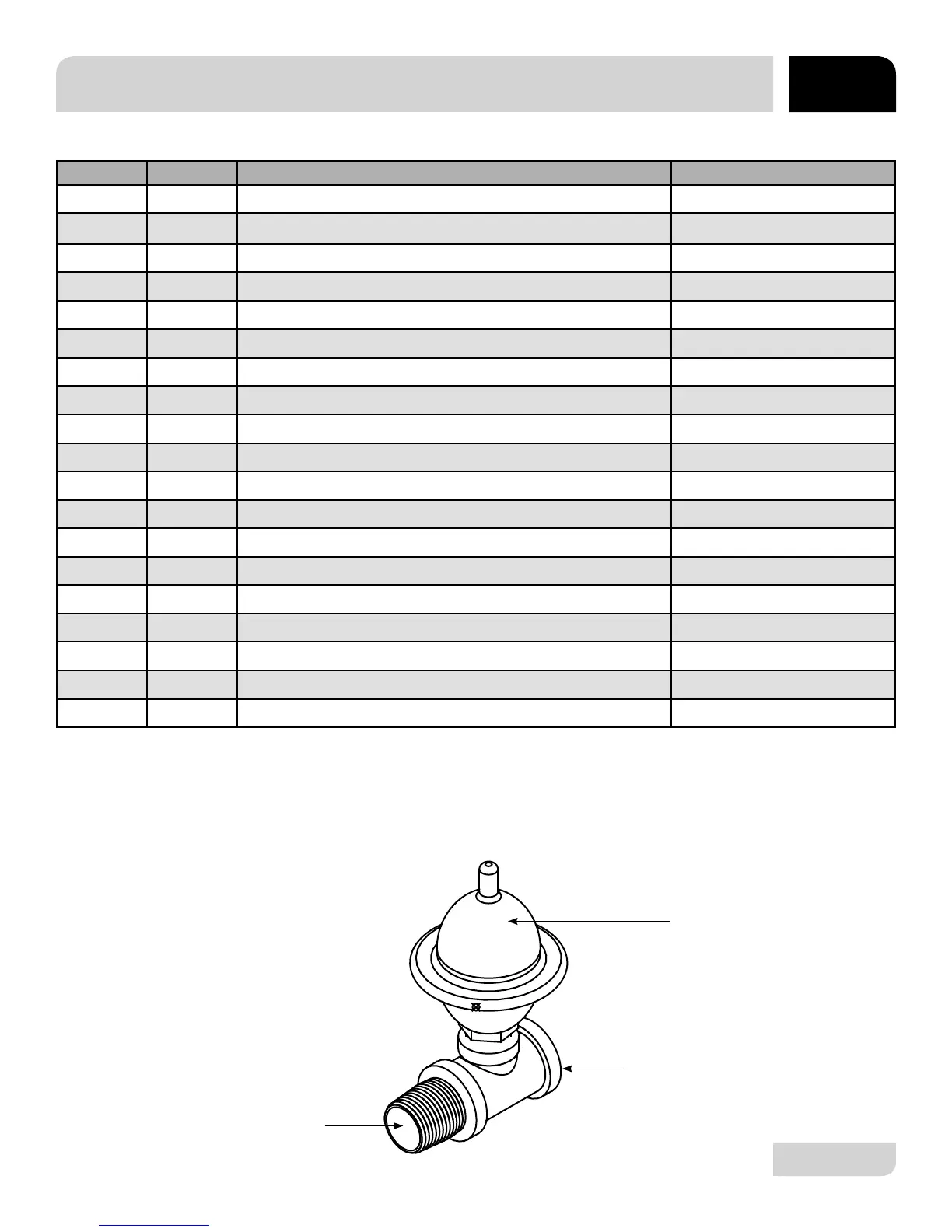

INCOMING/OUTLET PLUMBING ASSEMBLY
ITEM QTY DESCRIPTION PART NUMBER
1 1 Fitting, Tee, 1/2” x 1/2” x 1/4” 04730-411-25-01
2 2 Adapter, 1/2” MNPT x CU Male 04730-011-59-53
3 1 Strainer, Y 1/2” 04730-217-01-10
4 1 Vave, Ball Test Cock 1/4” Bronze 04810-011-72-67
5 6 Adapter, 1/2” 04730-401-03-01
6 3 Union, 1/2” 04730-412-05-01
7 1 Bushing, HEX 3/4 MNPT-1/2 FNPT Brass 04730-002-56-27
8 3 F-Tube, Copper 1/2” x 2.5” 05700-002-17-38
9 2 F-Tube, Copper 1/2” x 37” 05700-003-60-80
10 1 F-Tubing, Copper 1/2” x 3” 05700-001-05-21
11 3 Elbow, 1/2" CU x CU, 90B 04730-406-01-01
12 2 F-Tube, Copper 1/2” x 2.406” 05700-003-60-79
13 1 F-Tube, Copper 1/2” x 3.5 05700-003-60-78
14 1 Gauge 0-100# Pressure 06685-111-88-34
15 1 Valve, 1/2” 208-240 Red 04810-100-09-18
16 1 Vacuum Breaker, 1/2" NPT 04820-003-06-13
17 1 Adapter, Male 04730-401-03-01
18 1 F-Tube, Copper 1/2” x 30.75” 05700-003-60-81
19 1 Elbow, 1/2” NPT 90 Brass 04730-011-42-96
WPRK KIT OPTION
Y - STRAINER & PRESSURE REULATOR OPTIONS
Water Arrestor, 1/2”
06685-100-05-00
Tee, 1/2” x 1/2” x 1/2”
04730-211-27-00
Nipple, 1/2” NPT, Close, Brass
04730-207-15-00
