PARTS

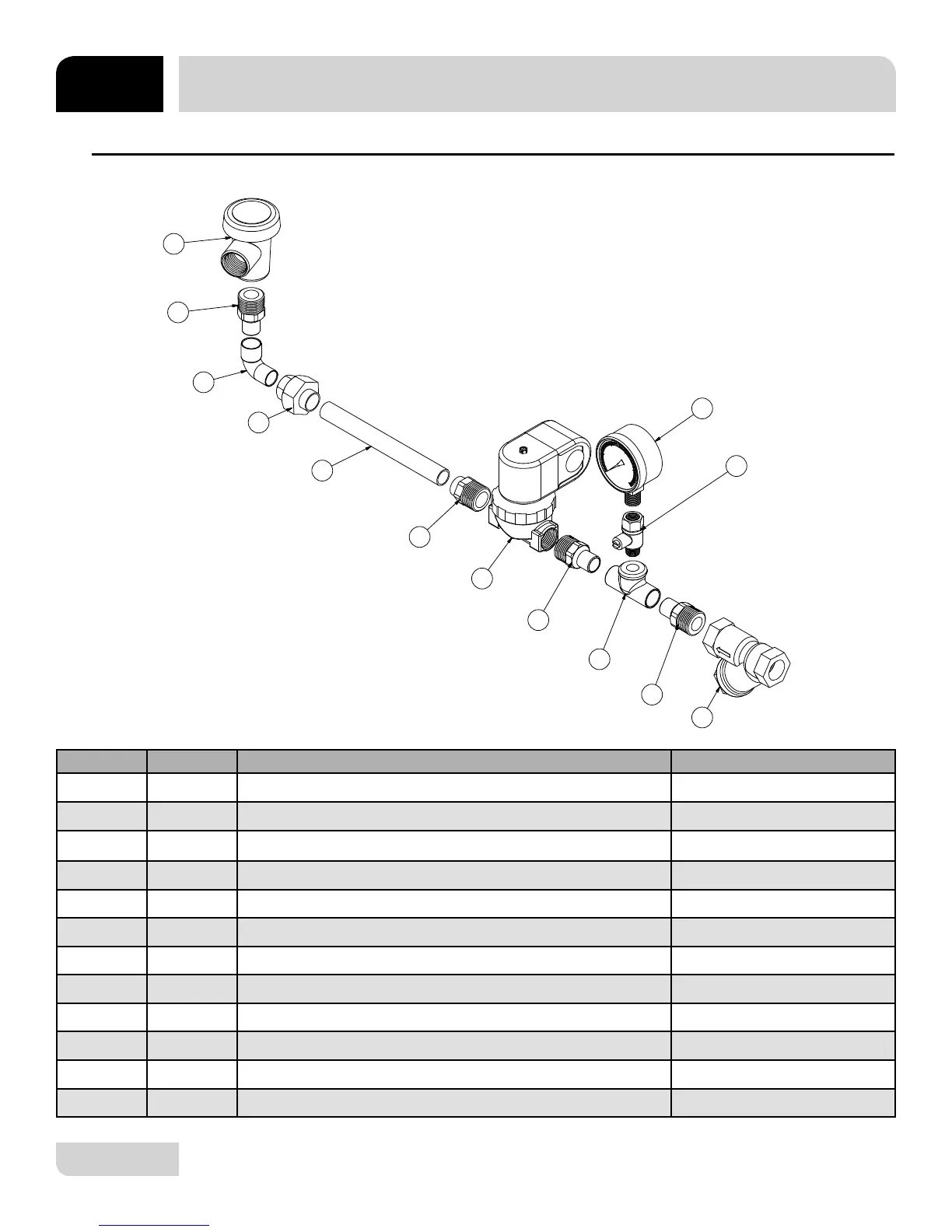

INLET PLUMBING
5
7
2
1
2
3
6
4
8
9
10
11
2
ITEM QTY DESCRIPTION PART NUMBER
Complete Assembly 05700-003-60-73
1 1 Tee, Brass, 1/2" x 1/2" x 1/4" NPT 04730-411-25-01
2 3 Adapter, 1/2” MNPT x Cu Male 04730-011-59-53
3 1 Strainer, Y 1/2” 04730-217-01-10
4 1 Valve, Ball, Bronze, 1/4" NPT 04810-011-72-67
5 1 Adapter, 1/2” Male/Cu to MSPS 04730-401-03-01
6 1 Pressure Gauge, 0-100 PSI 06685-111-59-66
7 1 Valve, Solenoid, 1/2" NPT 208-240V 04810-100-09-18
8 1 Vacuum Breaker, 1/2" NPT 04820-003-06-13
9 1 Tube, Copper 1/2” x 5.75 05700-002-91-03
10 1 Union, 1/2” 04730-412-05-01
11 1 Elbow, 1/2” 90º Cu to MSPS 04730-406-32-01
Y - STRAINER OPTION TEMPSTAR LT & TEMPSTAR NB INCOMING PLUMBING ASSEMBLY
