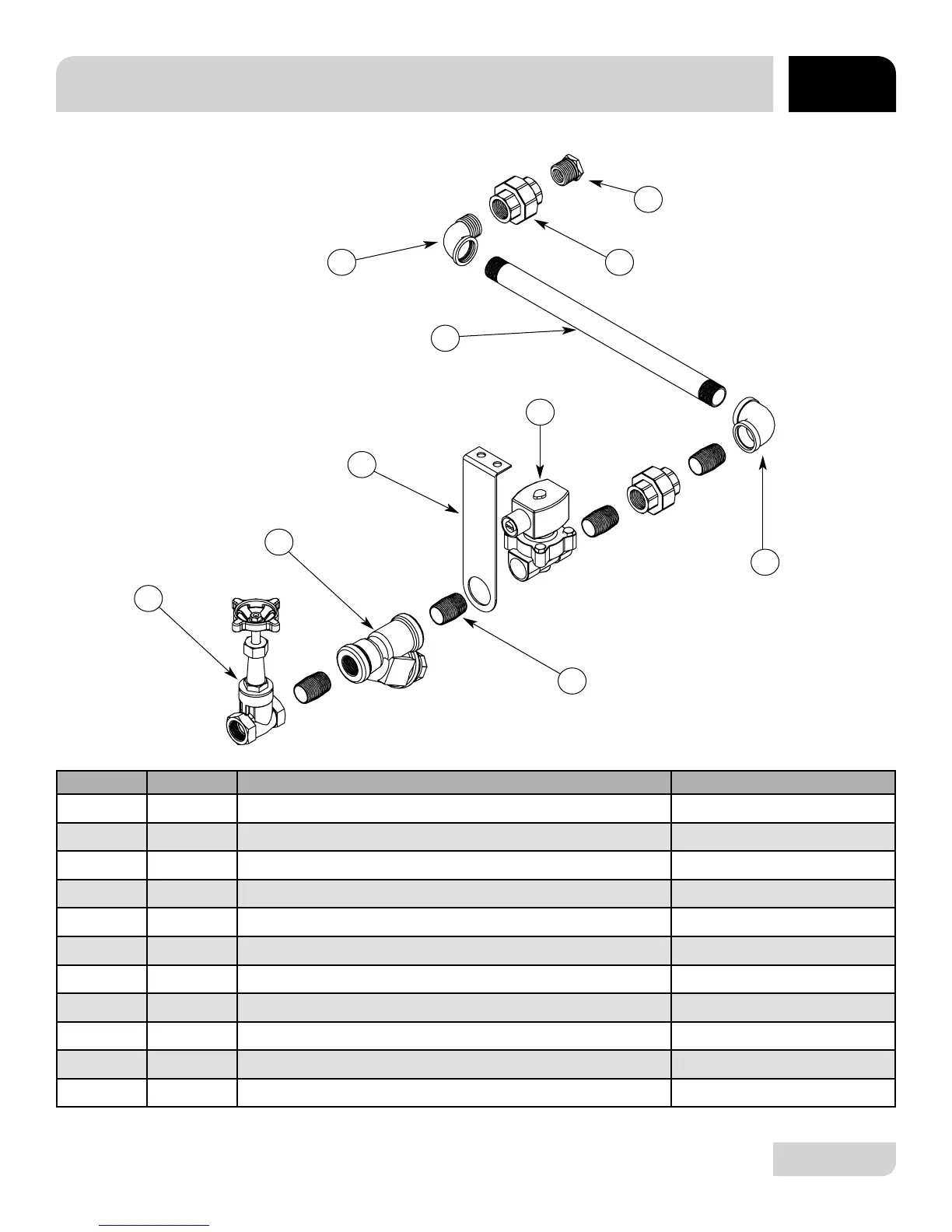

INCOMING STEAM PLUMBING ASSEMBLIES
PARTS
ITEM QTY DESCRIPTION PART NUMBER
Complete Assembly 05700-002-01-60
1 1 Bushing, Reducing, 3/4’’ to 1/2’’ 04730-911-02-34
2 2 Union, 3/4’’ NPT, Black Iron 04730-912-01-01
3 1 Elbow, 90B 3/4” NPT Black Iron 04730-906-10-34
4 4 Nipple, Close, 3/4’’ NPT, Black Iron 04730-907-01-00
5 1 Gate Valve, 3/4” NPT 04820-100-19-00
6 1 Y-Strainer, 3/4” NPT Black Iron 04730-217-01-32
7 1 Bracket, Steam Plumbing Support 05700-002-01-63
8 1 Solenoid Valve, Steam Plumbing, 220V 04820-002-01-56
9 1 3/4” NPT Black Iron Pipe 05700-002-20-83
10 1 Elbow, 3/4” 90° Street 04730-011-87-37
